The SCSI hard disk subsystem System components and expansions
A26361-K646-Z102-1-7619 47

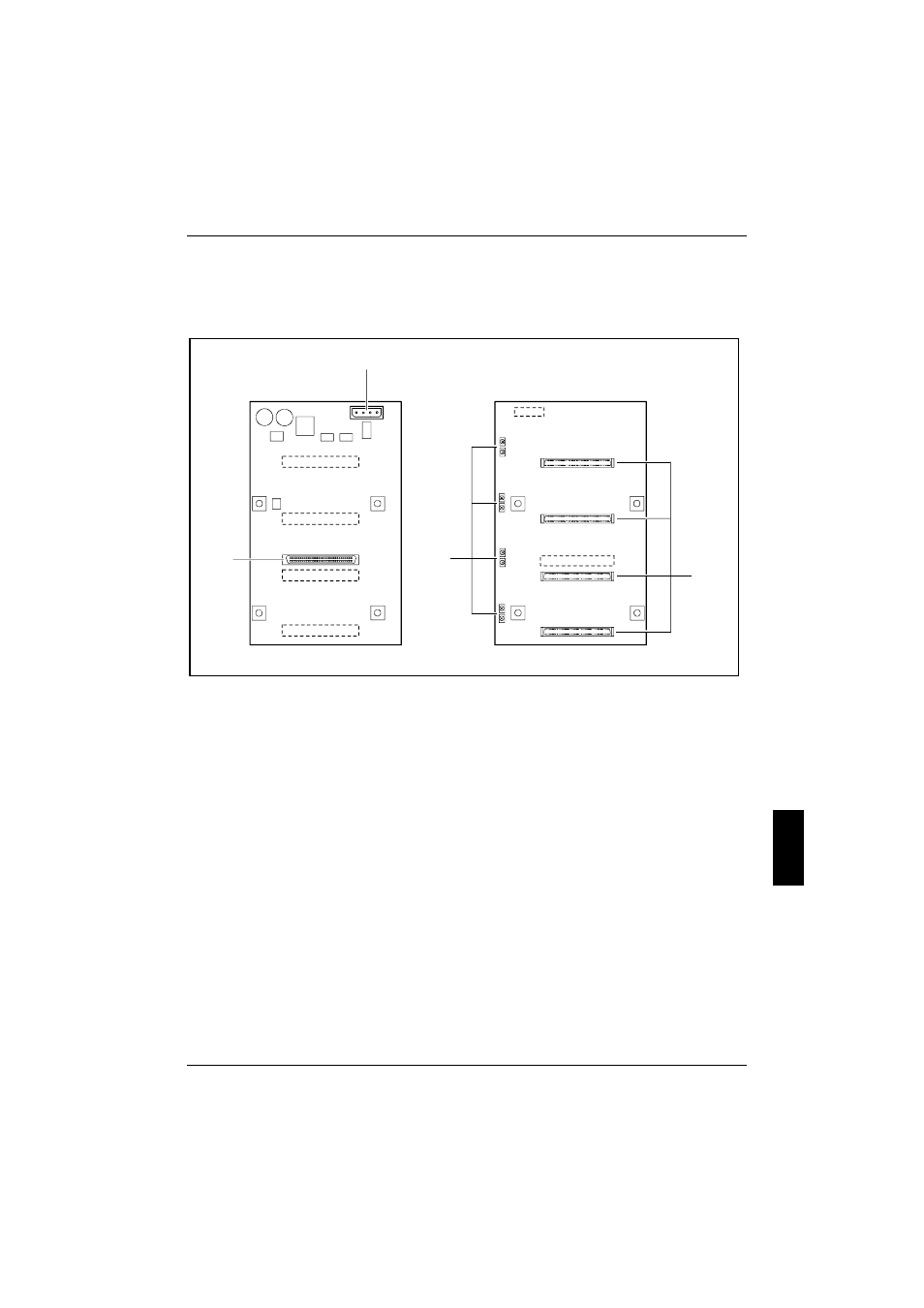

8.1.4 SCSI platter for four 1-inch hard disk slide-in modules
The hot-replace SCSI platter connects up to four 1-inch hard disk slide-in module with the SCSI
controller and supports Ultra3 Wide SCSI (U160 SCSI).
SCSI ID 3
SCSI ID 1
SCSI ID 0
SCSI ID 2
1
4
2
3
1 = SCSI input (SCSI controller)
2 = Power supply 3 = Drive indicators
4 = SCA ports (hard disk carriers)
Each hard disk carrier is assigned to two drive indicators. The upper indicator (green) shows the
drive activity. The lower indicator (orange) shows a hard disk error. However, a hard disk error can
only be indicated when the drive is operated on a disk array controller.
The SCSI bus is terminated and the hot-replace control realized on the platter.
