Installing rack-server in/removing from rack
Installation
A26361-K646-Z102-1-7619
15
3.5.1 Mounting the slide-in module
1
2
Ê

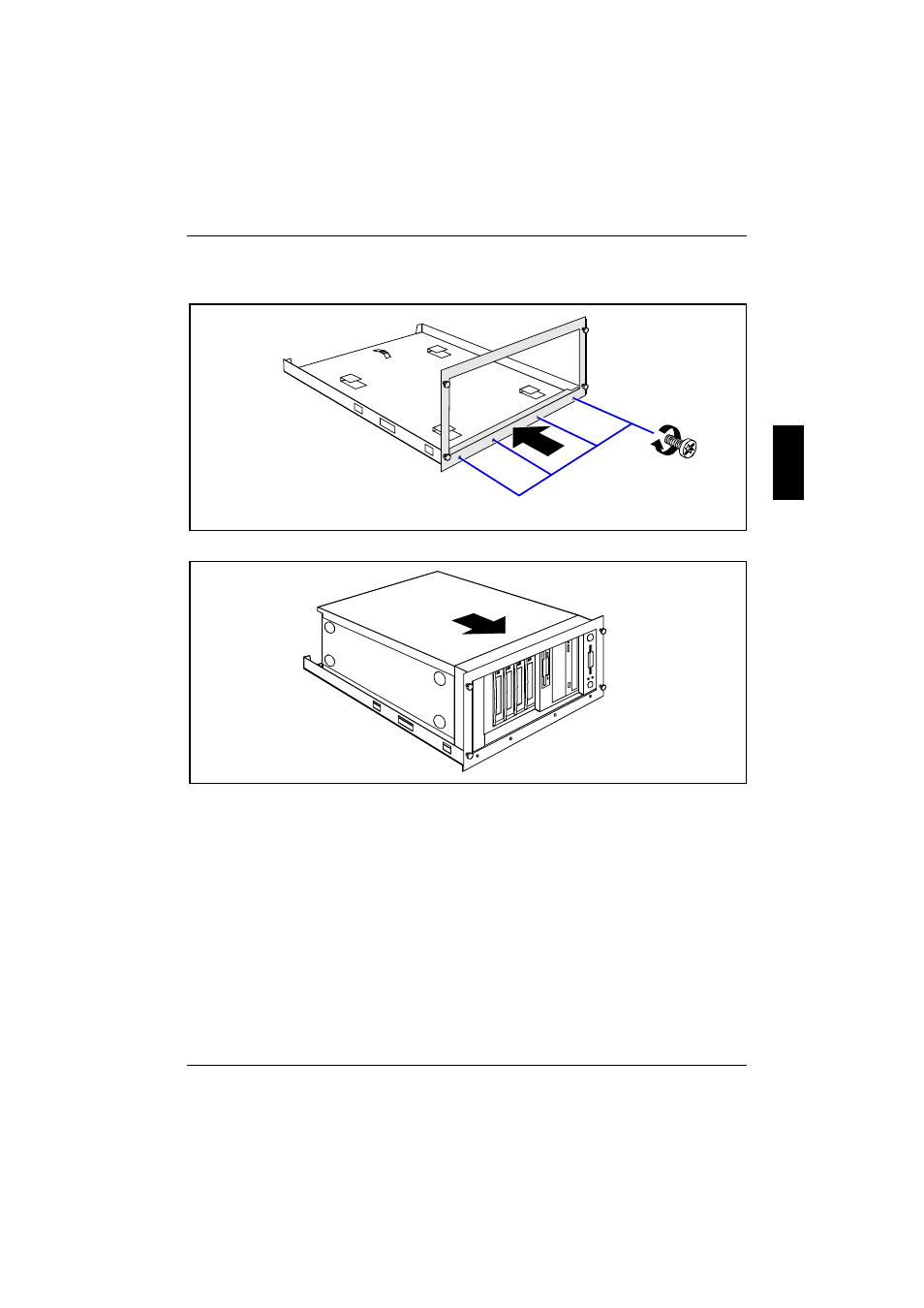

Screw together the front panel and the bottom tray to form a slide-in module (1 + 2).
Ê
Place the server in the slide-in module with the right side facing downward and somewhat
offset toward the rear.
