HDMI IN
HEADPHONE
RS232
AUDIO OUT
SERVICE
LAN
OPS PORT
NOTE:
• Connect to HDMI input
Port for adding OPS module
Making Connections
The front HDMI interface allows digital audio and video signals to
be transmitted using a single cable without compression. HDMI supports
multi-channel digital audio, and can be connected to external devices
with HDMI port.
Audio out to Headphones
Serial interface, used for mutual transfer of data between devices
Connect to power amplifier via coaxial port, then connect power amplifier to speaker
For factory commissioning, don’t insert any cables
Standard RJ45 Internet connection interface
•
Connect to a USB interface device
The total current of all the USB output ports of the device when connected to external devices at the same time
mustn ’t exceed 1000mA, or else the device failure caused by overcurrent isn’t covered by the warranty.
This device is connected to wireless keyboard and mouse devices. If there is any insensitivity phenomenon during
use, you can try to change the wireless receiver to another USB port, or use a USB extension cord to connect
the wireless receiver in order to enhance the receiving range.

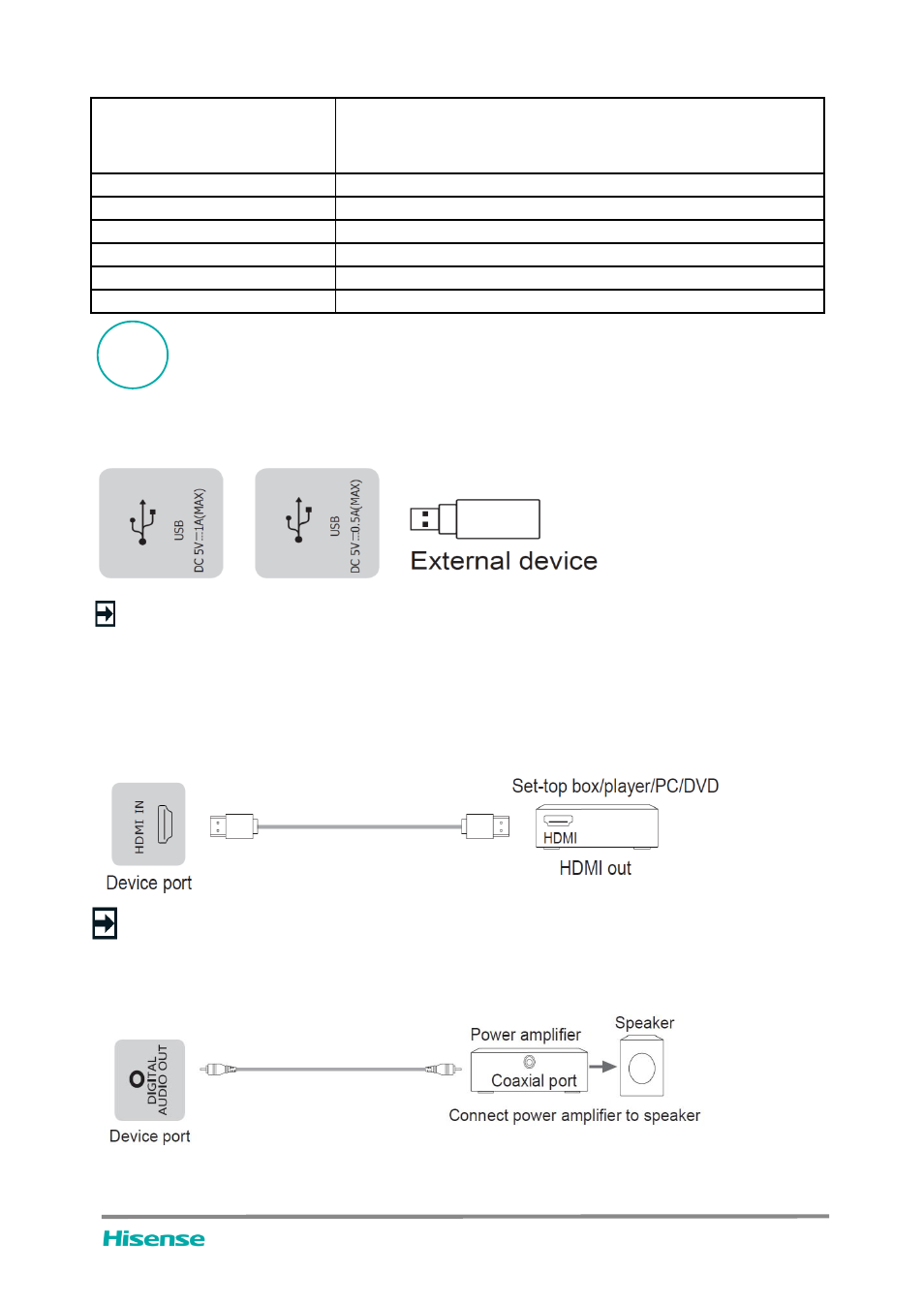

Connect the HDMI input connector of the device to the HDMI output port of an external device.
NOTE:
The supported signal formats of the HDMI port refer to Specifications.
• Connect to external audio device
Digital audio output: connect to power amplifier via coaxial port, then connect power amplifer to speaker.
