REMARK:
1. The No.1, 2, 3...18 , Represent the sequence number of Cabinet;
2. The 1-1, 1-2, 1-3 …1-12 represent the module sequence number on Cabinet 1.
For Example:
1-1 corresponds to the upper left corner of the Cabinet 1 ；
1-4 corresponds to the upper right corner of the Cabinet 1 ；
1-9 corresponds to the lower left corner of the Cabinet 1, and 1-12 corresponds to the lower right
corner of the Cabinet 1.

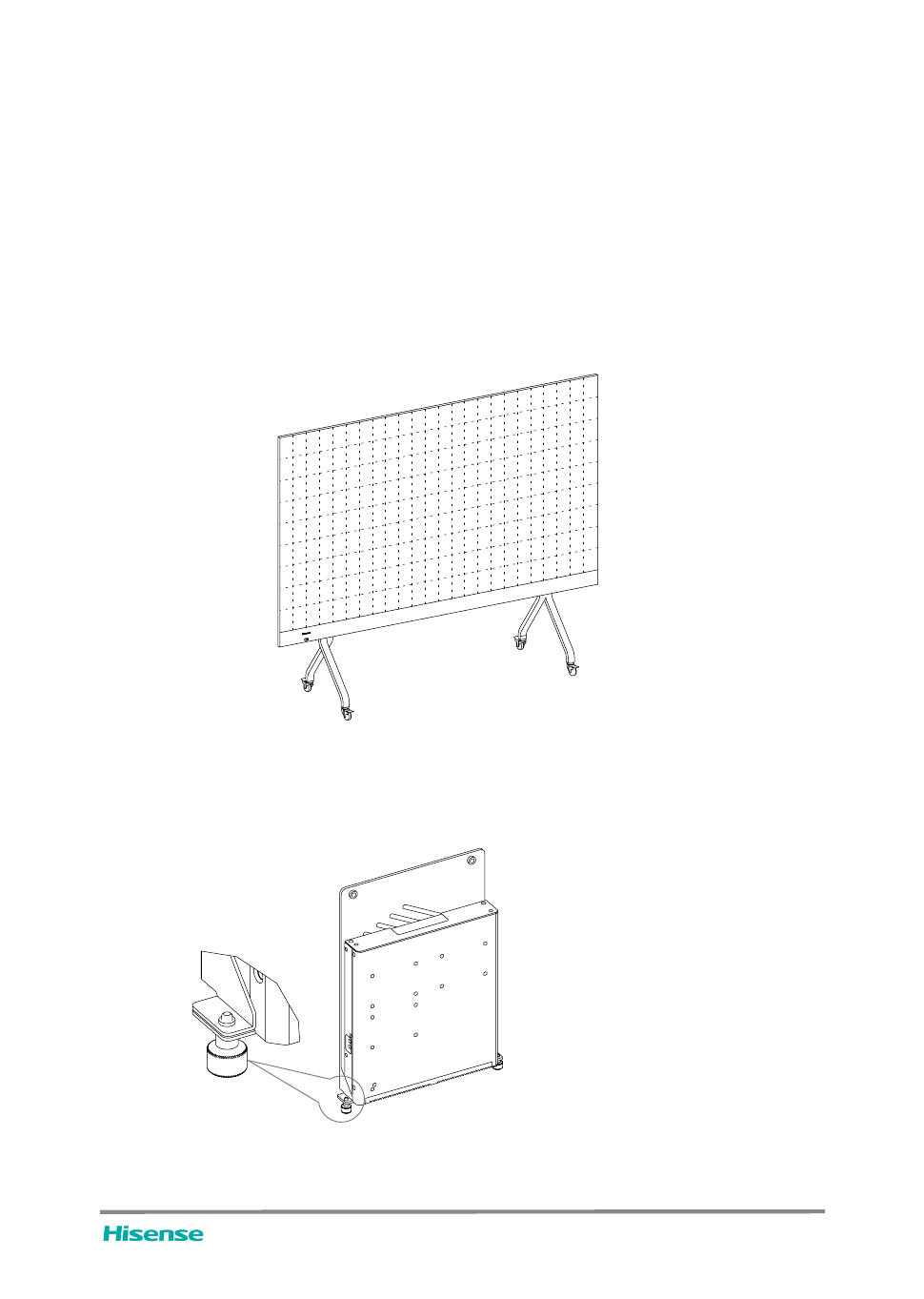

6. Bottom Beam Assembly
Install the left front cover and right front cover back. Use 6 pieces of M3 screws in the left front
cover and 7 pieces of M3 screws in the right front cover.
(1) For users who have customized OPS components, if there is need to assemble OPS, they
should firstly properly assemble OPS PC and OPS bracket using the two knobs and
screws delivered with OPS.
(2) Align the OPS computer socket with the reserved socket on the ground side of the bottom
beam according to the direction shown in the Figure, and insert it in place upward. Note
that there is need to hold the screws with hands before fixing them.
33
LED All-In-One User Manual
7. OPS Assembly
