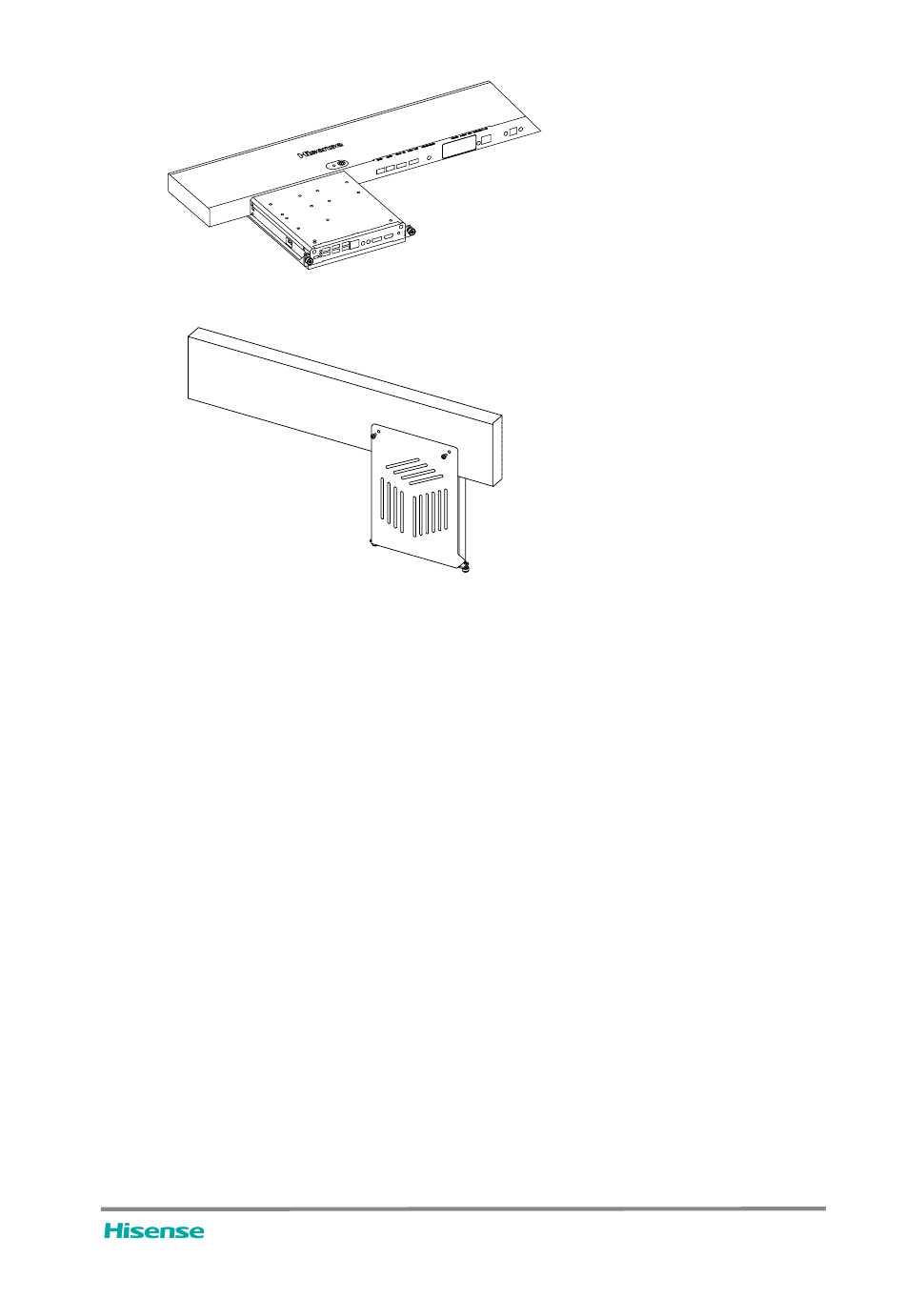

Use two pieces of M4 screws and fasten the bracket to the rear surface of the bottom beam.

Description:

1.

During the above-mentioned installation process, if the deviation between the cabinet and the screw

position of the connecting block is too large to be fixed, there is need to loosen the two fixing screws of

the connecting block and the mobile bracket in

Page 25-

Step

4

, so that the connecting block and the

surrounding cabinets can be connected normally, and then tighten the above-mentioned screws.

2.

Due to different packaging forms, the products packaged in the integrated flight case are divided

into

two parts, i.e. left and right, because the display box is assembled in advance, and the installation

method is basically the same.
