45

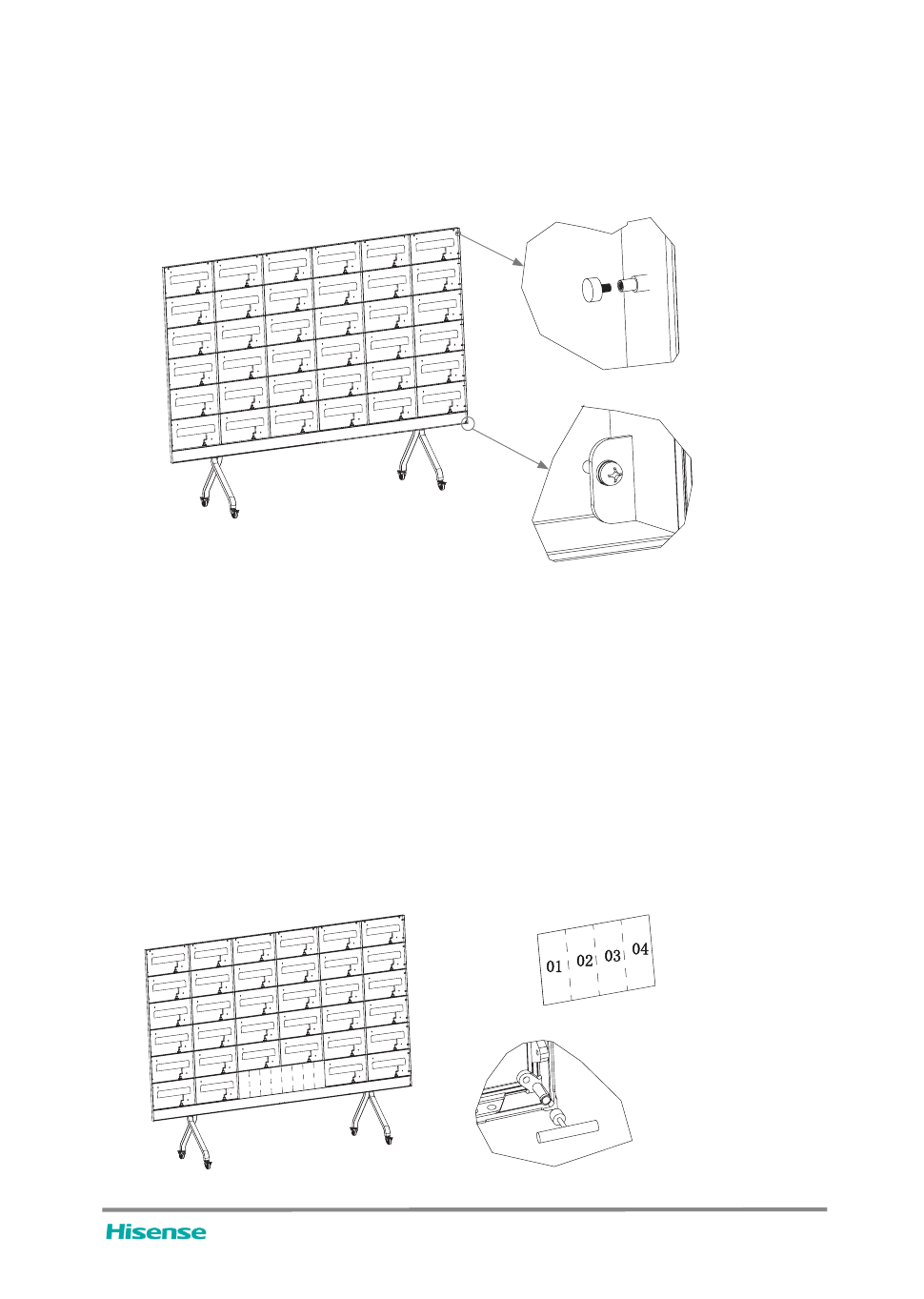

(1) For the front cover installation, a total of 12 hand screws are required.
(2) Left front shell installation, a total of 12 hand screws + 1pc M3 screw.
(3) Right front shell installation, a total of 12 hand screws + 1 pcM3 screw.
Details A
Details B
LED module S/N
Height adjustment
(1) Check the packaging cabinet of LED module
(2) The LED module installation should be after finished of all cabinets’ installation, power and
network cables connection according to the sequence number. LED module sequence is the
same as marked cabinet sequence. Bottom middle outward and upward
(3) Install the LED module from the first row. Start installation at the junction of No. 33 cabinet
and No. 34 cabinet in the order from the middle to the sides, and then install the left-most and
right-most LED modules. Note:
That the upper surface of the bottom beam (the media bar where the PCB is installed) as the
reference horizontal datum level the lower surface of the LED module shall be close to the
upper surface of the bottom beam.
(4) Check the flatness of the surface of the splicing LED module. If there exists height difference
at the splicing position, there is need to use the tool shown in the Figure to adjust the magnet
height on the die-casting cabinet until the LED module is level with other LED modules after
installation.
Check the alignment of the leftmost and rightmost sides of the die-casting cabinet. After
confirming that there is no problem, install the second and sixth rows.
LED All-In-One User Manual
6. Side Front Shell Installation
7. LED Module Assembly
