27

2. Cabinet Assembly

(1)

Take out cabinet No. 13-18 in the bottom row. The serial number of each cabinet is as shown in the

Figure.

(2)

Fix bottom row of cabinets on the bottom beam at first, and then fix No. 15 cabinet (or No. 16 cabinet)

according to in the order from middle to both sides, and place the cabinets on the bottom beam (Media

Bar). Use 2 pcs silver M6 x 16mm hex socket screws as shown in the Figure. Arrows on cabinets facing

up. Use 5mm hex wrench (be careful not to lock it).

(3)

Then, use the two black M6 x 15mm hex socket screws as shown in the Figure to respectively mount the

back of the cabinet with the connecting blocks of the first cross beam and the connecting block of the

second beam. Use 5mm hex wrench

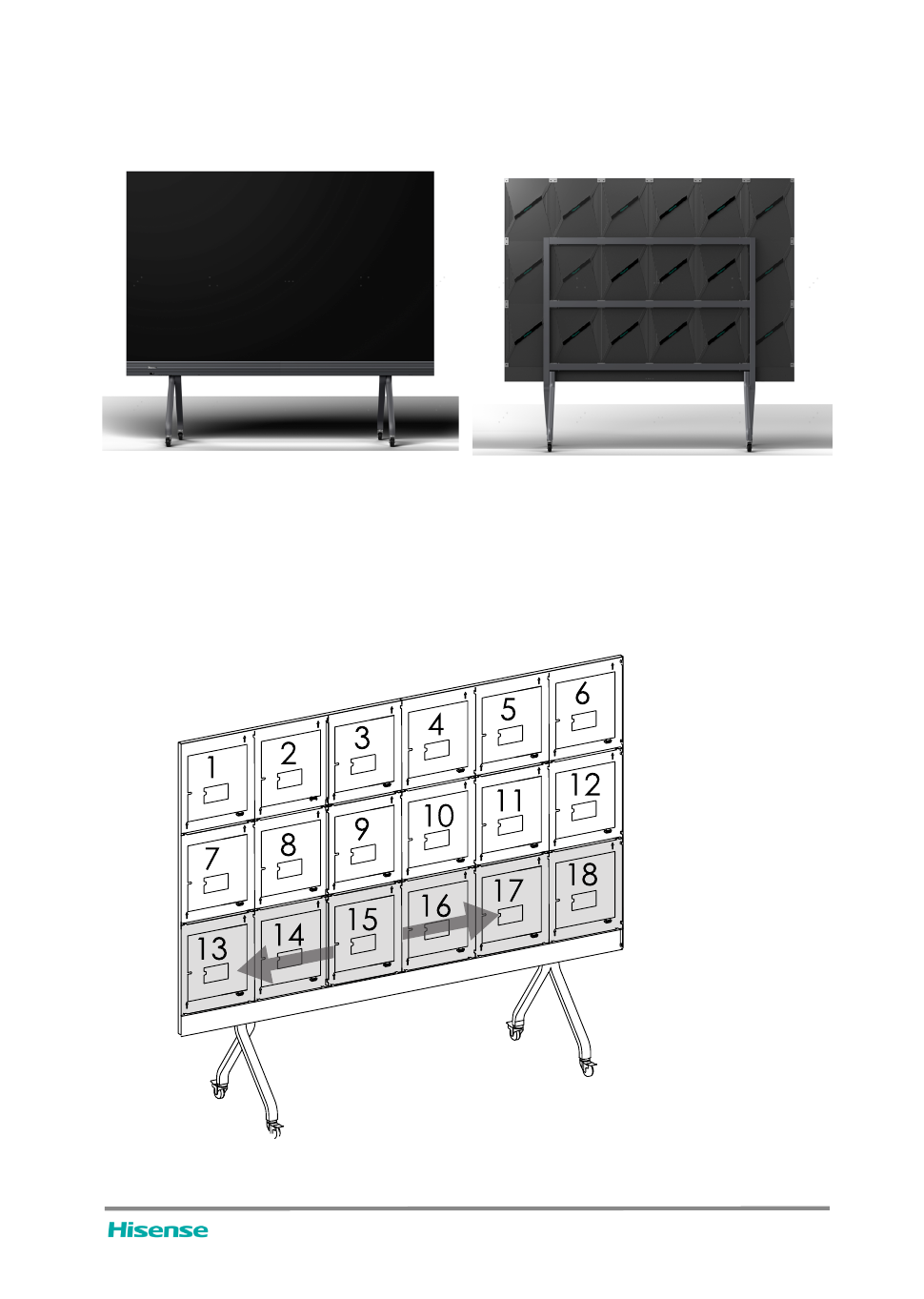

The overall shape after assembly is as follows:

Cabinet number
