36
2. BracketStructure Installation

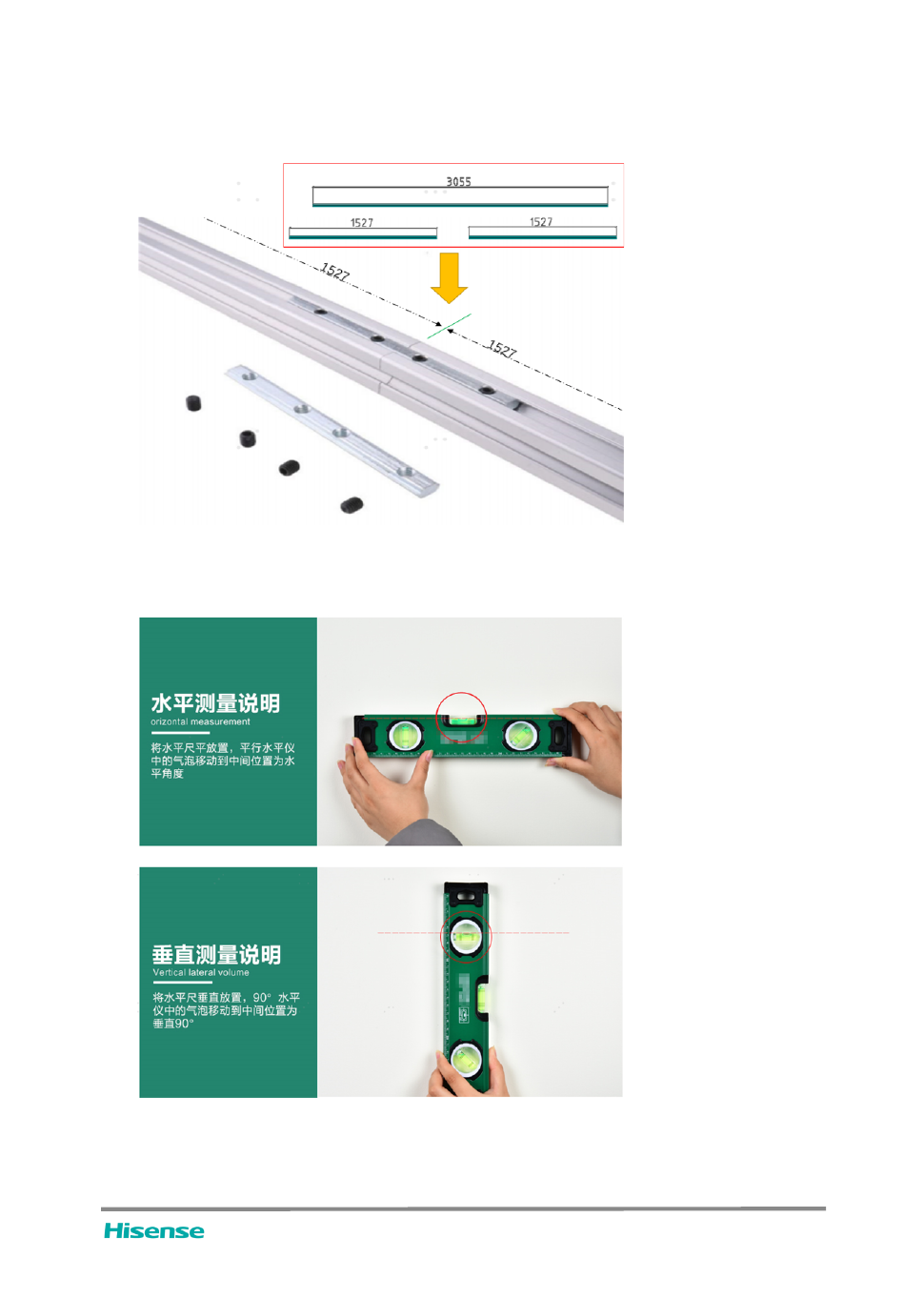

1 ） Use bracket connectors to connect 2 pieces of profiles with the length 1527, with 2 pieces used
for each group (connection diagram as shown below)
2 ） Install the bottom bracket rod.
Installation preparation: Please use a spirit level or a laser level meter to ensure that the bottom
bracket rod keeps vertical and flat.
Installation /Step1: Fix four vertical bracket rods with the length of 1712 to the wall by use of
expansion bolts, profile iron corner connectors, and M6×14 screws according to the interval size
shown in the following Figure.
