44

Note: In the above installation process, if the deviation between the cabinet and the screw position

of the connecting block is too large to be fixed, there is need to loosen the two fixing screws

of the connecting block and the mobile bracket in

Page- Step 4

, so that the connecting

block and the surrounding cabinets can be connected normally, and then tighten the above-

mentioned screws.

(1)

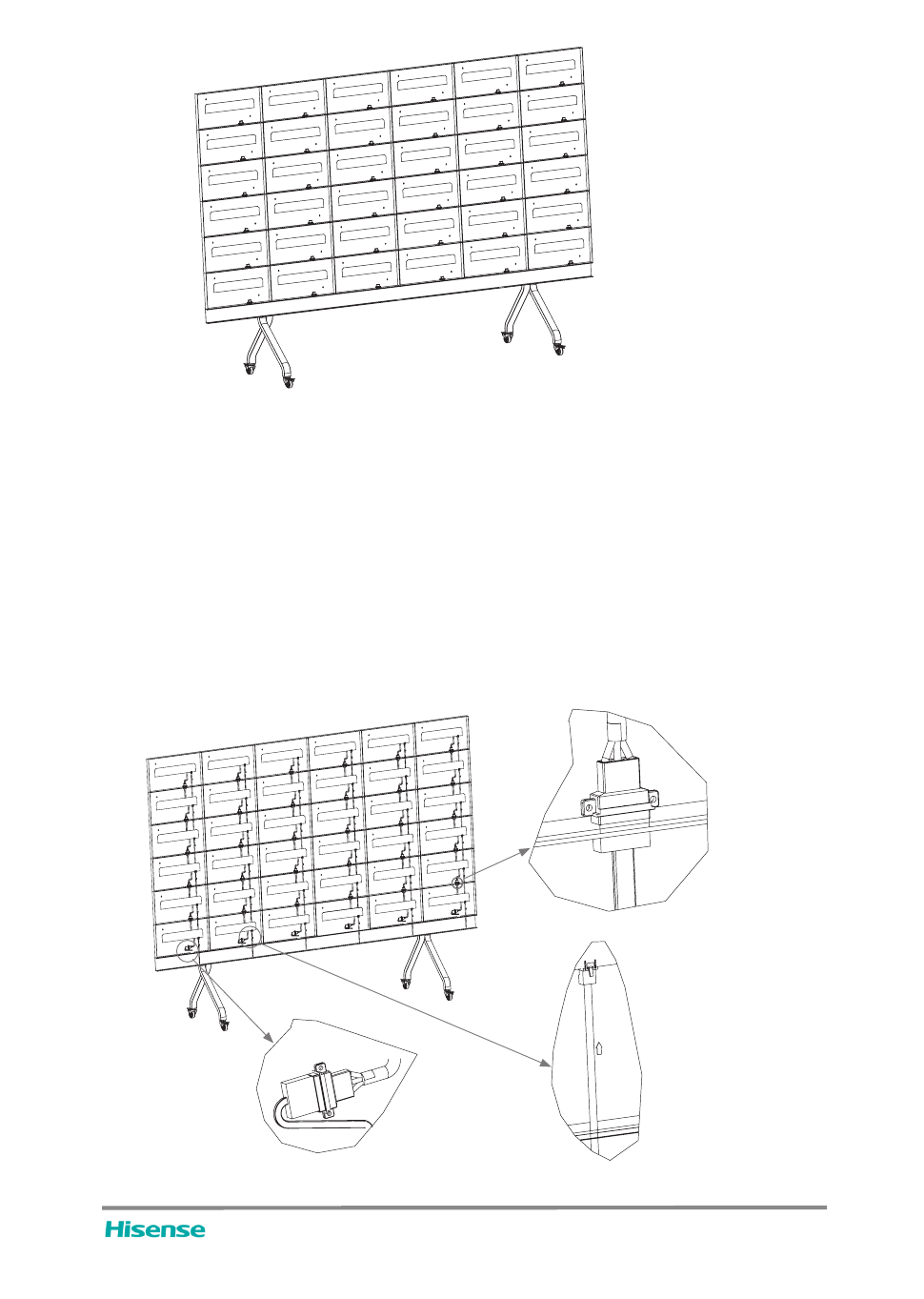

Wiring between cabinets.

Connect, in units of columns, the network cable and power cable at the upper end of HUB board

in the lower row of cabinets with the corresponding network cable and power cable socket at the

upper and lower ends of HUB board in the upper cabinet, as shown in the Figure.

(2)

Wiring between No. 1 row of cabinets and the bottom beam.

Pass the network cable and power cable of the bottom beam through the top opening of the

bottom beam in sequence, and connect to the network cable and power cable socket at the

corresponding position at the lower end of the cabinet HUB board in the first row.

(3)

Power-on check

Details A

Details B

Details C

LED All-In-One User Manual

5. Before wiring operation, check that the power cord is in the unconnected state
