41

5

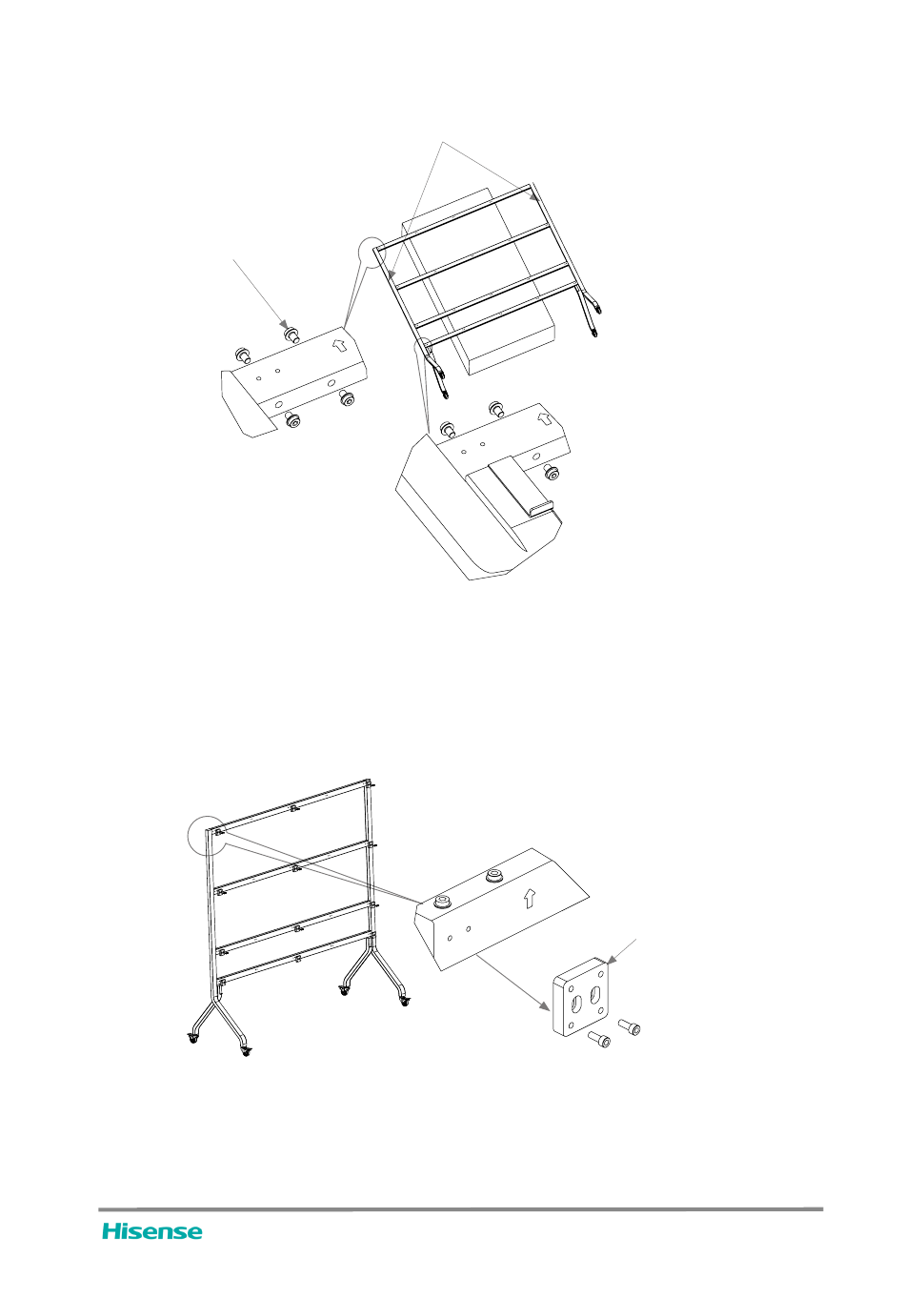

Erect the mobile bracket, and fix 30 fixing screws tightly after checking that there are no

abnormalities

in the trolley.

Columns on both sides

M8 fixing screws

and gaskets (30

in total)

6

Use 2 pieces of screws M6×16 to fix on the cross beam according to the direction shown

in

the Figure, and fix the connecting block (in another storage box) with a total of 12 connecting

blocks and 24 screws at intervals as shown in the Figure.

Note: During the fixing process, the connecting block is in a natural drooping state. After the

fixation is completed, the screw head sinks into the groove of the connecting block, and the

upper and lower planes of the connecting block shall be basically flush with the upper and

lower planes of the cross beam.

Screw (M6Ч16)Ч2

Connecting block
