G. DB25 Pinouts

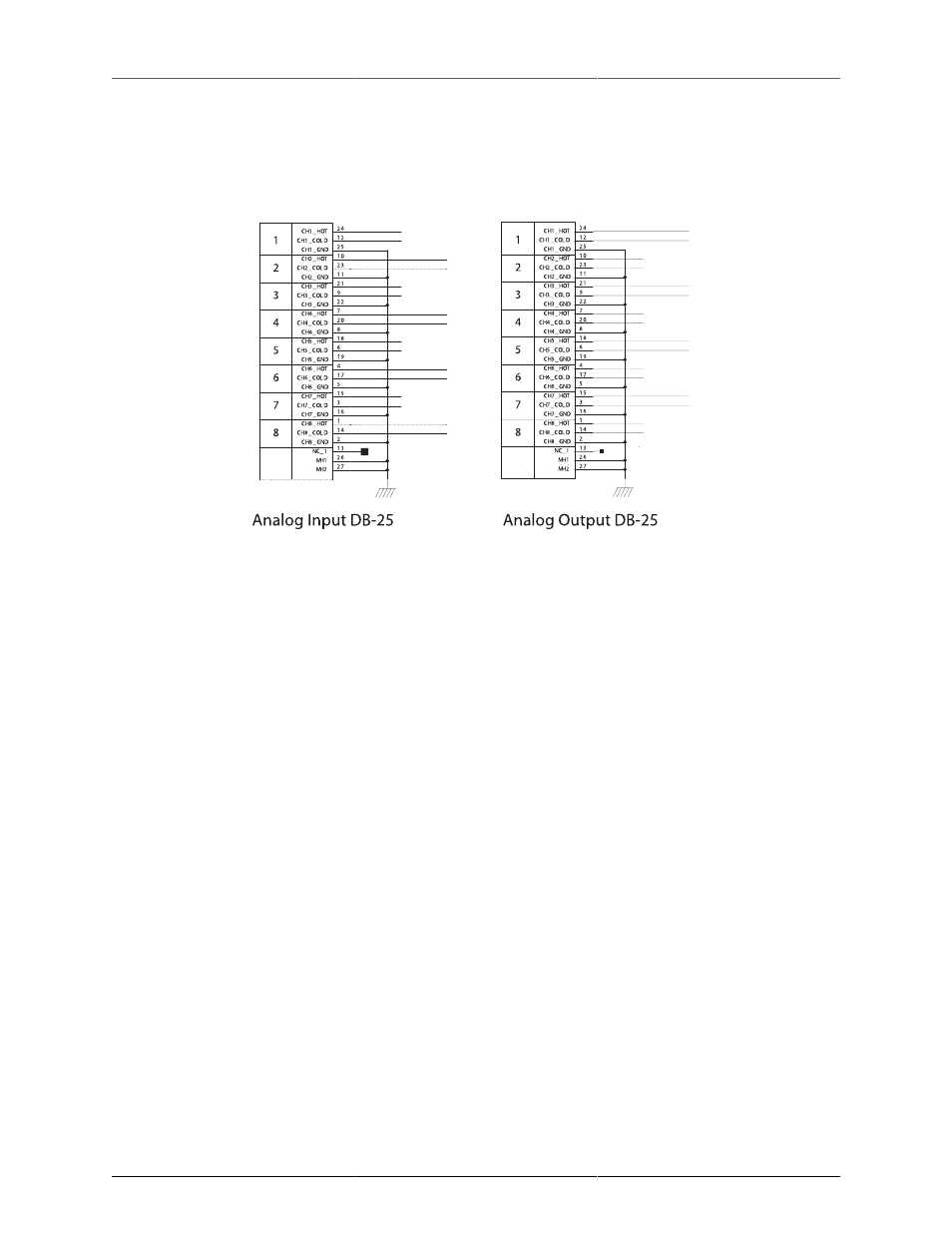

Figure G.1: Analog DB25 pinouts
Common wiring pinouts:
XLR:
• HOT: Pin 2
• COLD: Pin 3
• GND: Pin 1
TRS:
• HOT: Tip
• COLD: Ring
• GND: Shield
TS (unbalanced 1/4"):
• HOT: Tip
• COLD: Do not connect
• GND: Shield
RCA:
• HOT: Pin
• COLD: Do not connect
• GND: Barrel
