Brother FAX 3750 User Manual
Page 130
118
C H A P T E R T H I R T E E N
WARNING
Just after you have used the fax machine, some internal parts of the machine
are extremely HOT! So please be careful.
HOT!
Inside the Fax Machine

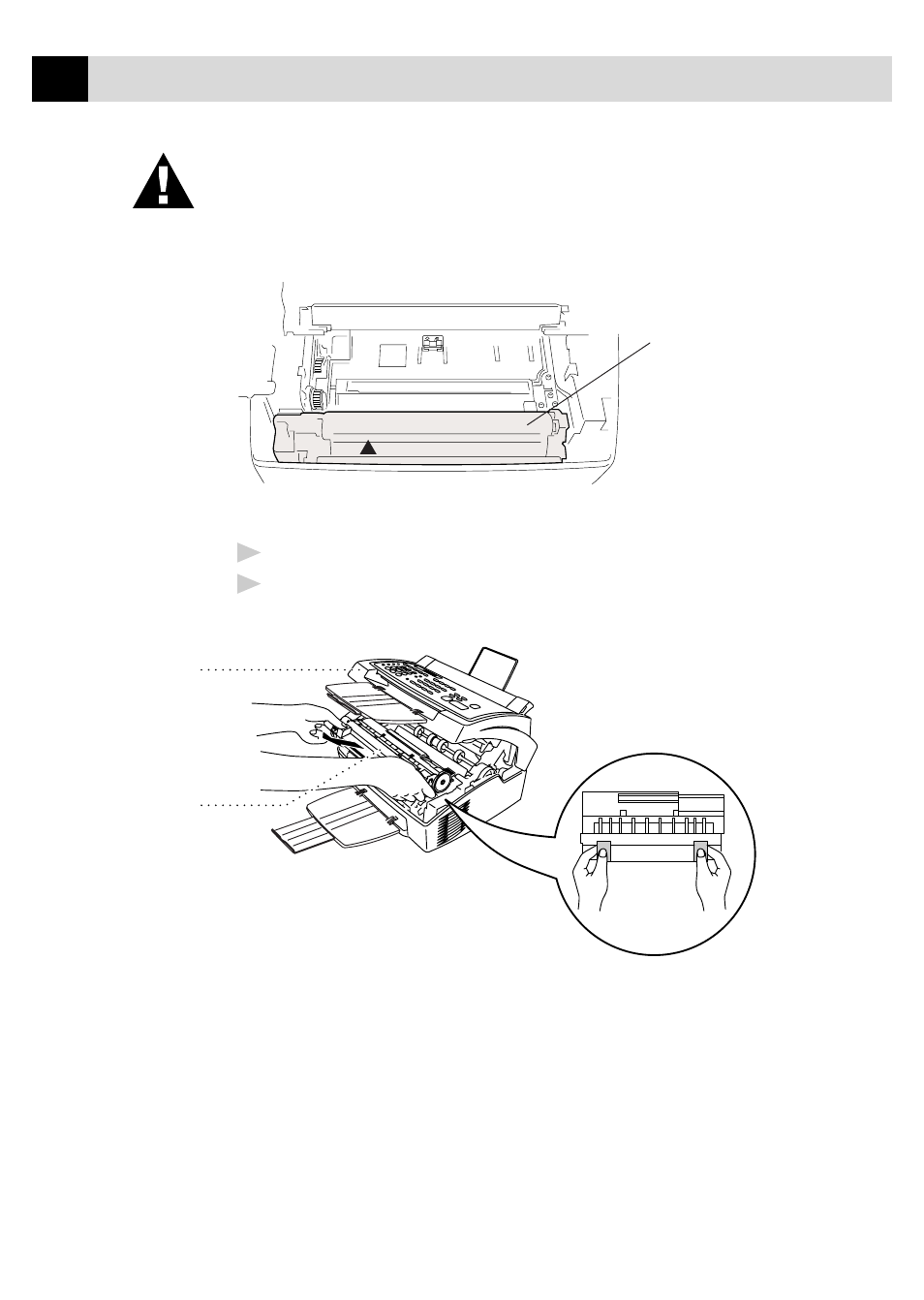

Follow these steps to replace the drum unit:
1
Open the top cover.
2
Remove the old drum unit. Place the drum unit on a drop cloth or large
piece of disposable paper to avoid spilling and scattering the toner.
Top Cover
Drum Unit
