C H A P T E R T H I R T E E N
6

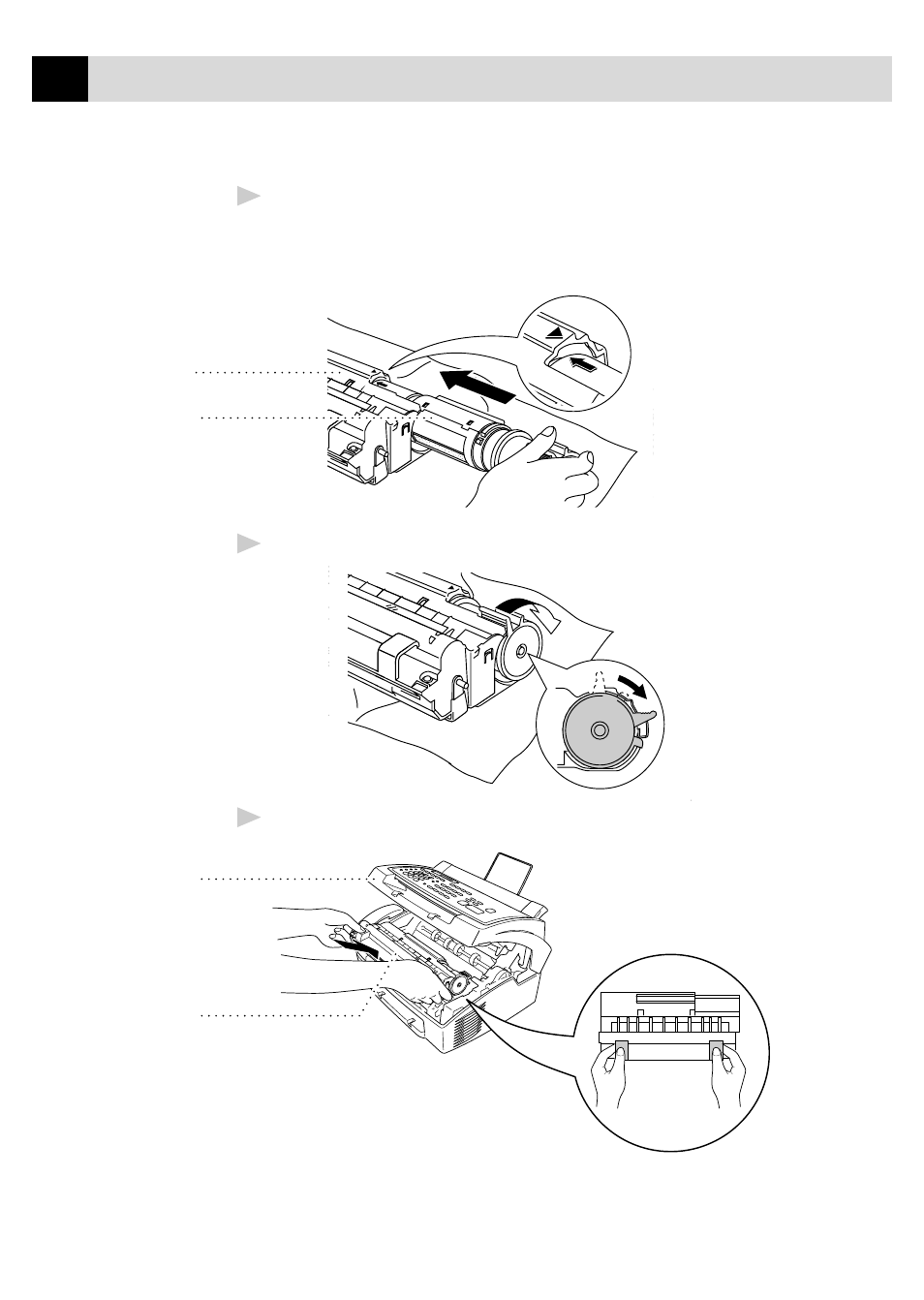

Slide the new toner cartridge into the opening on the right side of the
drum unit. To ensure that the toner cartridge and the drum unit fit
together correctly, make sure that the toner cartridge guide arrow is
exactly aligned with the guide arrow on the drum unit.
Toner
Cartridge
Drum
Unit
7
Gently turn the lever on the toner cartridge backward until it stops.
8
Reinstall the drum unit into the fax machine and close the top cover.
Drum Unit
Top Cover
