T R O U B L E S H O O T I N G A N D M A I N T E N A N C E

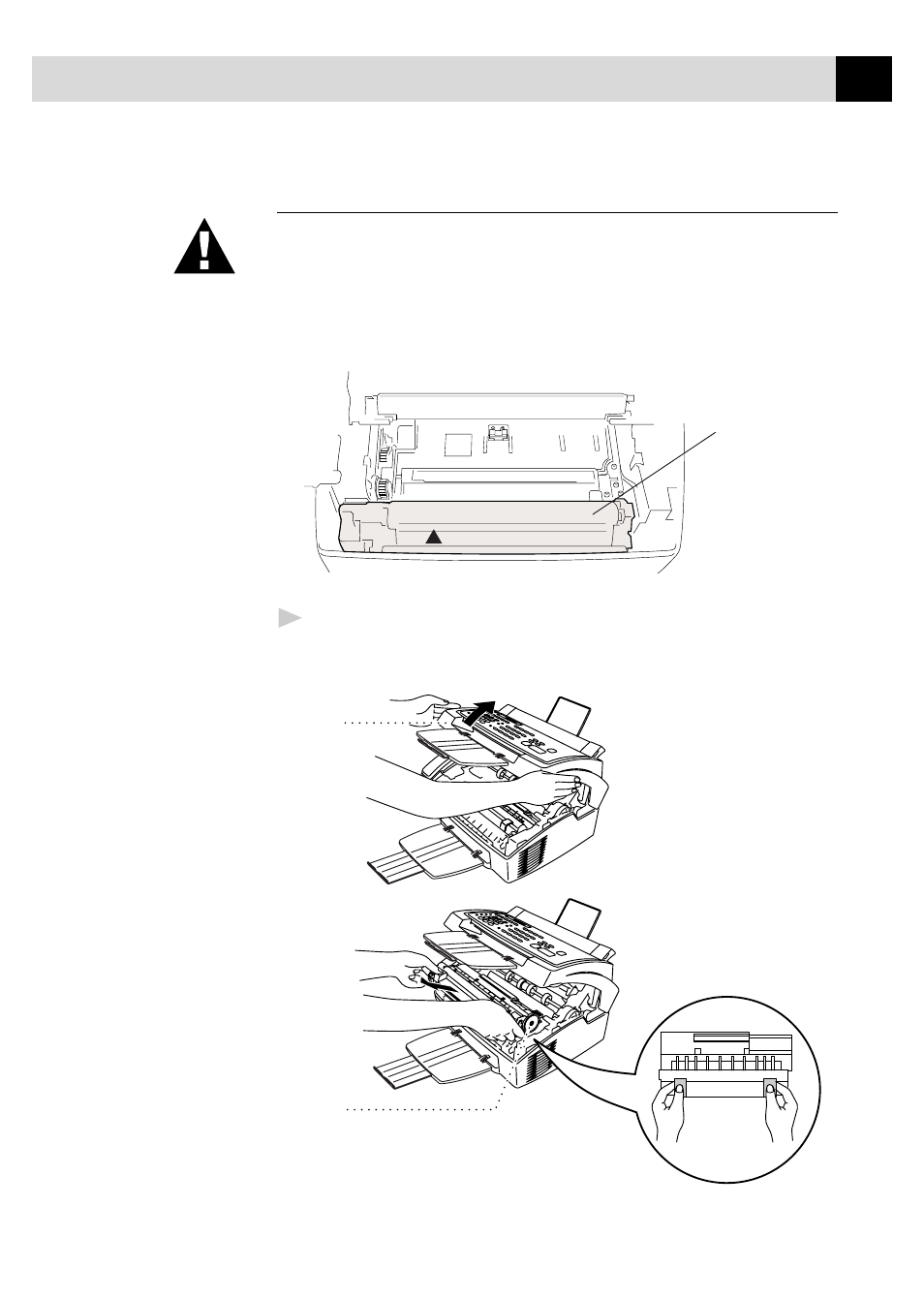

How to Replace the Toner Cartridge
WARNING
Just after you have used the fax machine, some internal parts of the fax
machine will be extremely HOT! So, never touch the shaded parts shown in
the illustration.
HOT!
Inside the Fax Machine
1
Open the top cover. Make sure the top cover is completely open. To
remove the drum unit, hold each side of the drum by its handles and
gently lift the drum forward toward you.
Drum Unit
Top Cover
Place the drum unit on a drop cloth or large piece of disposable paper to
avoid spilling and scattering the toner.
