Chapter 3
_________________________________________________________________________________________
_____________________________________________________________________________
BE6021-11 1316A-2 Multi Gas Monitor LumaSense Technologies A/S
Instruction Manual Page 49 of 97

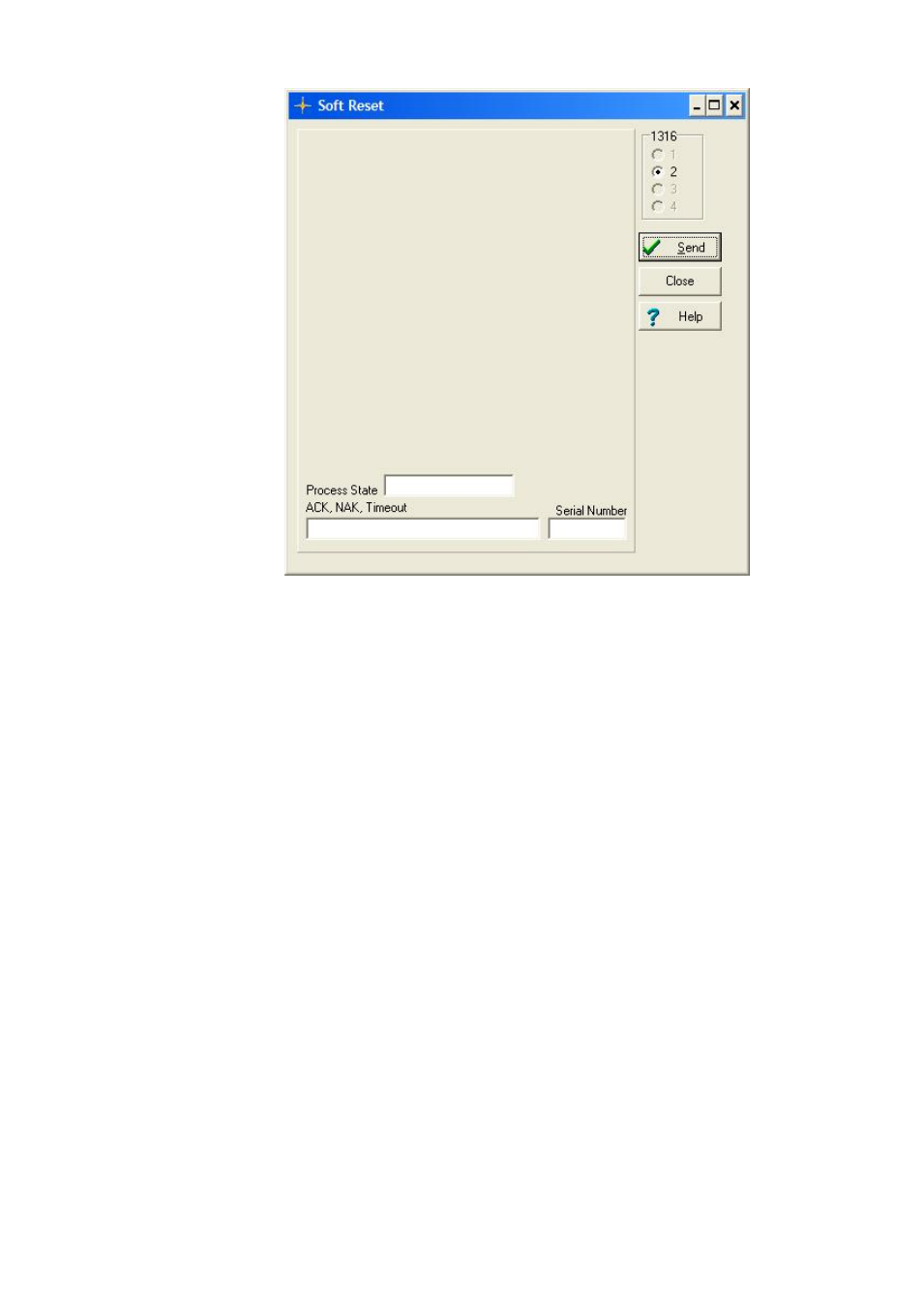

Figure 3.11: The Soft Reset Window.
Press the Send Button and the Instrument is Reset and ready for set-
up.
3.6 Operating Modes of the Multi Gas Monitor 1316A-2
The Multi Gas Monitor 1316A-2’s operations comprise four modes of
operation.
♦ Start-up
♦ Normal
♦ Standby
♦ System Fault
3.6.1 Start-up Operating Mode
After POR (power on / reset), the Multi Gas Monitor 1316A-2
performs the following:
♦ Start-up and initialization.
♦ Self-test.
♦ Thermal warm-up. After a cold start or a Software Reset
bench command the warm-up time period is 35 seconds
maximum. After leaving standby mode the typical warm-
up time period is 20 seconds after completion of the first
zero.
