1316A-2 Multi Gas Monitor

LumaSense Technologies A/S

Instruction Manual

Page 46 of 97

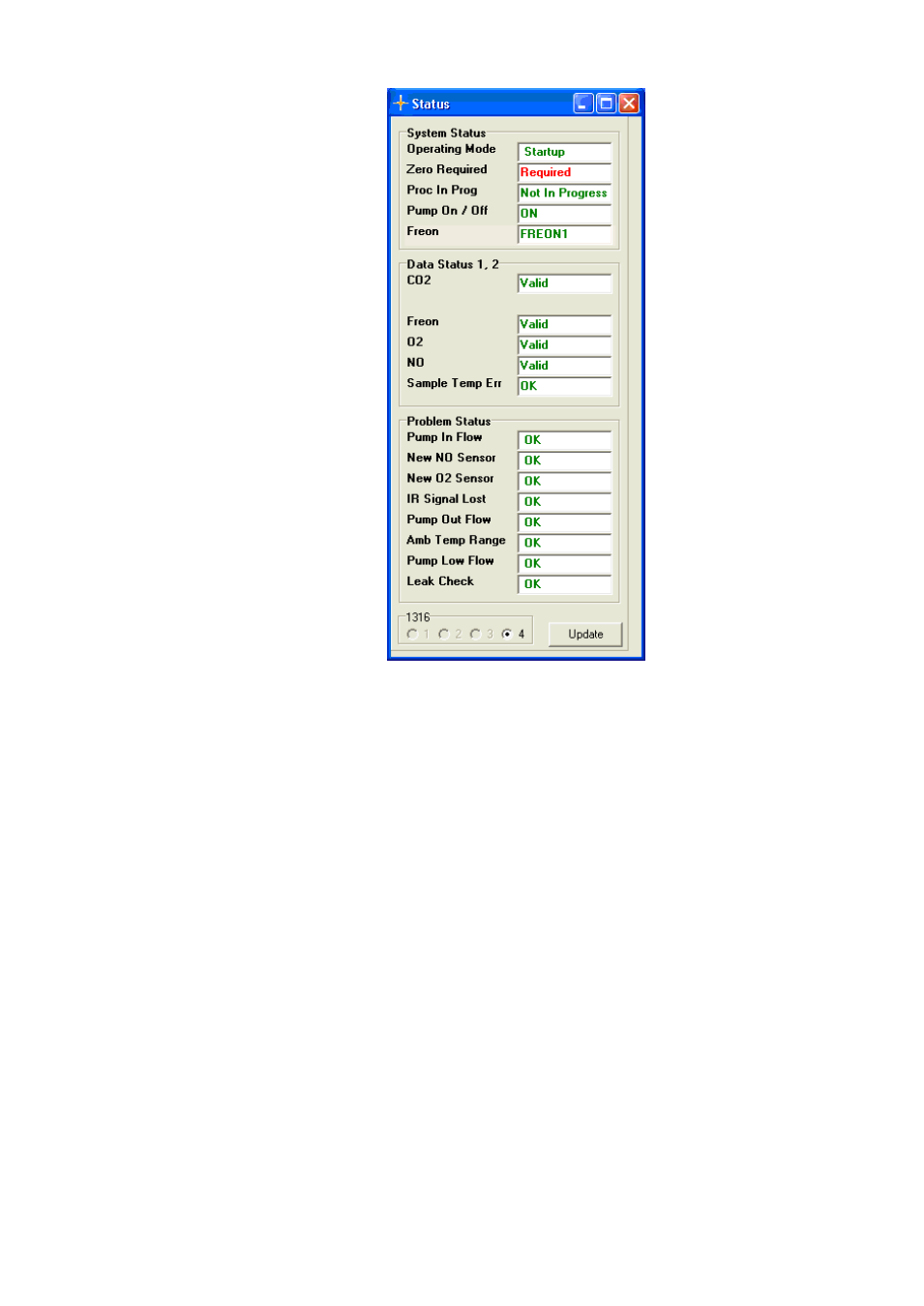

Fig.3.10. The BZ6013’s status Screen

The BZ6013 and 1316A-2 have built-in test procedures that are able

to monitor various electronic and mechanical parts – for example,

the flow rate. If anything abnormal is detected with any of the

parameters tested for, the error will be reported in the status screen

see figure 3.10.

The status screen in figure 3.10 shows that zero is required.

The System status and Data Status messages are described in this

manual when relevant for the task performed in a given section.

The problem status messages are described in section 3.4 below.

3.4 Screen Problem Status

In the bottom part of the Status screen, see figure 3.10, error and

warnings are displayed. If a fault status is discovered the text box text is

changed from

OK

to

Check

.
