Start, Stop, Freeze, Clear Soft Keys .
START and STOP Soft Keys is used to start and stop a measurement
display respectively.
CLEAR Soft Key is used to refresh the screen display.
FREEZE is used to freeze the displayed screen while the monitoring
task is still running.
Graphics2.
In the Graphics2 mode the x-axis is a time axis. The y-axis is divided
to present an individual axis for each gas.
See Figure 3.9.

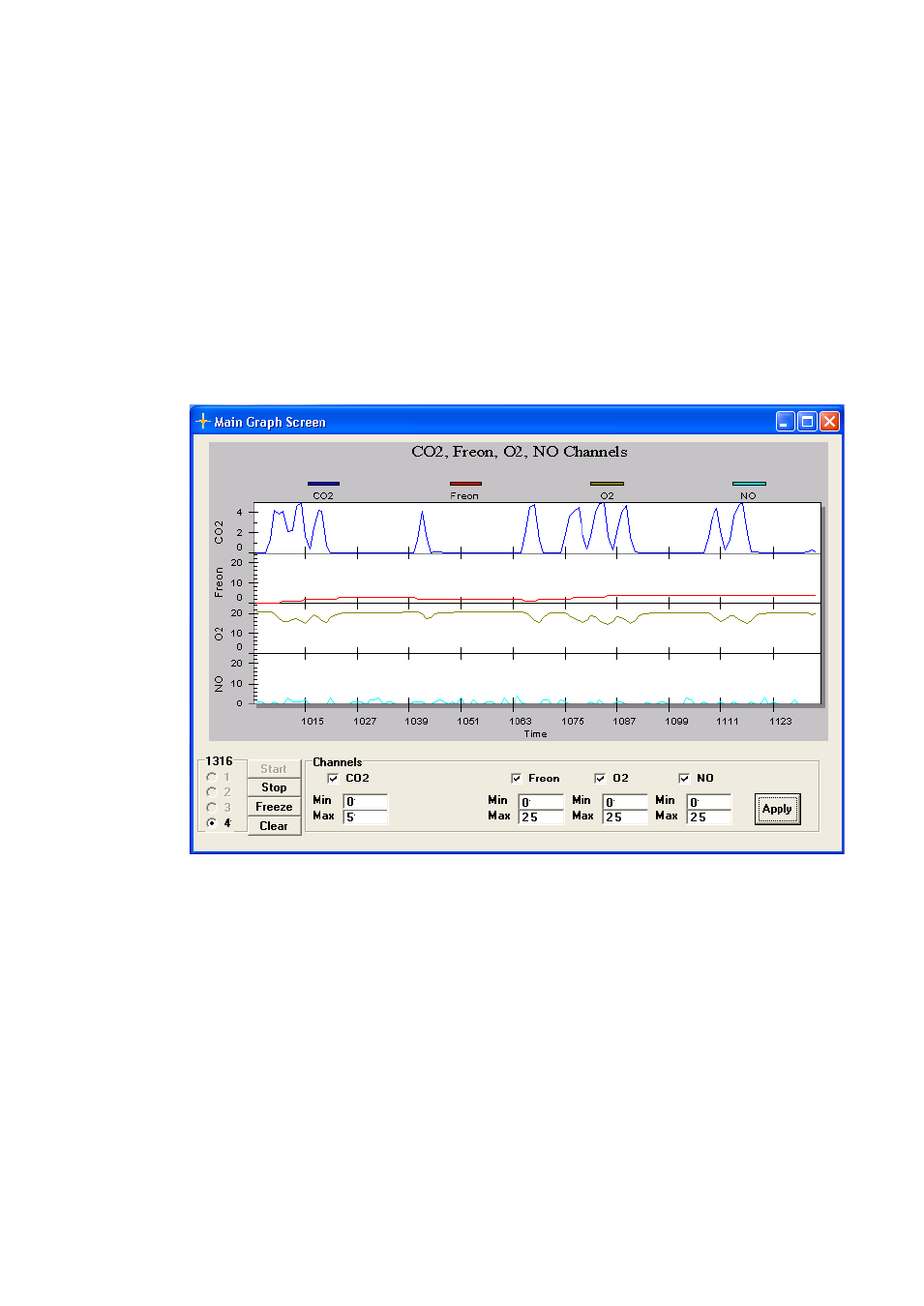

Fig.3.9 The BZ6013 Graphics screen showing Concentration
measurement results on individual axis for each gas.
Channels Field.
The Channels field in the bottom part of the Graphics2 screen is used
to :
Select the gases for which the measurement data is to be
presented in the graphical screen by setting a tick-mark.
Change the scaling for the individual axis. The scale is changed
by keying in appropriate values in the Min, Max boxes for each Gas.
