4.9.1 Satellite Location and Signal Strength
This screen allows users to check the number of satellite currently acquired and their
relative signal strength. The user can double-tap either diagram to zoom them to full
screen view.

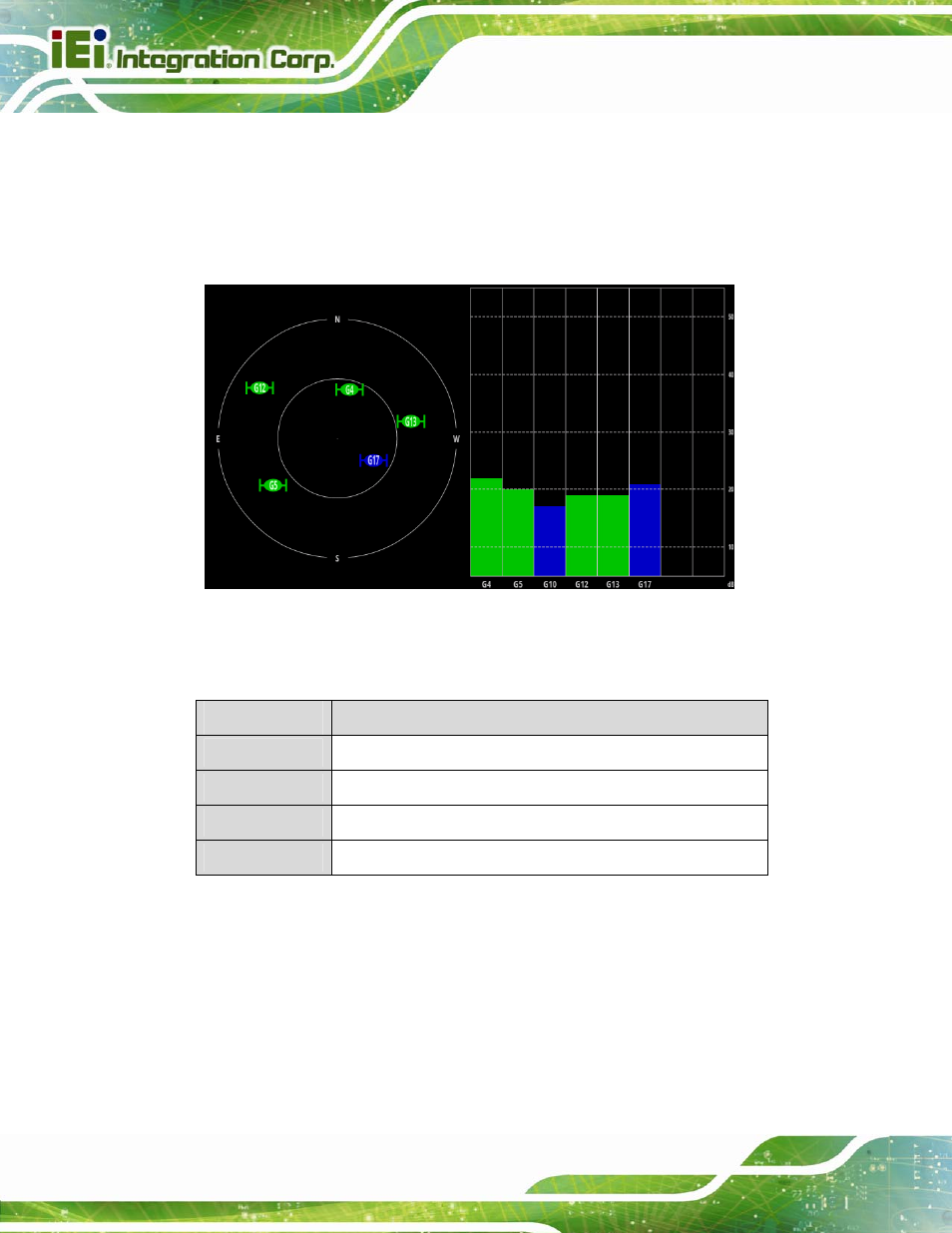

Figure 4-25: Satellite Location and Signal Strength
The satellite color coding is listed below.
Satellite Color Description
Green Satellite used in navigation
Blue Satellite signal available, not available for use in navigation
Cyan Satellite signal available, available for use in navigation
Red
Satellite signal not available
Table 4-2: Satellite Color Coding
