3.9.2.4 USB Host Connector
The USB host connector of the docking cradle provides an extra connection to a USB 2.0
or USB 1.1 device. Follow the steps below to connect a USB device to the ICECARE-07.
Step 1: Align the connectors . Align the USB device connector with the USB host
connector on the docking cradle.
Step 2: Insert the device connector . Once aligned, gently insert the USB device
connector into the USB host connector. Step 0:
3.10 Using the Metal Stand
The metal stand located on the rear panel is designed to support and stabilize the
ICECARE-07 on the work surface.

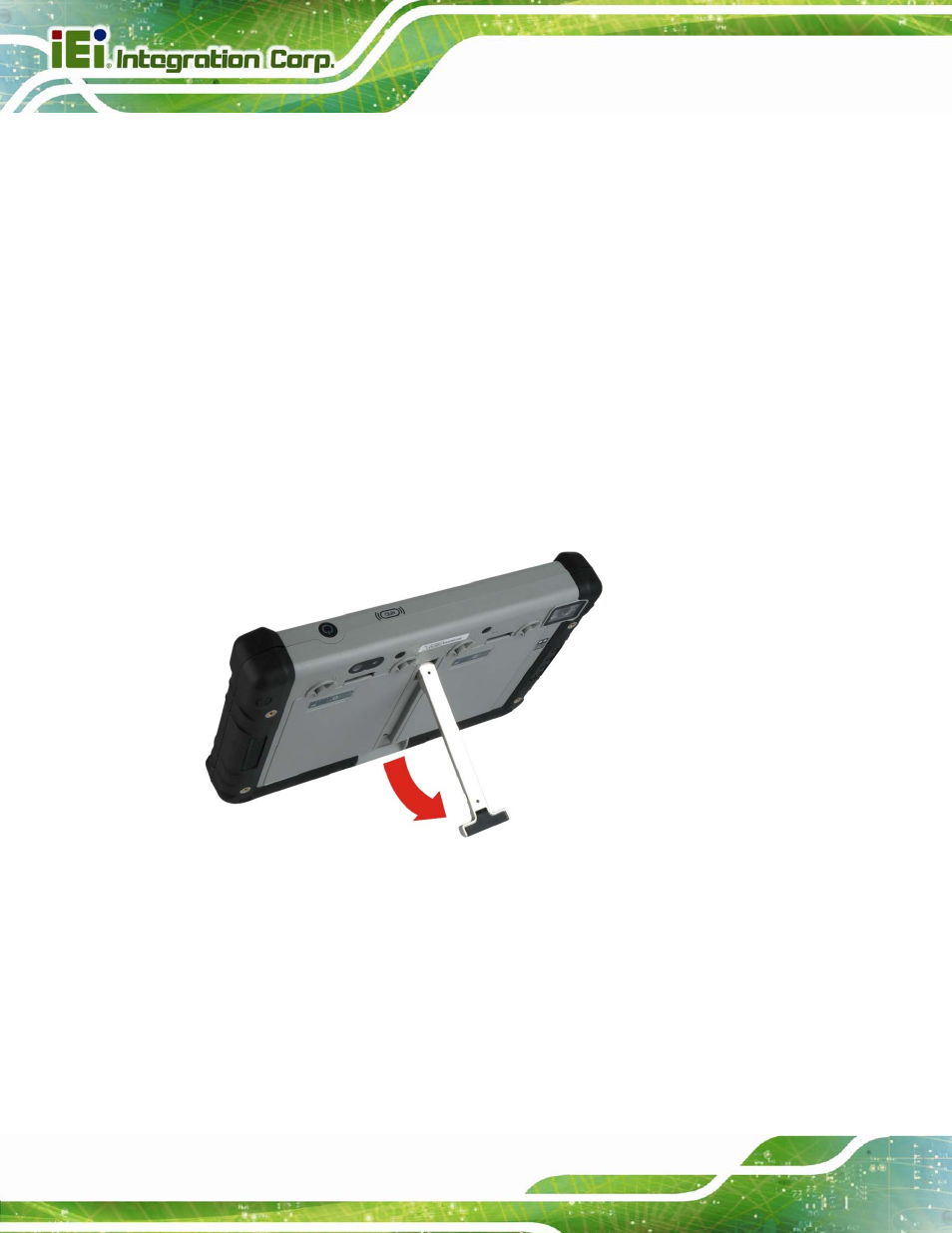

Figure 3-25: Metal Stand
