ICECARE-07 Mobile Field Assistant
Page 21

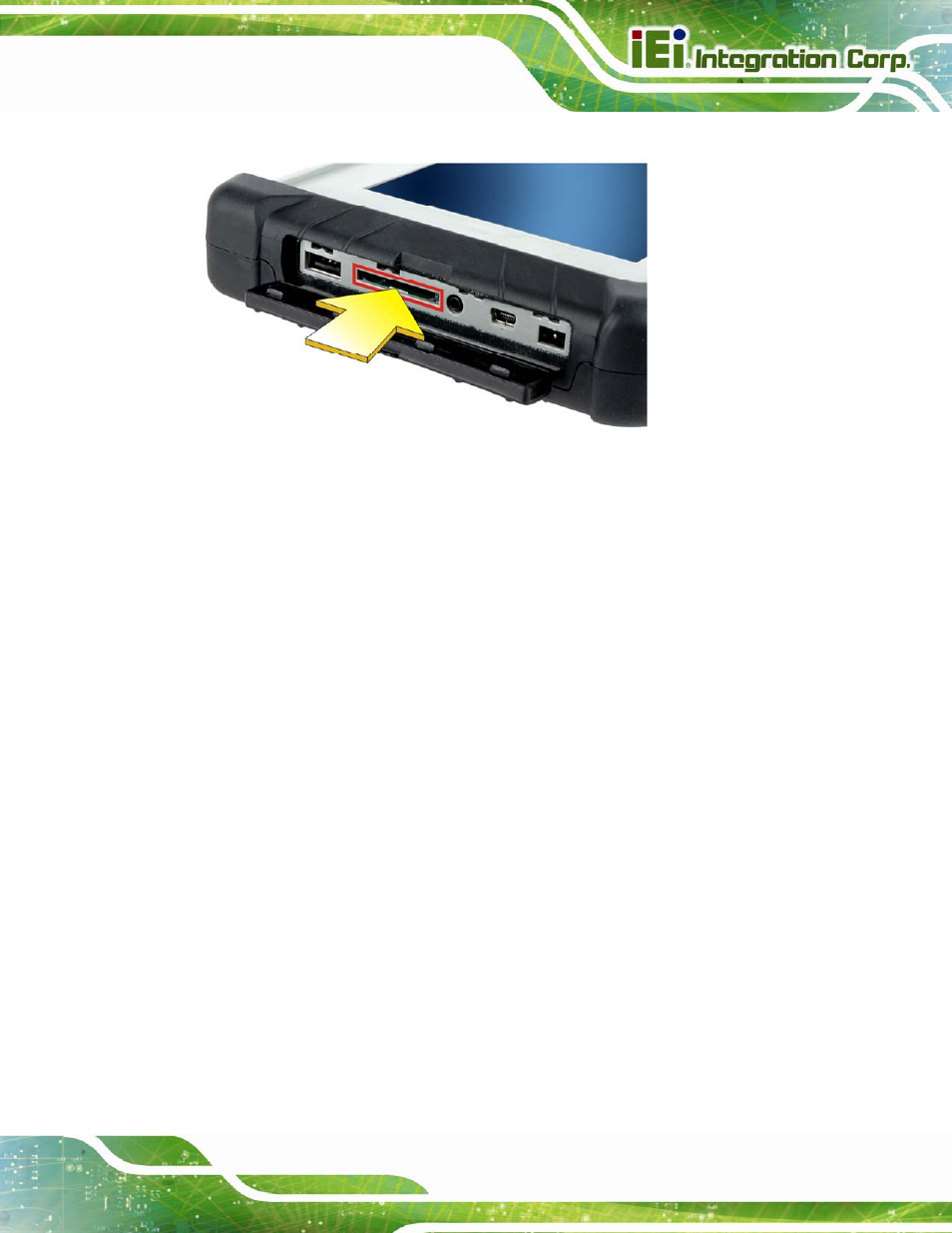

Figure 3-7: SD Card Installation
3.6 Carrying Strap Kit Installation
The carrying strap kit allows securely and effortlessly carrying the ICECARE-07. Follow
the steps below to install the carrying strap kit.
Step 1:
Attach the rubber shape module onto the rear panel of the ICECARE-07
(Figure 3-8).
Step 2:
Secure the rubber shape module to the ICECARE-07 with two of the supplied
pan head machine screws (Figure 3-8).
