Step 5: Place the ICECARE-07 onto the folding stand. Adjust the folding stand until the
ICECARE-07 is secured in place (Figure 3-14).

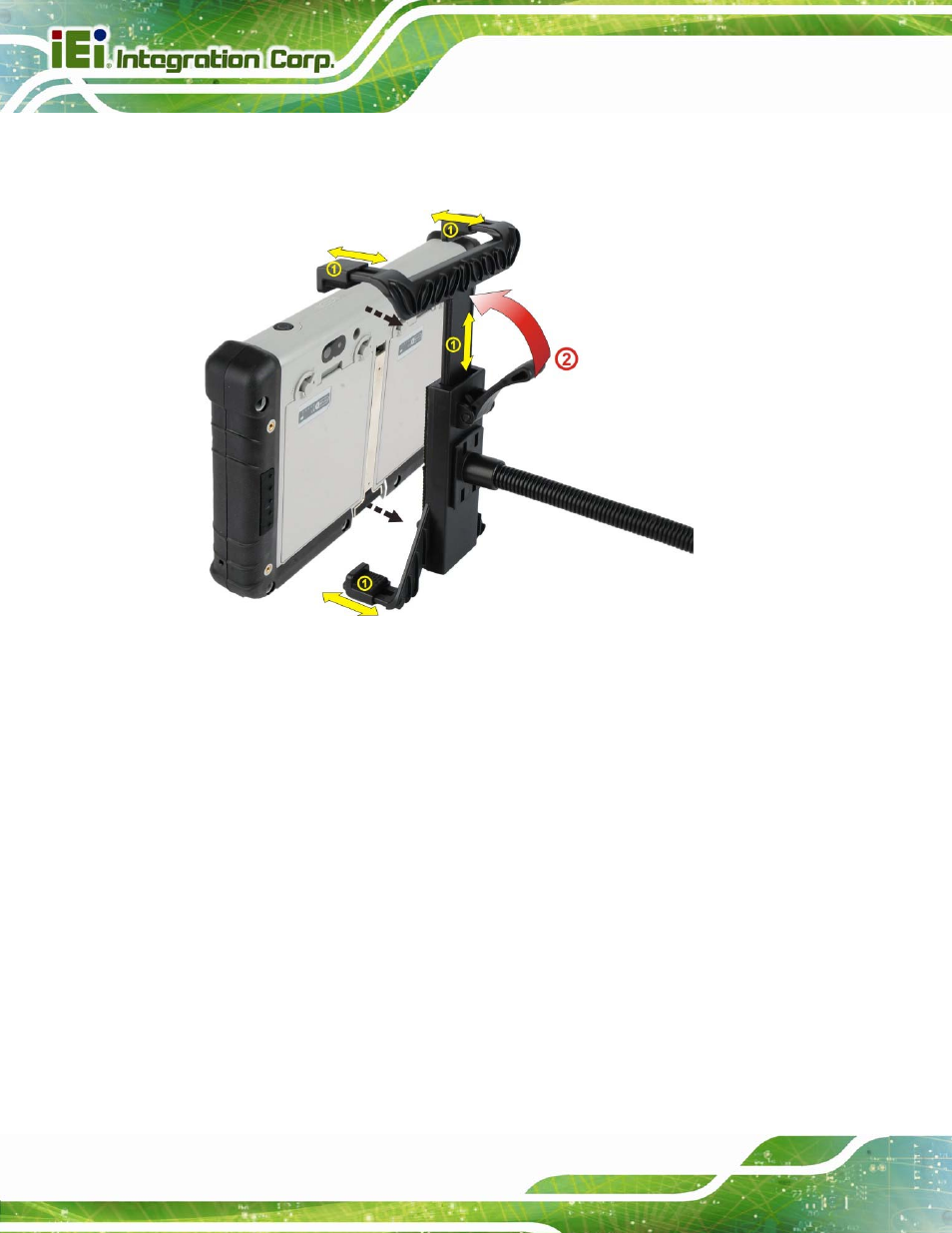

Figure 3-14: Securing the ICECARE-07 to the Vehicle Mounting Kit
3.8 I/O Connectors
The I/O connectors on the side panel are protected by a rubber cover. Open the rubber
cover before connecting any peripheral devices to the ICECARE-07.
3.8.1 Power Input Connection
The DC jack on the side panel enables the ICECARE-07 to be connected to the supplied
power adapter or optional cigarette lighter power cable.
3.8.1.1 Using the Supplied Power Adapter
Step 1: Connect the power adapter to the ICECARE-07.
Step 2: Pick the power plug that suits the user’s territory, and secure it to the power
adapter (Figure 3-15).
