3.2 Interfaces

3.21 J6 & J7 Ethernet

J6 is a Fast Ethernet interface from the SiS chipset while J7 [ETH1] is an additional Fast Ethernet
from the dedicated on-board controller. Both RJ45 interfaces are available as standard on the CPU
front-panel and provide support for 10BaseT and 100BaseTX twisted pair standards.

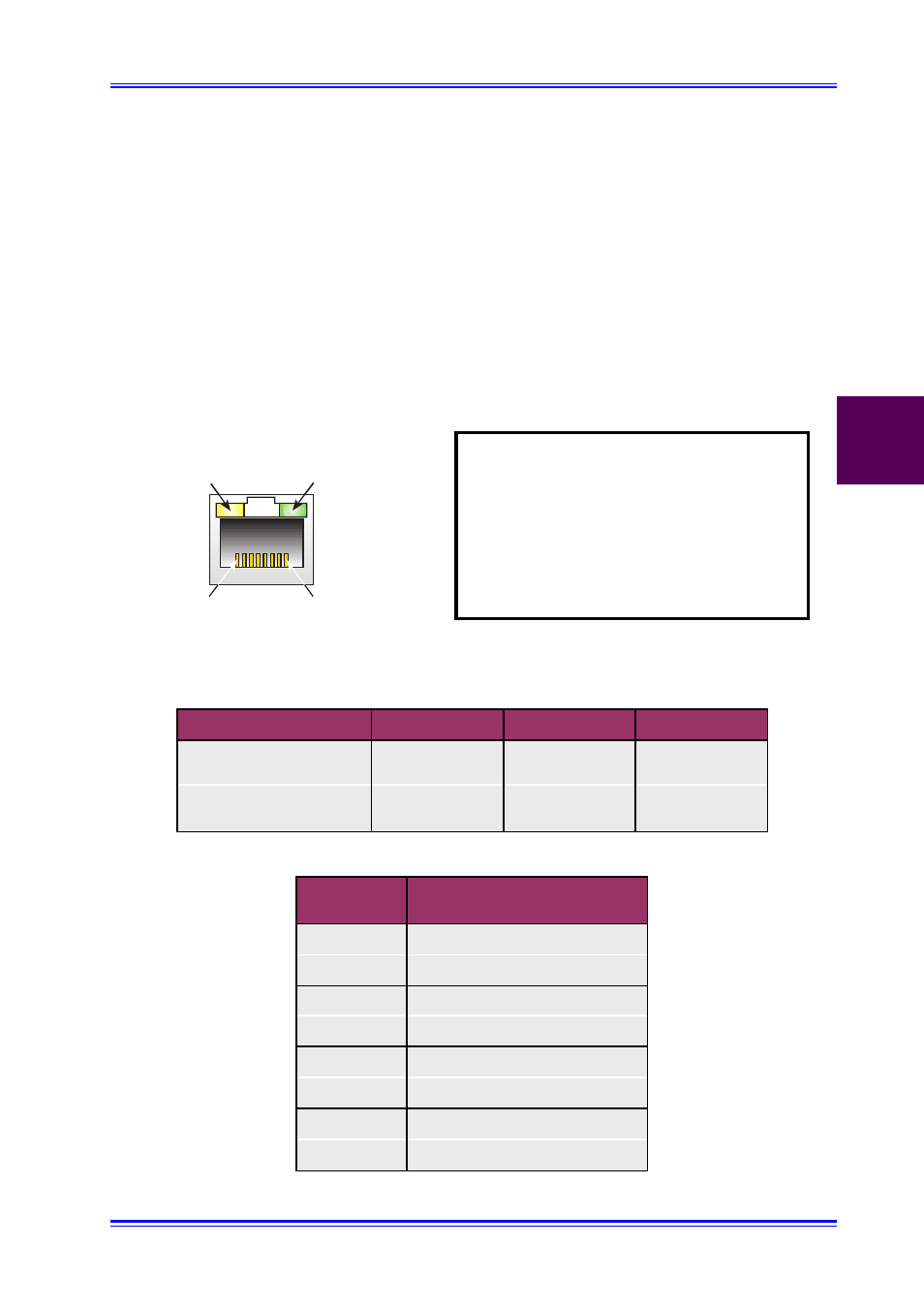

Figure 3.21 RJ45 Pinout

Table 3.21 Ethernet Standards & Connector Signals

Note:

Users taking advantage of the CPU’s rear

I/O options are advised not to use the

front-panel interface [ETH1] if the rear

interface is being used. Possible damage

to the board could occur and data

integrity cannot be assured.

Activity

Link

Standard

Data Rate

Cable

Max. Length

IEEE802.3 10Base-T
Ethernet

10Mbit/2

2-pair Cat-5

100m

IEEE802.3u 100Base-Tx
Fast Ethernet

100Mbit/s

2-pair Cat-5

100m

Pin No.

Signal Description

Ethernet / Fast Ethernet

TX0+

TX0-

RX0+

RX0-
