1.42 Connector Location

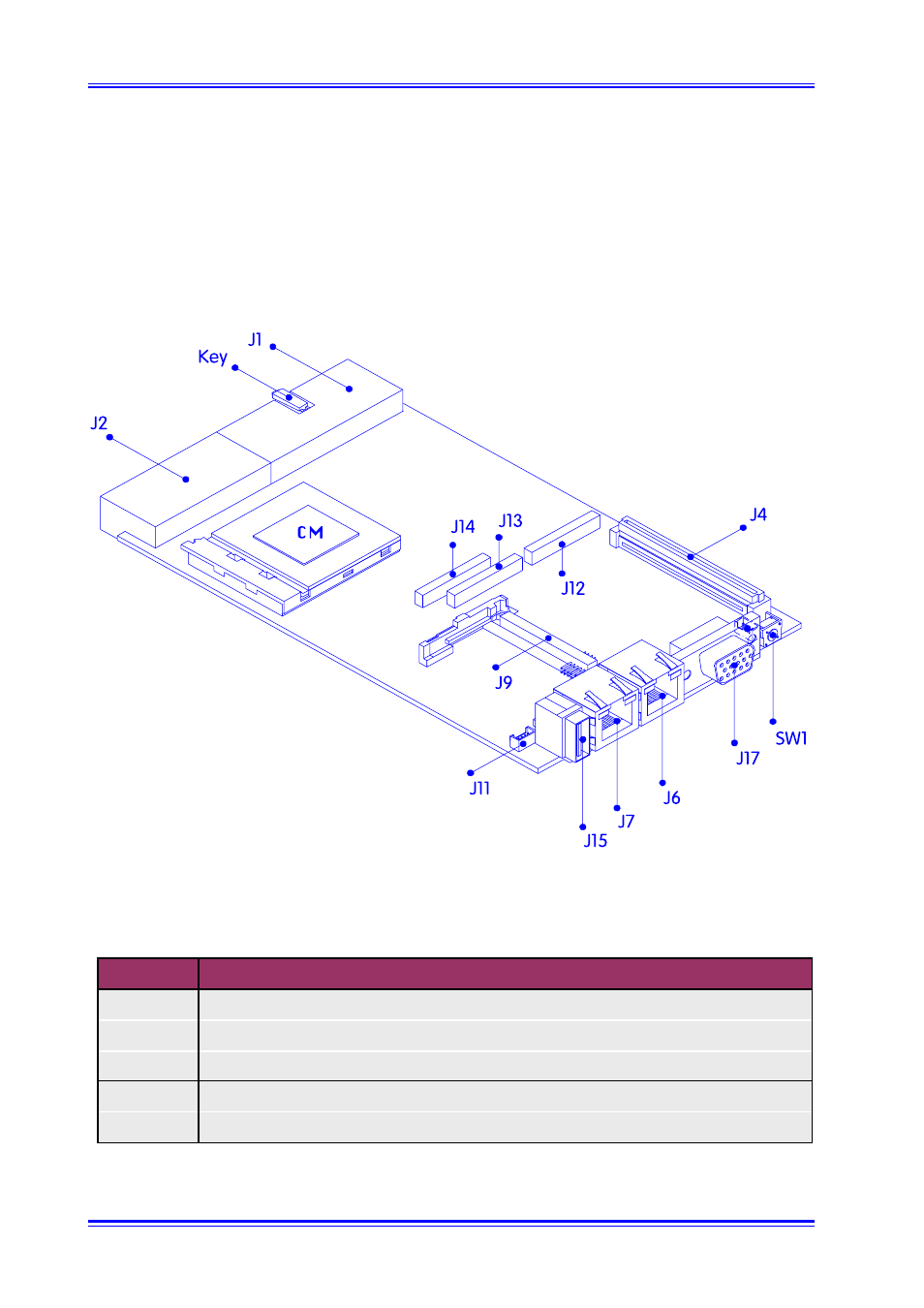

Figure 1.42 Connector Locations
1.43 Connector Description
Table 1.43 Connector Description
Connector
Description
J1, J2
CompactPCI Interface Connector
J4
AGP 4x for Optional Inova Graphic Piggyback
J6
10BaseT/100BaseTx Fast Ethernet Interface ETH2 - [SiS 900 - chipset]
J7
10BaseT/100BaseTx Fast Ethernet Interface ETH1 - [i82551]
J9
CompactFlash Socket (MicroDrive or Flash)
