©2004 Inova Computers GmbH Page 1-18 Doc. PD00941013.001
Product Overview ICP-CM
1.48 Construction - 8HP Standard CPU with AGP
This standard CPU configuration comprises:-
{
Passively cooled base with AGP 4x Radeon R7000-based graphics, dual Fast Ether-
net, three USB 2.0 interfaces, combined PS-2 mouse / keyboard, COM1 and COM2 inter-
faces. Behind the extended front-panel is a platform for any IDE HD or Flash device with
additional interfacing for FD and LPT - refer to Appendix A for further information. The
minimum airflow requirements must be matched with the selected ‘processor speed, CPU
damage could result otherwise !

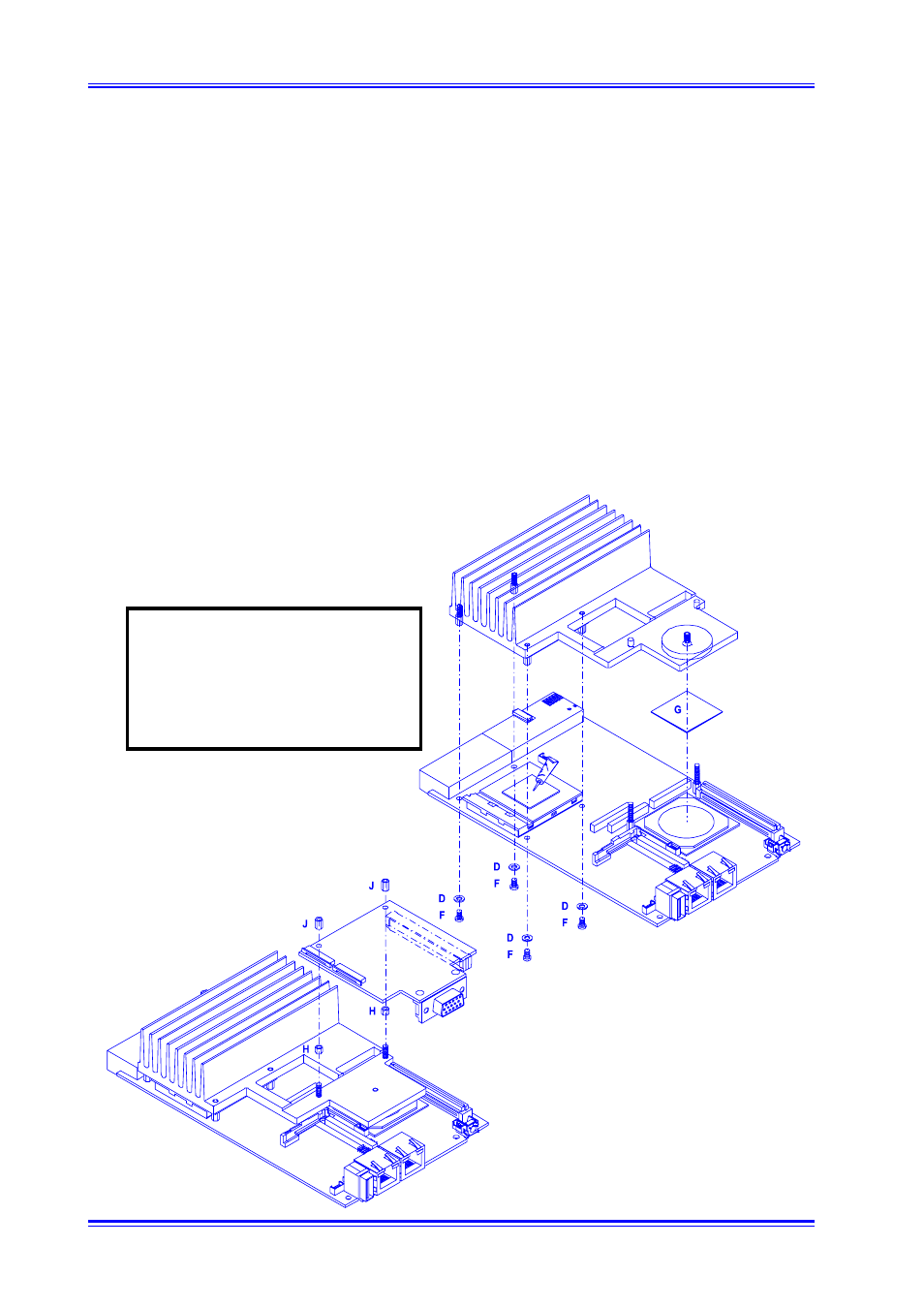

Figure 1.48 Construction of CPU with Heat-Sink Assembly
Note:
The dedicated carrier board - ICP-HD-3 is
mounted to the baseboard in exactly the
same fashion as illustrated in figure 1.47.
It has been omitted here for clarity.
