HP Compaq nx5000 series User Manual
Page 188
A–6
Maintenance and Service Guide

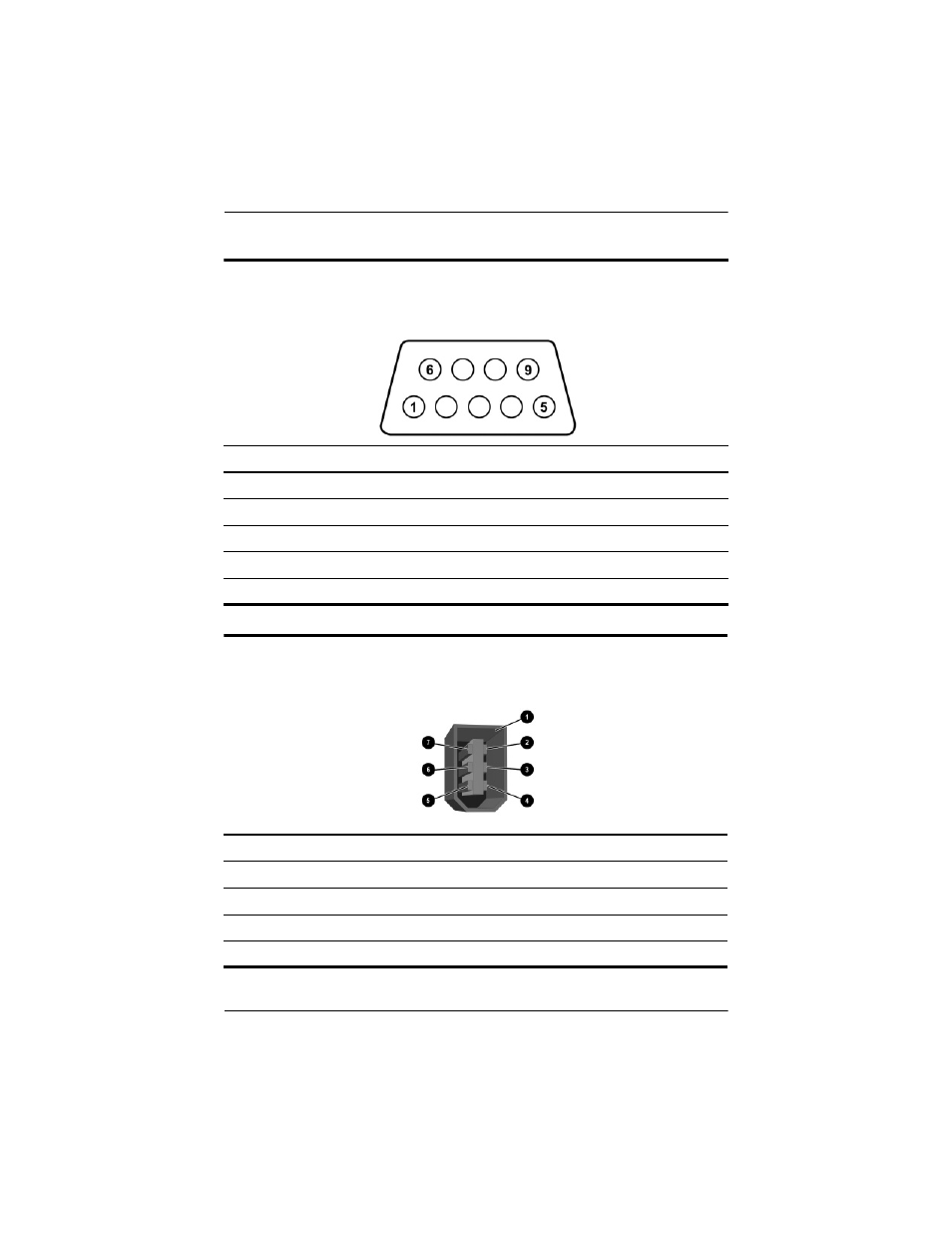

Connector Pin Assignments
Table A-9
Serial
Pin
Signal
Pin
Signal
1
Carrier detect
6
Data set ready
2
Receive data
7
Ready to send
3
Transmit data
8
Clear to send
4
Data terminal ready
9
Ring indicator
5
Ground
Table A-10
1394
Pin
Signal
Pin
Signal
1
Connector housing
5
TPA-
2
Ground
6
TPB-
3
TPB+
7
Power
4
TPA+
