Removal and Replacement Procedures
Maintenance and Service Guide 5–53
❏ Display assembly ( Section 5.16 )
❏ Top cover ( Section 5.17 )
❏ Speaker assembly cable ( Section 5.19 )
❏ LED board ( Section 5.20 )
❏ Bottom board ( Section 5.21 )
❏ Any Secure Digital (SD) cards in the SD Card slots
2. Remove the six PM2.5×5.0 screws 1 that secure the system
board to the notebook.
3. Remove the PM2.5x11.5 screw 2 that secures the hard drive
connector to the system board.
4. Use a 5.0-mm socket to remove the two HM5.0×9.0
standoffs 3 that secure the system board to the notebook.

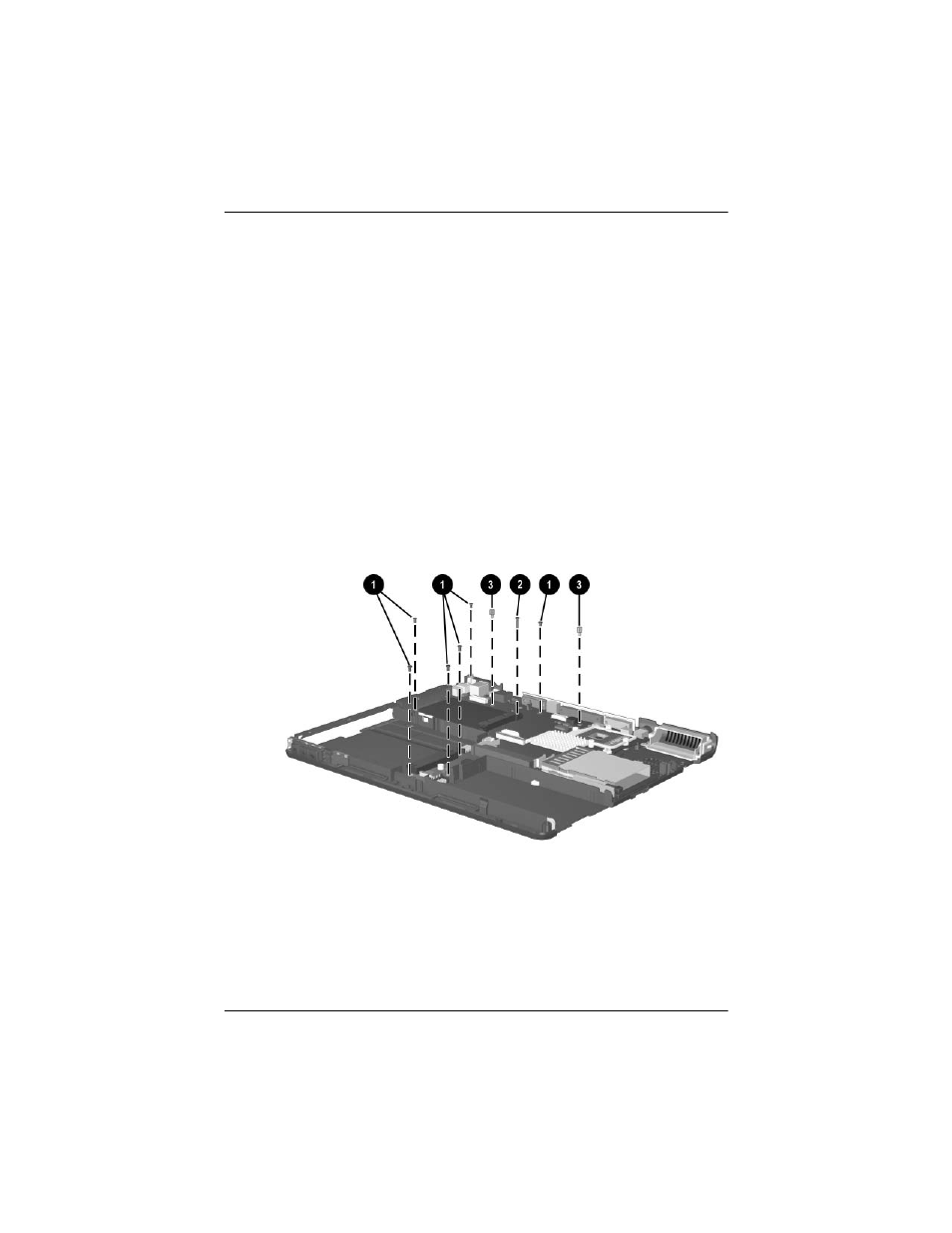

Removing the System Board Screws and Standoffs
