5–40

Maintenance and Service Guide

Removal and Replacement Procedures

3. Remove the following screws:

Ten T8M2.5×9.0 screws 1 along the front edge, sides,
rear corners and center of the bottom of the notebook.

Three T8M2.5x3.0 screws 2 from the MultiBay.

Two T8M2.5×3.0 screws 3 from the hard drive bay.

Two T8M2.5×5.0 screws 4 from the rear panel.

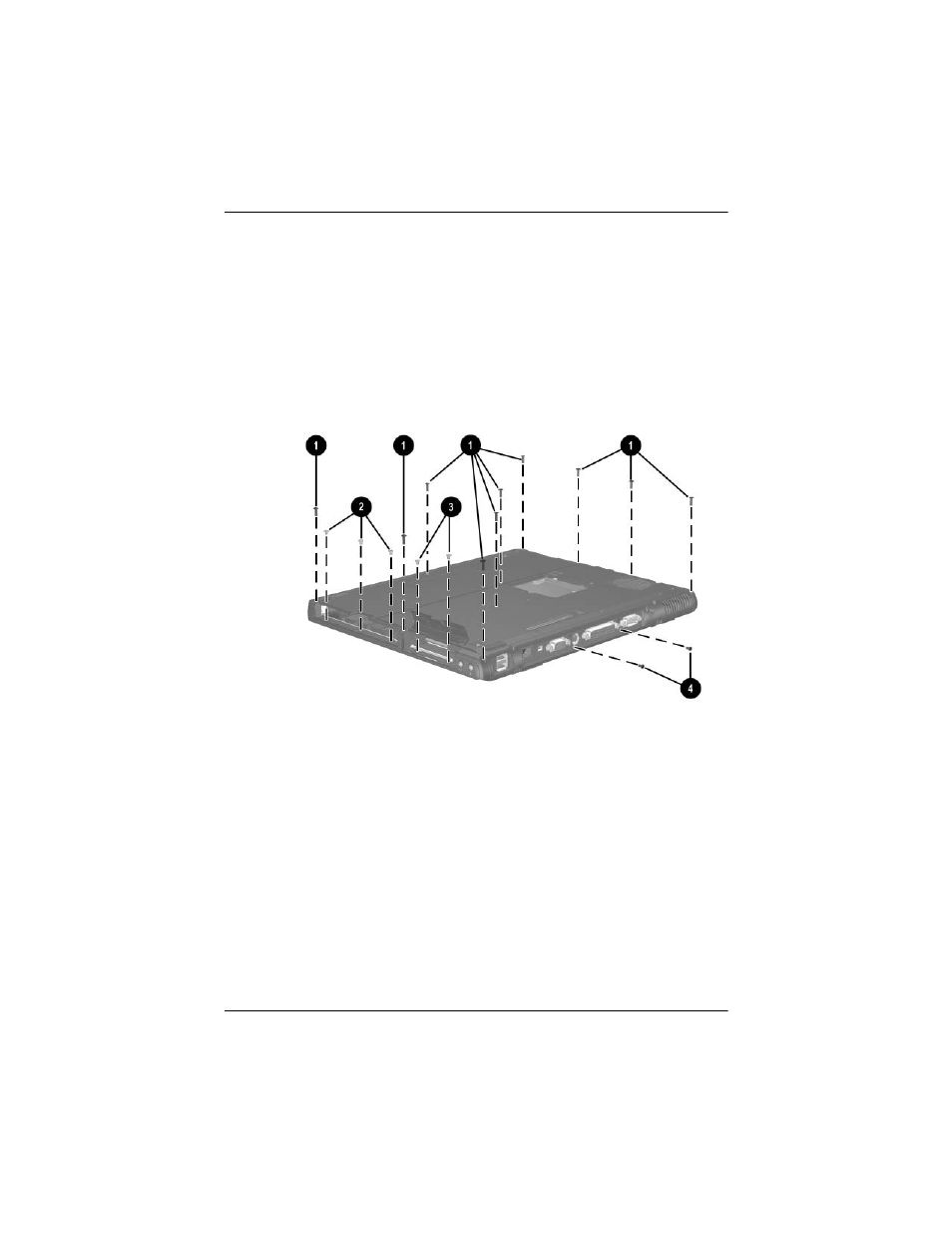

Removing the Top Cover Screws
