HP Compaq nx5000 series User Manual
Page 162
5–54
Maintenance and Service Guide
Removal and Replacement Procedures

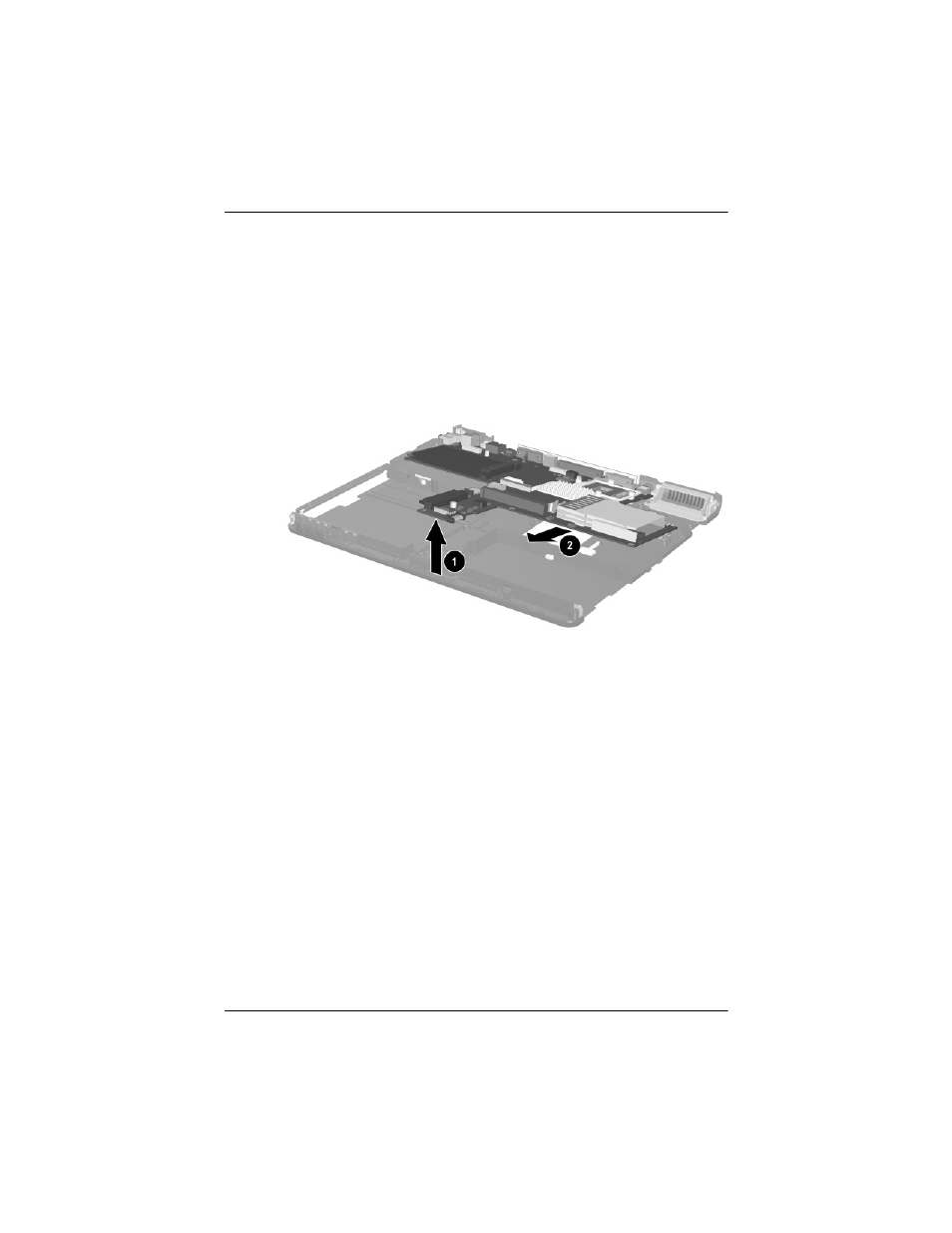

5. Lift the front edge of the system board 1 until it rests at
an angle.
6. Slide the system board toward you at an angle 2, and then
lift it straight up to remove it.
Removing the System Board
Reverse the above procedure to install the system board.
