HP Compaq nx5000 series User Manual
Page 154
5–46
Maintenance and Service Guide
Removal and Replacement Procedures
3. Release the ZIF connector 1 on the system board to which
the LED board cable is attached and disconnect the cable 2.
4. Lift up the tape 3 that holds the LED board connector cable
to the speaker.
5. Disconnect the speaker cable 4 from the connector on the
system board.

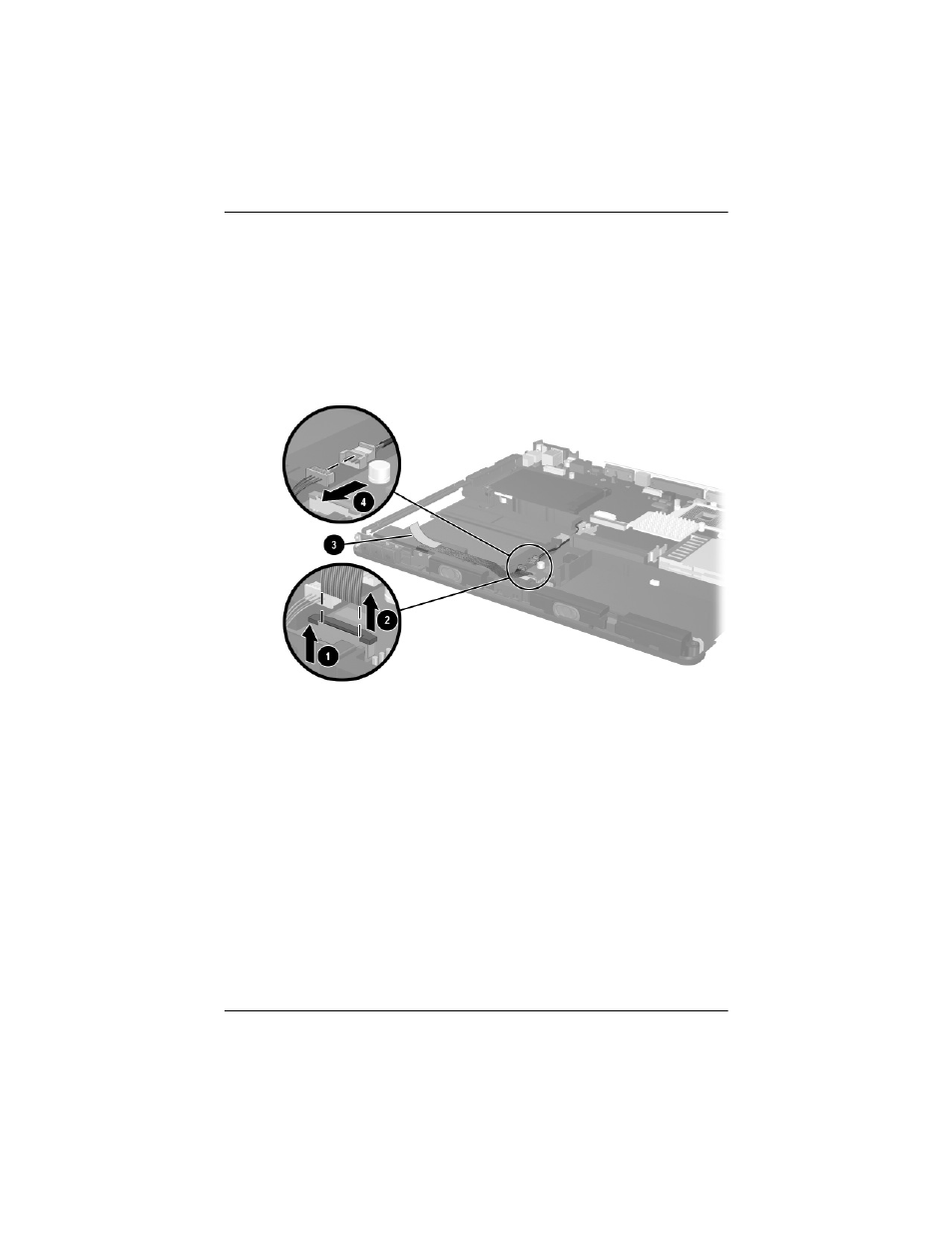

Releasing the LED board and Speaker Cables
