Connecting Cables
Video Connection
Video Connection
Model 744 Board Computers with on-board graphics circuit have the display
RAM and can be configured for several types of monitors. Graphic monitors
connect to the 15-pin video connector. Figure 4-5 shows the video connec-
tor, and Table 4-4 shows the video connector pinouts.

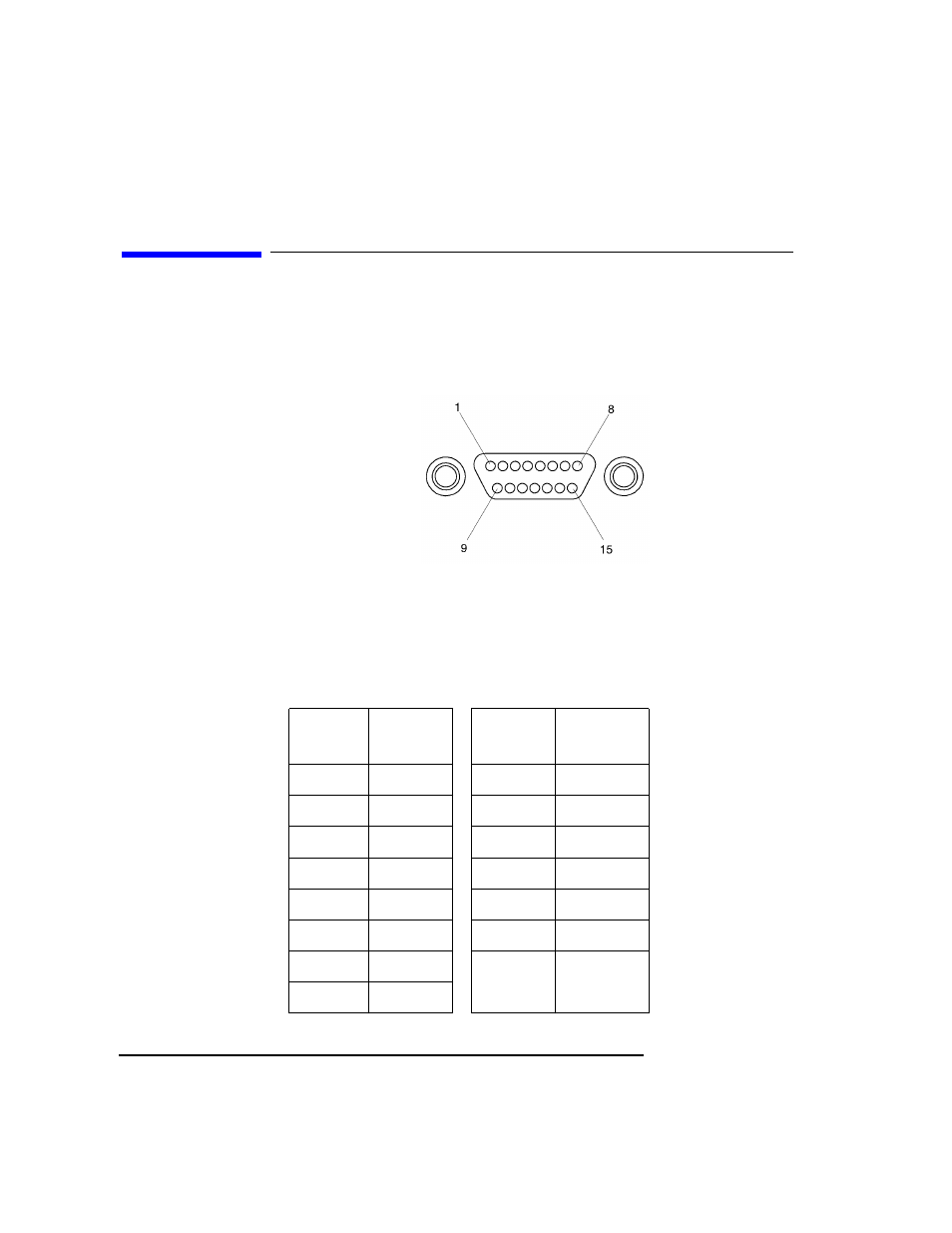

Figure 4-5
Video Connector
Table 4-4
Video Connector Pins and Signals
Pin
Number
Signal
Pin
Number
Signal
1
DDC
9
GND
2
GND
10
HSYNC
3
RED
11
+5V
4
GND
12
GND
5
GREEN
13
SSYNC
6
GND
14
GNC
7
BLUE
15
VSYNC
8
GND
