4-11

Connecting Cables

Audio Connection

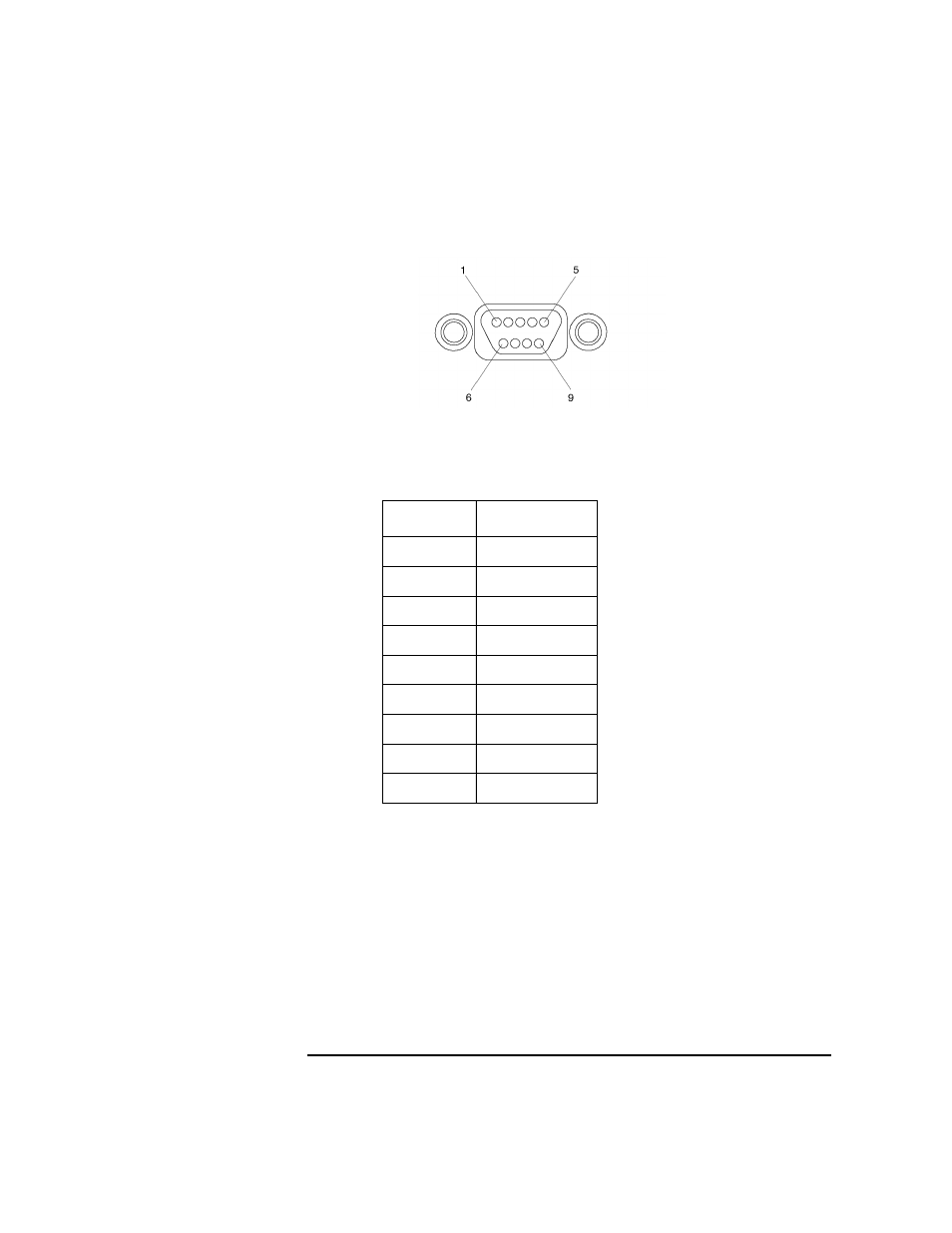

Figure 4-4

Audio Connector

Table 4-3

Audio Connector Pinouts

Pin Number

Signal

1

Mic GND

2

Line-in left

3

Line-in right

4

Headset right

5

Headset left

6

Mic-in A

7

Mic-in B

8

Line-in GND

9

Headset GND
