2-18

Installing Accessories

PMC Bridge Adapter and Expansion Adapter

6 If you are installing the PMC expansion adapter, refer to your third party

PMC card installation manual, and set any configuration switches or
jumpers that may be required for your application.

7 On the PMC expansion adapter, remove the bezel blank(s) from the sites

where you will be installing the PMC card(s). See Figure 2-8.

NOTE:

When installing a PMC card, ensure that the O-ring type gasket near the bezel
remains in place.

8 Install the PMC card(s) onto the expansion adapter by aligning the front

of the card with the front bezel, and onto the rear of the card with the con-
nectors and post. See Figure 2-8.

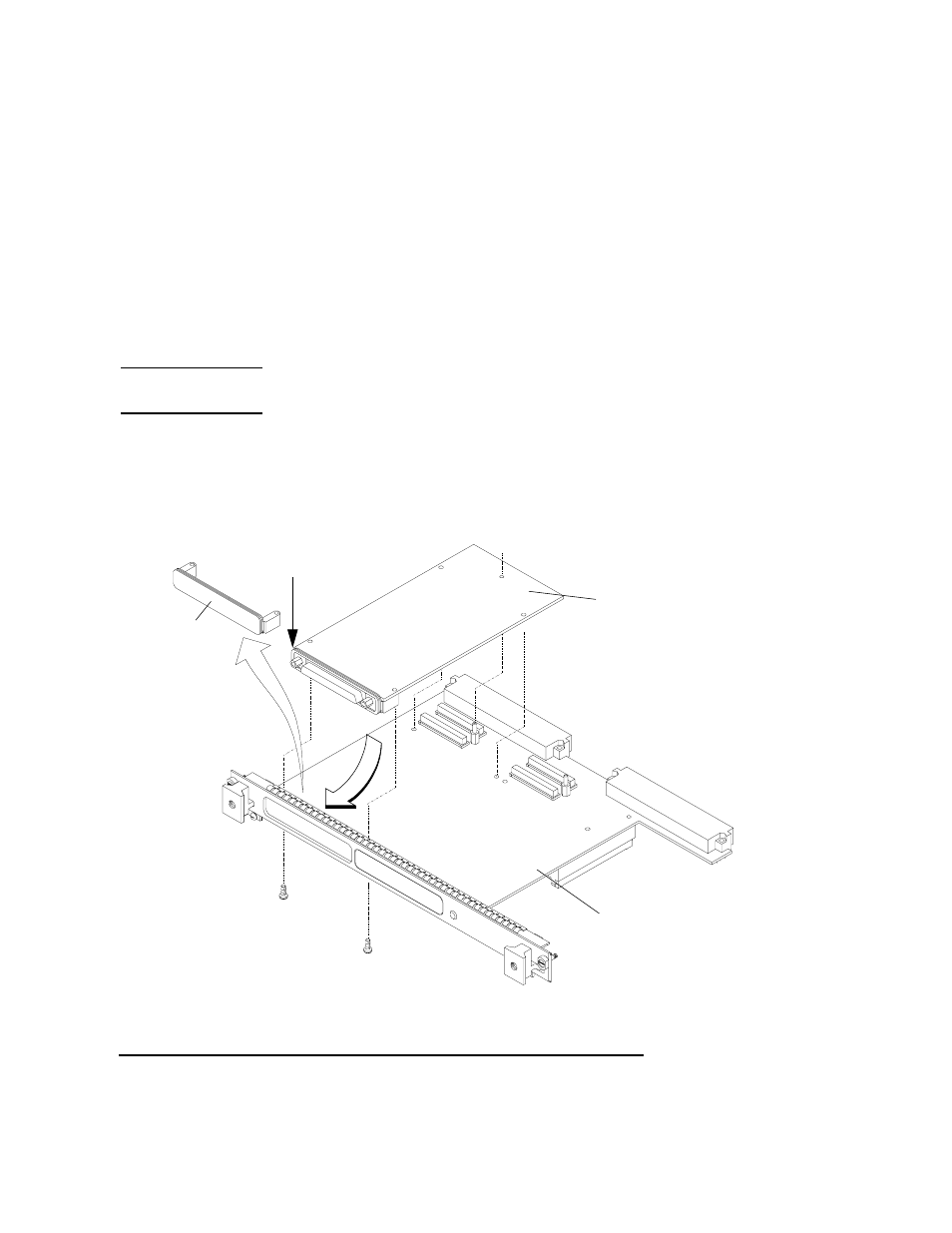

Figure 2-8

Installing a PMC Card onto the Expansion Adapter

Site 3

Site 4

O-Ring Gasket

Expansion Adapter

PMC Card

blank

Bezel
