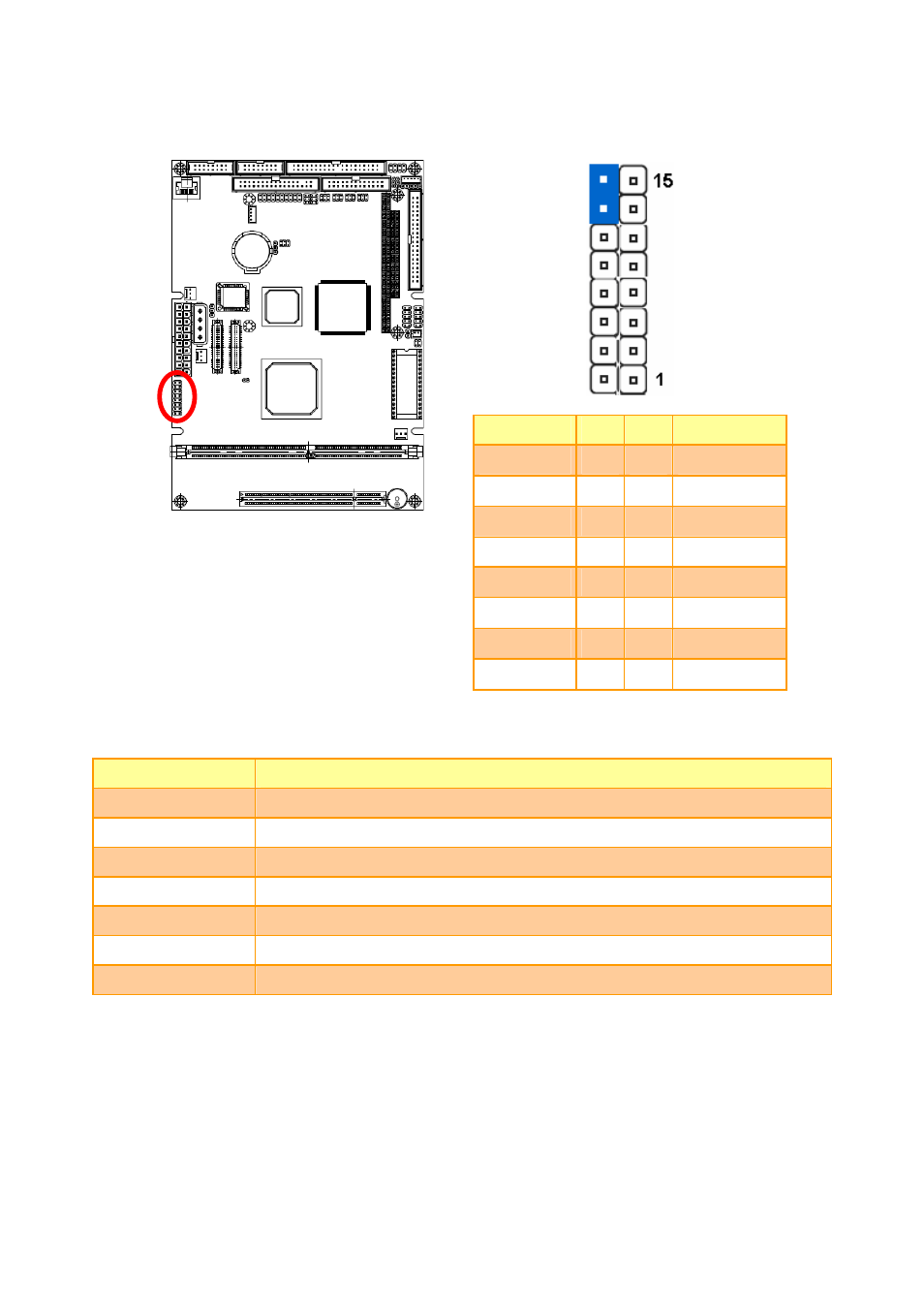

2.4.27 Front Panel Connector (JFP1)
Signal PIN PIN Signal
ALED 1 2 +5V
LLED 3 4 +5V
SLED 5 6 +5V
GND 7 8 +5V
GND 9 10 +5V
RESET 11 12 HD_LED
GND 13 14 SPK
PWR_BTN 15 16 +5V
2.4.27.1 Signal Description – Front Panel Connecter (JFP1)
PIN No. Description
1, 2 Active LAN LED
3, 4 10 Mbps LAN LED
5, 6 100 Mbps LAN LED
9, 11 Reset
10, 12 HDD LED
13, 15 Power SW
14, 16 Speaker
