ECM-5510
34 ECM-5510 User’s Manual
2.4.12

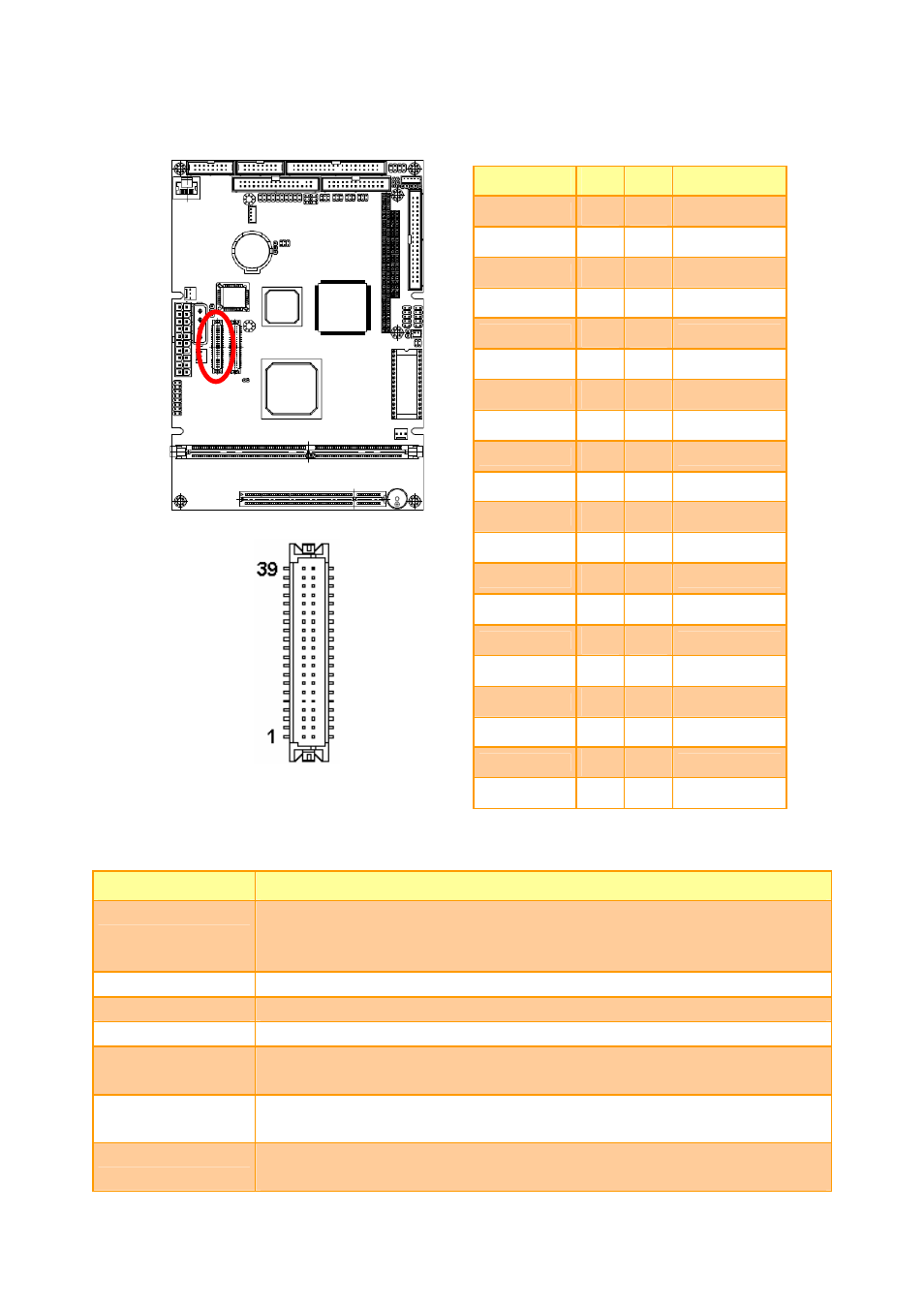

TFT Panel Connector (CN3)
Signal
PIN
PIN
Signal
ENBLK
39
40
NC
M
37 38
LP
SHFCLK
35
36
FLM
GND
33 34
GND
P22
31
32
P23
P20
29 30
P21
P18
27
28
P19
P16
25 26
P17
P14
23
24
P15
P12
21 22
P13
P10
19
20
P11
P8
17 18
P9
P6
15
16
P7
P4
13 14
P5
P2
11
12
P3
P0
9 10
P1
VCON
7
8
GND
+3.3V
5 6 +3.3V
GND
3
4
GND
+5V
1 2
+5V
2.4.12.1 Signal
Description
– TFT Panel Connecter (CN3)
Signal
Description
P [0:23]
Flat panel data output for 18/24 bit TFT flat panels. Refer to table below for
configurations for various panel types. The flat panel data and control outputs are
all on-board controlled for secure power-on/off sequencing
SHFCLK
Shift Clock. Pixel clock for flat panel data
LP
Flat panel equivalent of HSYNC (horizontal synchronization)
FLM
Flat panel equivalent of VSYNC (vertical synchronization)
M
Multipurpose signal, function depends on panel type. May be used as AC drive
control signal or as BLANK# or Display Enable signal
ENBKL
Enable backlight signal. This signal is controlled as a part of the panel power
sequencing
ENVEE
Enable VEE. Signal to control the panel power-on/off sequencing. A high level may
turn on the VEE (LCD bias voltage) supply to the panel
