ECM-5510

38 ECM-5510 User’s Manual

2.4.15

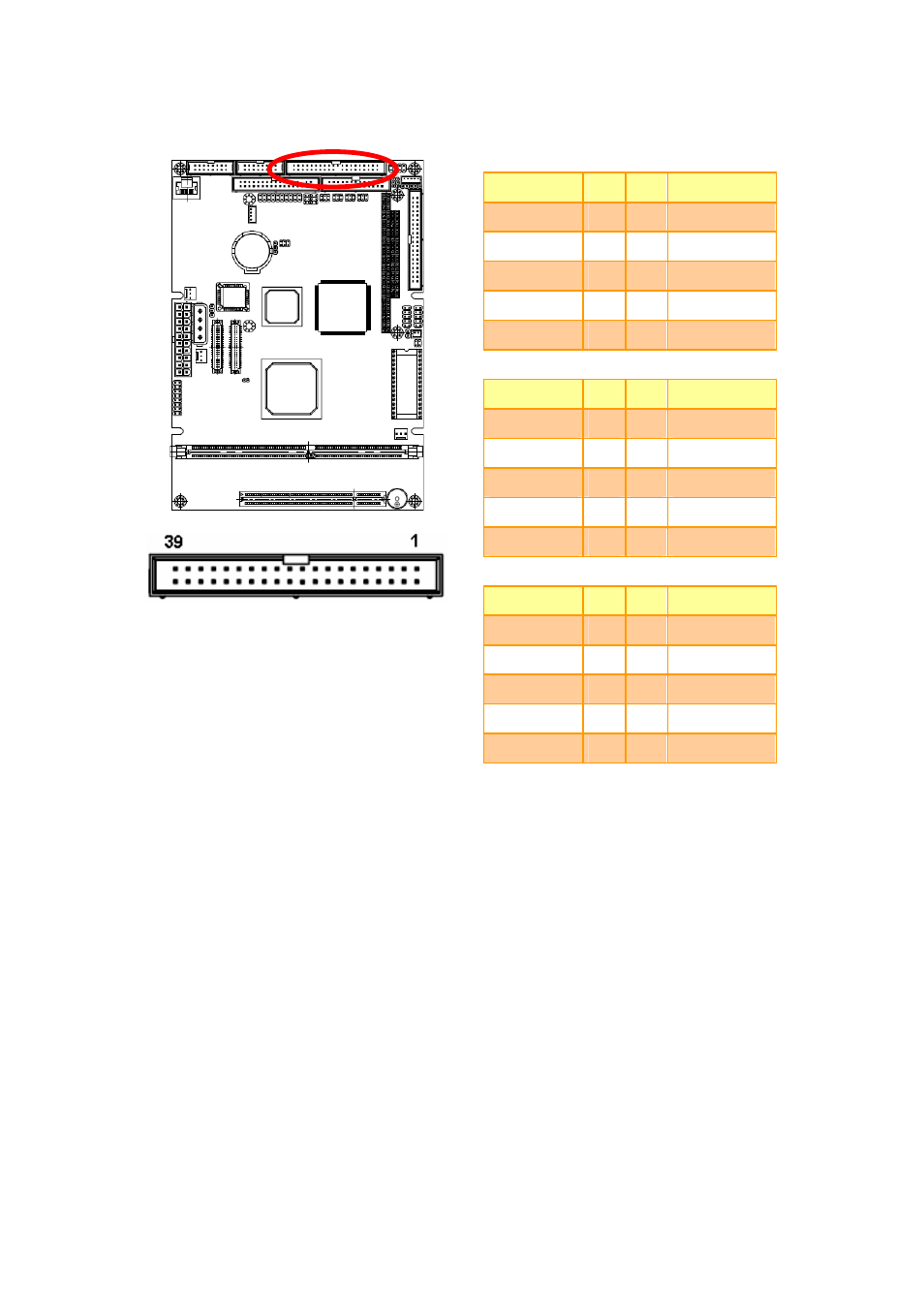

Serial Port 1, 3, 4 Connector (CN6)

Serial Port 1

(Pin 1-10)

Signal

PIN

PIN

Signal

DCD1

1

2

DSR1

RxD1 3

4 RTS1

TxD1

5

6

CTS1

DTR1 7

8

RI1/+5V/+12V

GND

9

10

NC

Serial Port 3

(Pin 21-30)

Signal

PIN

PIN

Signal

DCD3

21

22

DSR3

RxD3 23

24 RTS3

TxD3

25

26

CTS3

DTR3 27

28

RI3/+5V/+12V

GND

29

30

NC

Serial Port 4

(Pin 31-40)

Signal

PIN

PIN

Signal

DCD4

31

32

DSR4

RxD4 33

34 RTS4

TxD4

35

36

CTS4

DTR4 37

38

RI4/+5V/+12V

GND

39

40

NC
