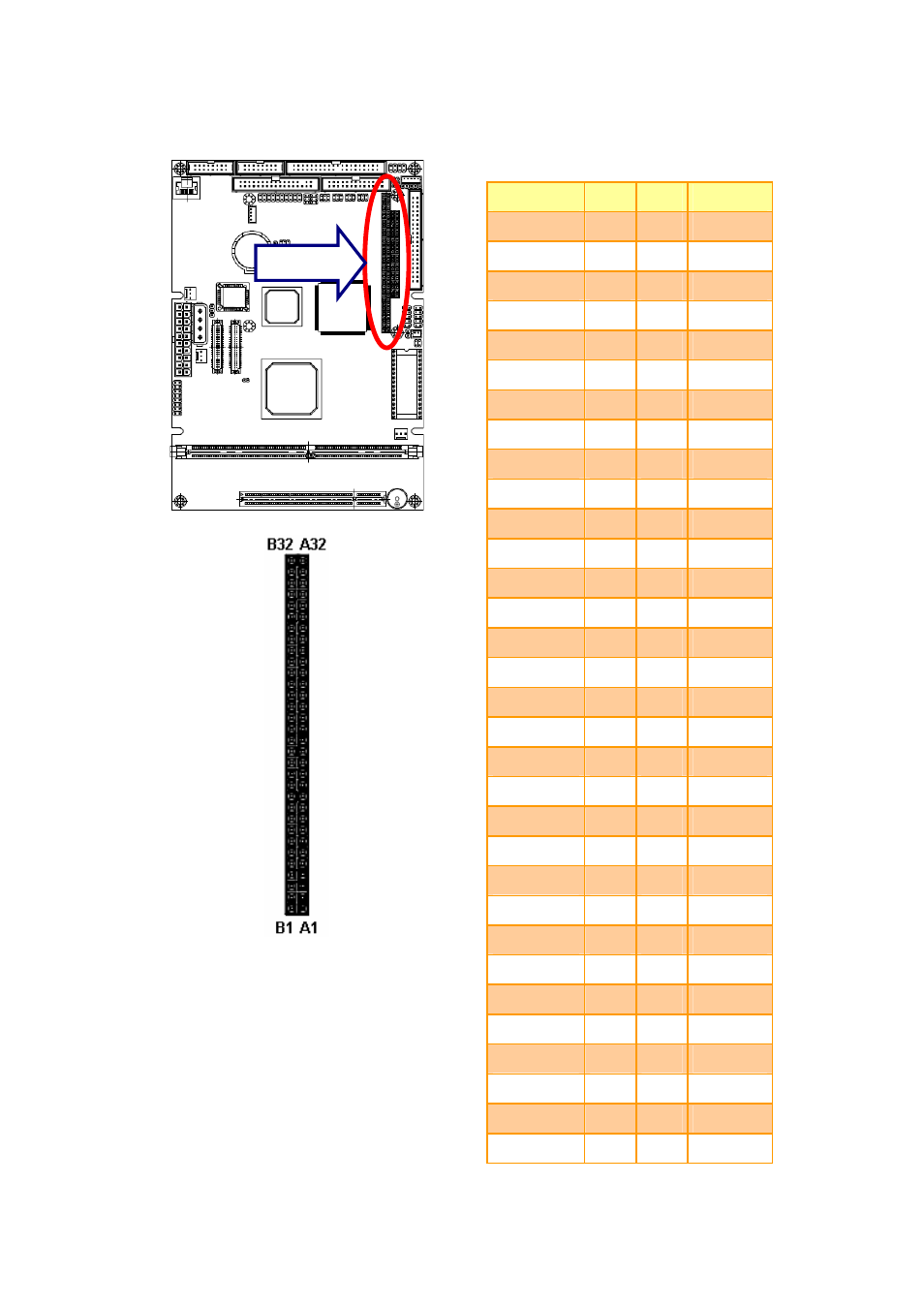

PC/104 Connector (CN7 + CN8)
CN7
Signal
PIN
PIN
Signal
GND
B32
A32
GND
GND B31
A31 SA0
OSC
B30
A30
SA1
+5V B29
A29 SA2
BALE
B28
A28
SA3
TC B27
A27
SA4
DACK2#
B26
A26
SA5
IRQ3 B25
A25 SA6
IRQ4
B24
A24
SA7
IRQ5 B23
A23 SA8
IRQ6
B22
A22
SA9
IRQ7 B21
A21 SA10
SYS_CLK
B20
A20
SA11
REFRESH#
B19
A19 SA12
DRQ1
B18
A18
SA13
DACK1# B17
A17 SA14
DRQ3
B16
A16
SA15
DACK3# B15
A15 SA16
IOR#
B14
A14
SA17
IOW# B13
A13 SA18
SMEMR#
B12
A12
SA19
SMEMW#
B11
A11 AEN
GND
B10
A10 IOCHRDY
+12V B9
A9 SD0
OWS#
B8
A8
SD1
-12V B7
A7 SD2
DRQ2
B6
A6
SD3
-5V B5
A5
SD4
IRQ9
B4
A4
SD5
+5V B3
A3 SD6
RESETDRV
B2
A2
SD7
GND B1
A1
IOCHK#
