HP D3604-90004 User Manual
Page 10
1 Introduction
4
Identifying Parts of the NetServer Storage System/6
Figure 1-1 shows the various parts of the storage system. Please take a few
moments to acquaint yourself with the parts of the storage system.
LED Readout
Chassis
Keylock
Drive
Activity
Light
Drive
Power
Light
Hot-Swap
Subsystem
Hot-Swap
Subsystem
Keylock
Power Indicator
Power Switch
Reset Switch

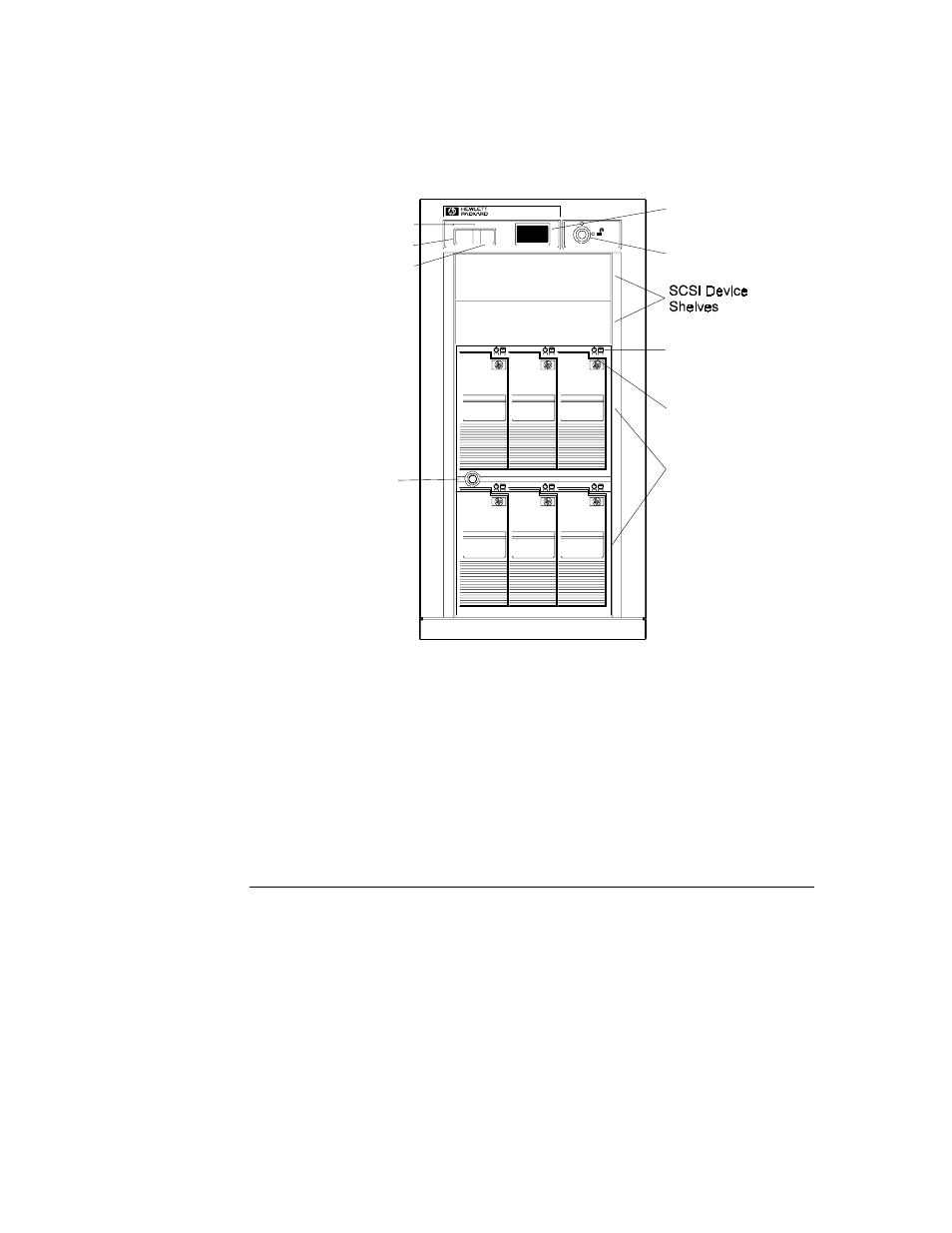

Figure 1-1. Front View of the Storage System
The parts of the system shown in Figure 1-1 are described below:
Power Indicator
Lights green when the power is on.
Power Switch
Switches the power to the cabinet on or off. This single
switch controls the power to all of the storage devices.
Reset Switch
Provides several functions: performs a self-test, performs a
power supply reset or changes the unit identification
number.
