Heat & Glo • LUX60 • 4062-116 • Rev. G • 4/11 54
17 17
Reference Materials
19 1/2 in.
(495 mm)
29 1/2 in.
(749 mm)
57 3/4 in.
(1466 mm)
66 1/4 in.
(1684 mm)
35 5/8 in.
(904 mm)
15 1/8 in.
(385 mm)
9 in.
(229 mm)
2 1/4 in.
(57 mm)
40 1/8 in.
(1018 mm)
49 in.
(1244 mm)
35 5/8 in.
(904 mm)
85 5/8 in.
(2175 mm)
2 7/8 in.
(72 mm)
9 1/4 in.
(235 mm)
25° TYP
Electrical
Hookup
Gas Line
52 in.
(1321 mm)

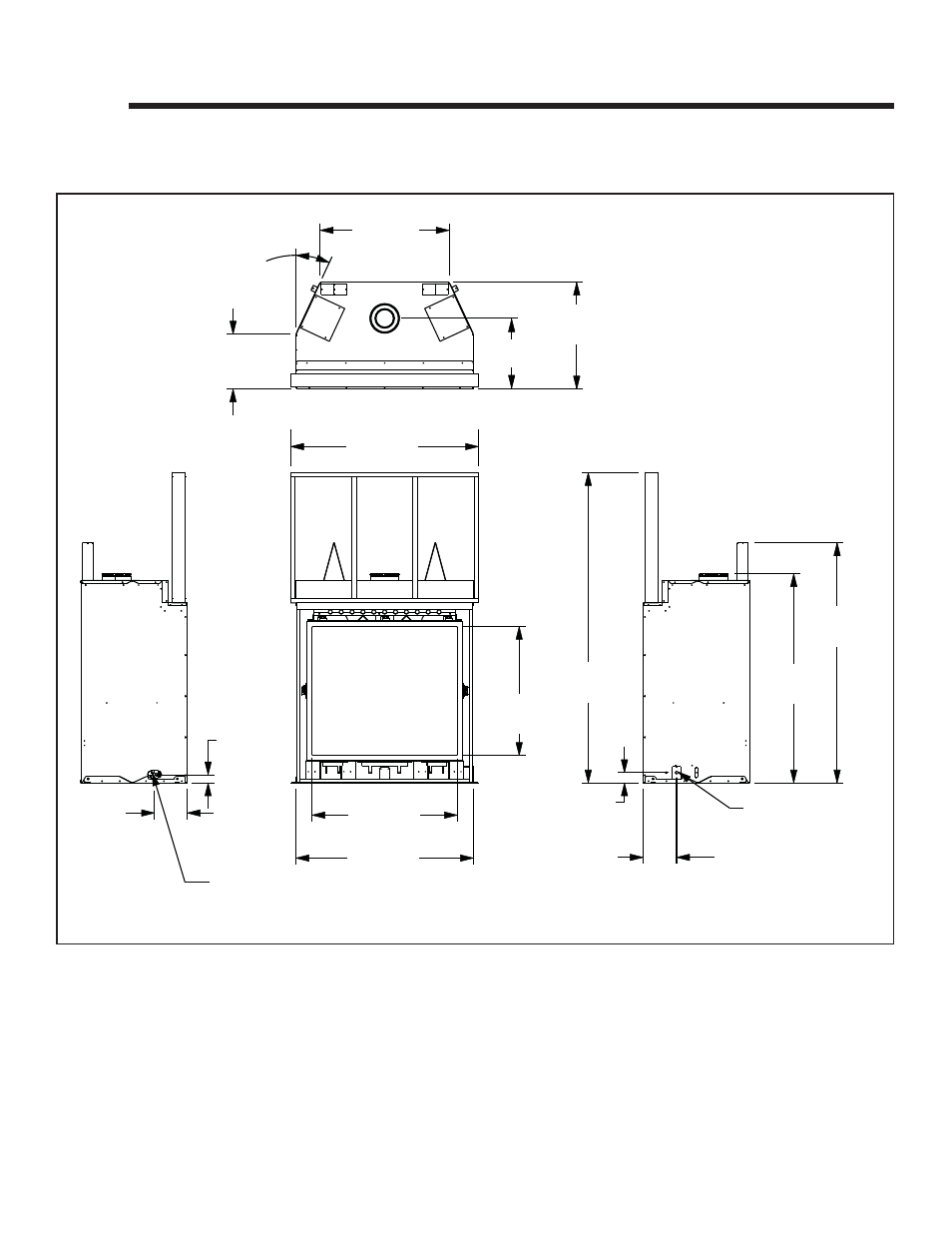

A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5.
Figure 17.1 Appliance Dimensions
