Heat & Glo • LUX60 • 4062-116 • Rev. G • 4/11

45

A. Wiring Requirements

NOTICE:

This appliance must be electrically wired

and grounded in accordance with local codes or, in the
absence of local codes, with
National Electric Code
ANSI/NFPA 70-latest edition
or the Canadian Electric
Code CSA C22.1.

• Wire the appliance junction box to 110-120 VAC. This is

required for use of optional accessories.

A 110-120 VAC circuit for this product must be protected
with ground-fault circuit-interrupter protection, in
compliance with the applicable electrical codes, when
it is installed in locations such as in bathrooms or near
sinks.

• Low voltage and 110 VAC voltage cannot be shared

within the same wall box.

13

13

Electrical Information

ORANGE

GREEN

GROUND

BLACK

WHITE

ORANGE

FLAME

SOLENOID

IPI

VALVE

GREEN

IPI

MODULE

LUX

CONTROL

MODULE

LEARN

BUTTON

POWER

SUPPLY

BROWN

3V DC

BROWN

BROWN

RED

BLACK

4 BLACK Wires

1
2
3
4
5
6
7
8

4 BL

AC

K Wires

4 BL

AC

K Wires

ORANGE

BL

AC

K

F
M
F
M

B. Electrical Service and Repair

WARNING! Risk of Shock!

Label all wires prior to

disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation. Verify proper
operation after servicing.

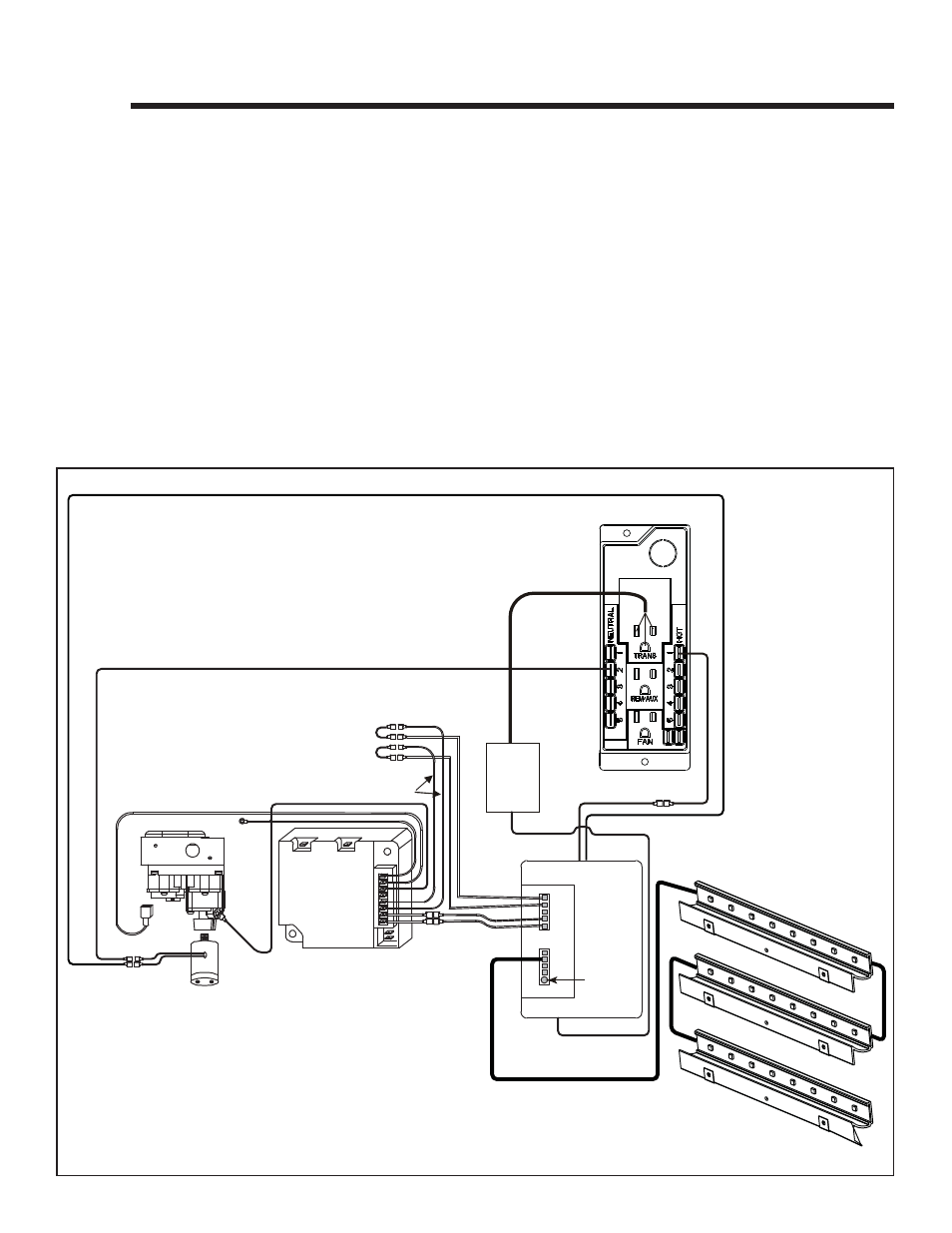

Figure 13.1 Wiring Diagram

WARNING! Risk of Shock!

Replace damaged wire with

type 105° C rated wire. Wire must have high temperature
insulation.

WARNING! Risk of Shock or Explosion!

DO NOT wire

110V to the valve or to the appliance wall switch. Incorrect
wiring will damage controls.
