Heat & Glo • LUX60 • 4062-116 • Rev. G • 4/11 24
Combustible flooring may be installed
next to the front of the appliance.
86 in.
2184 mm)
6 in.
(152 mm)
minimum
52 in.
(1321 mm)
Drywall
1-1/2 in.
(38 mm)
0 in.
1-1/2 in.
(38 mm)
0 in.
10 in.
(254 mm)
minimum
42 5/8 in. (1083 mm)
fireplace opening
to ceiling
Steel Stud
Assembly
36 in.
(914 mm)
Combustible Object
1-1/2 in.
(38 mm)
30.5 in. (775 mm) *
minimum
rough opening
depth
Note: The appliance MUST be installed on a minimum
6 in. (152 mm) high platform to accommodate the front
face.
* If the inside of the chase is to be finished, add the
thickness of the finish material to this dimension.

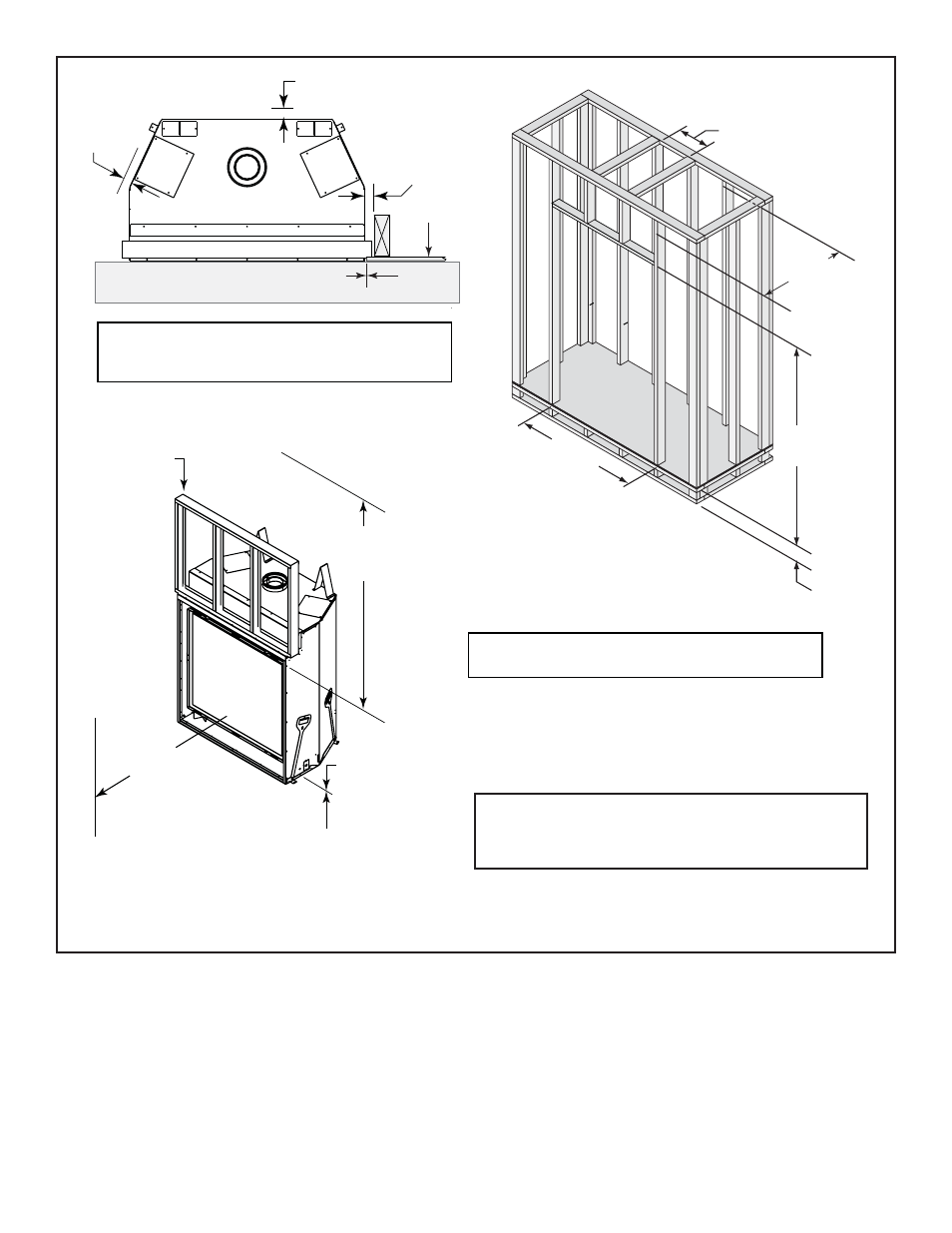

Figure 5.3 Clearances to Combustibles
IMPORTANT NOTICE! When setting this
appliance, you MUST consider what type of wall
fi nishing will be used. Refer to Section 14.
