Heat & Glo • LUX60 • 4062-116 • Rev. G • 4/11

44

D. Install Flame Solenoid

Remove the screw and knob from the variable regulator
and discard.

• Remove the nut from the regulator and discard.
• Remove the bag containing a washer and blue and red

plungers from the side of the fl ame control solenoid.

• Place washer on fl ame control solenoid.
• Insert the correct plunger (blue - natural gas, red -

propane) into the fl ame control solenoid.

• Thread

the

fl ame control solenoid with correct plunger

into the threaded hole in the variable regulator. Turn
into valve approximately two full turns. Do not tighten
or damage may occur.

• Connect orange wires from control box to the fl ame

control solenoid.

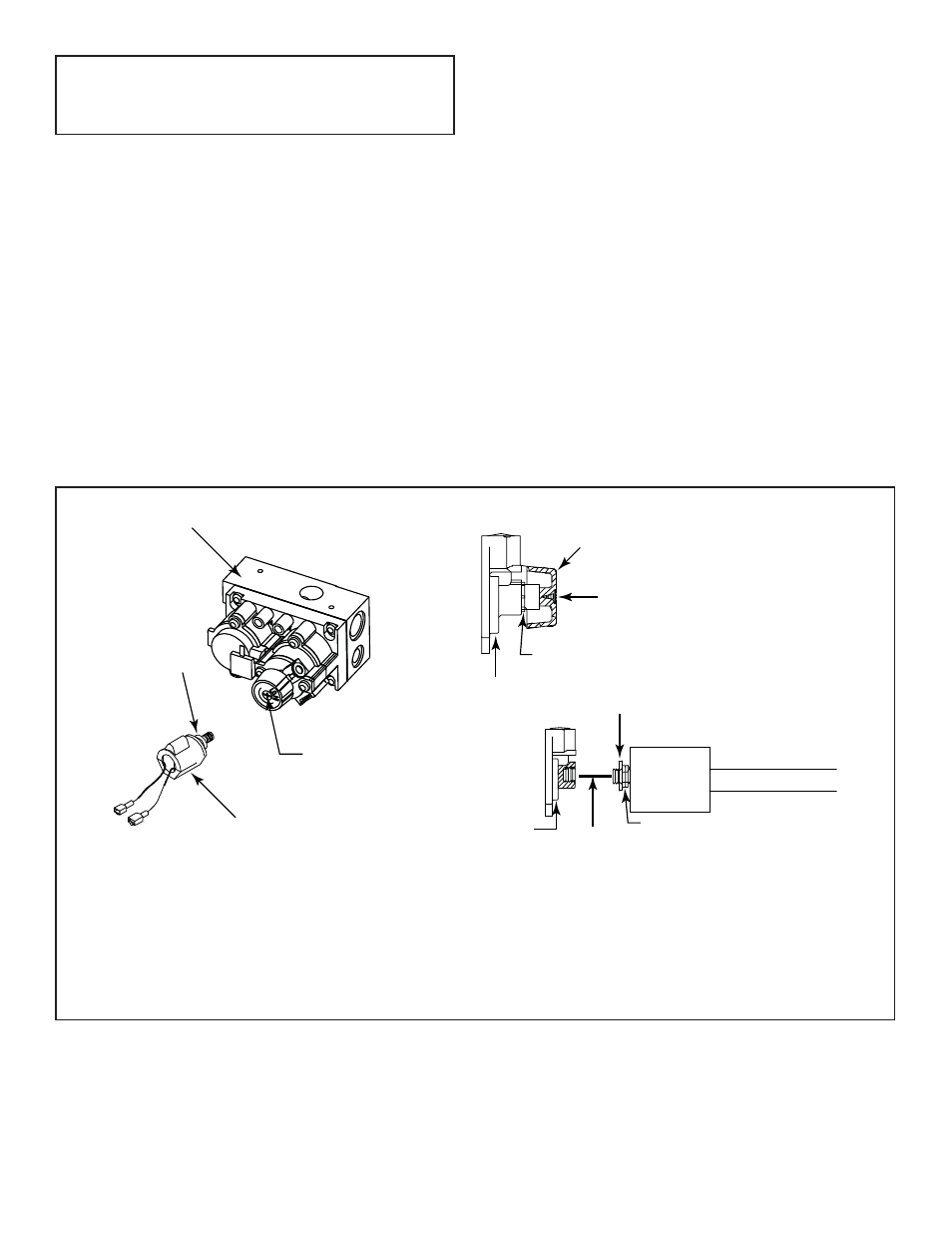

Figure 12.1 Install the Flame Solenoid

E. Setting Flame Height/Manifold Pressure

(To be done by a qualifi ed service technician.) Upon initial
power-up of this device, valve pressure must be set for
fl ame adjustment.

• Loosen output pressure tap on valve and connect with

pressure manometer.

• Press

fl ame button once; fi replace will light with fl ames

on high.

• Turn solenoid clockwise to increase pressure,

counterclockwise to decrease pressure until manifold
pressure on high is 3.5 in. water column for natural gas
(NG), 10.0 in. water column for propane (LP).

• Once pressure is achieved spin jam nut on solenoid

tight against regulator face to prevent rotation. Do not
overtighten.

• Press

fl ame button twice to turn fi replace off.

• Remove manometer tube and tighten or close pressure

tap. Use a commercially available, noncorrosive leak
check solution to carefully check the pressure tap for
leaks. Be sure to rinse off all leak check solution following
testing.

Gas Control

Valve

Variable

Regulator

Flame Control

Solenoid

Washer

Variable

Regulator

Variable

Regulator

Washer

Plunger

Jam Nut

Nut

Screw

Knob

Solenoid

Note: The fl ame solenoid is assembled and preset from
the factory. Should it become necessary to reinstall the
fl ame solenoid, refer to the follwing sections (12.D & 12.E)
for proper reinstallation.
