Heat & Glo • LUX60 • 4062-116 • Rev. G • 4/11 30

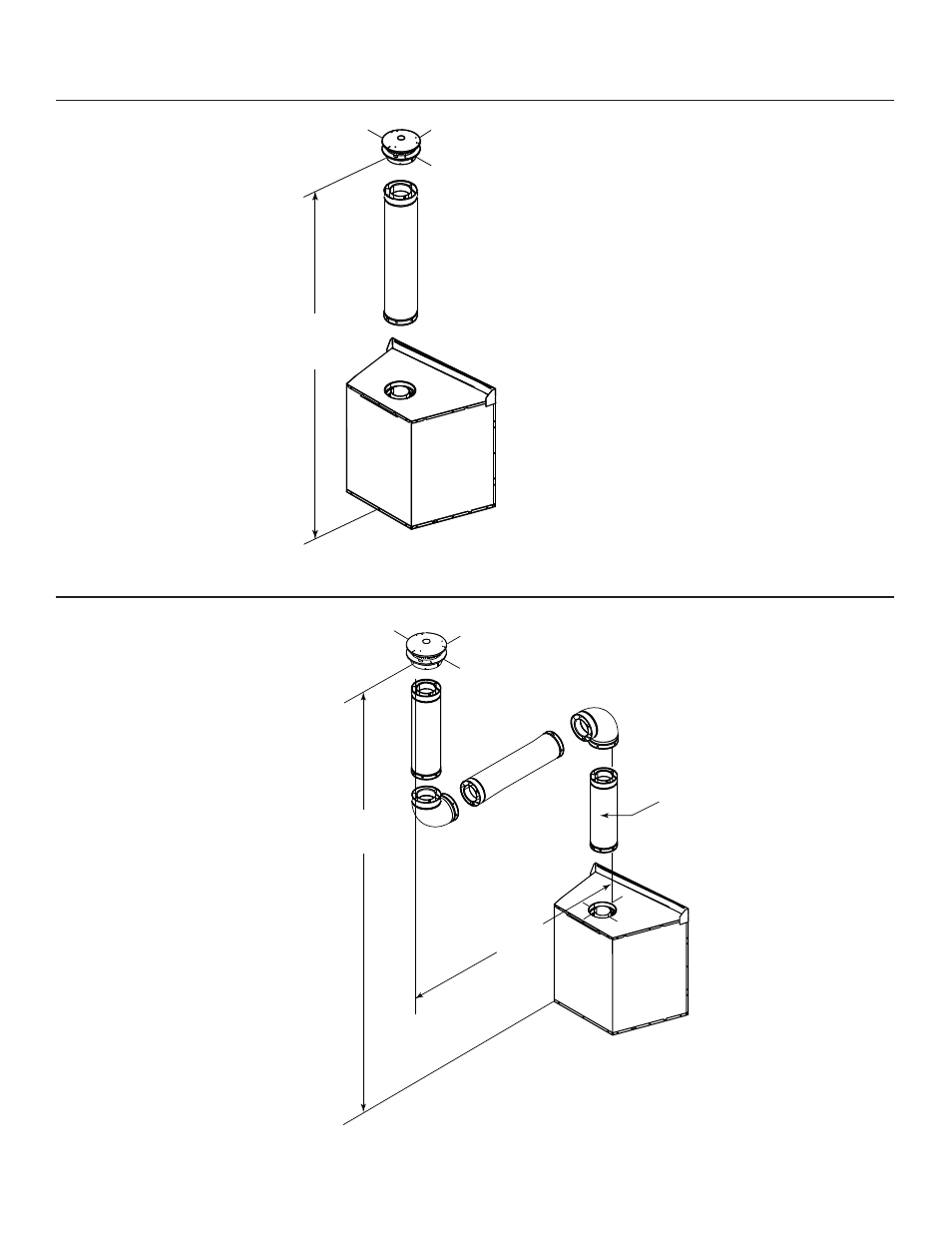

2. Top Vent - Vertical Termination
No Elbow
Figure 7.7
Figure 7.8
Two Elbows
12 ft (3.66 m) min.
60 ft (18.29 m) max.
12 ft (3.66 m) min.
60 ft (18.29 m) max.
Maximum horizontal
run is 100% of
vertical, but cannot
exceed 18 ft (5.49 m)
3 ft m (.91
