Heat & Glo • LUX60 • 4062-116 • Rev. G • 4/11

46

C. Junction Box Installation

If the box is being wired from the OUTSIDE of the appli-
ance:

Remove the cover plate located on the outer shell - right
side (see Figure 13.2).

• Install the supplied Romex™ connector in the cover

plate.

• Feed the necessary length of wire through the

connector.

• Make all necessary wire connections and reattach the

cover plate to the outer shell.

If the box is being wired from the INSIDE of the appli-
ance:

Remove the screw attaching the junction box/receptacle
to the outer shell, rotate the junction box inward to
disengage it from the outer shell.

• Pull the electrical wires from outside the appliance

through this opening into the valve compartment.

• Feed the necessary length of wire through the

connector.

Make all necessary wire connections to the junction box/
receptacle and reassemble the junction box/receptacle
to the outer shell.

WHT

WHT

BLK

BLK

GRN wire
inside box

Copper
ground attached
to GRN screw with
GRN wire

14/2WG

Cover Plate
outside firebox

Romex
Connector

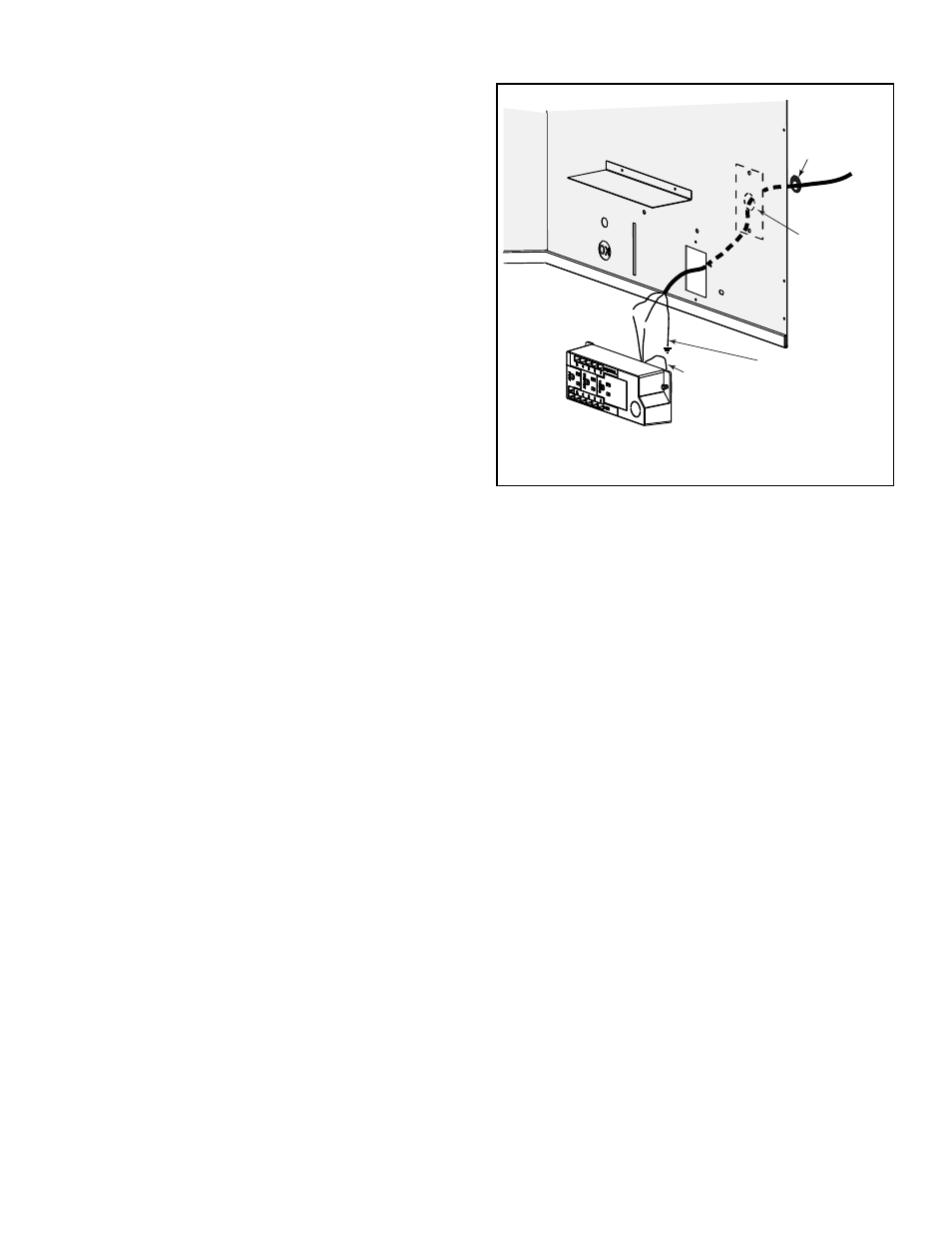

Figure 13.2 Junction Box Detail
