Heat & Glo • LUX60 • 4062-116 • Rev. G • 4/11

20

Vertical Termination Cap

Section 10

Storm Collar

Section 10

Vent pipe penetrates roof,
preverably without affecting
roof rafters.
Section 8

Attic insulation shield (not shown)
must be used here to keep insulation
away from vent pipe if attic is insulated.
Section 8

Framing headed off

in ceiling joists

Section 8

Hearth Extension

(not required)

Gas Line

Section 12

Framing/Steel Stud Assy

Section 5

Vent Pipe

Sections 7, 8, 10

Ceiling firestop
on floor of attic

Section 8

Noncombustible roof
flashing maintains minimum
clearance around pipe
Section 10

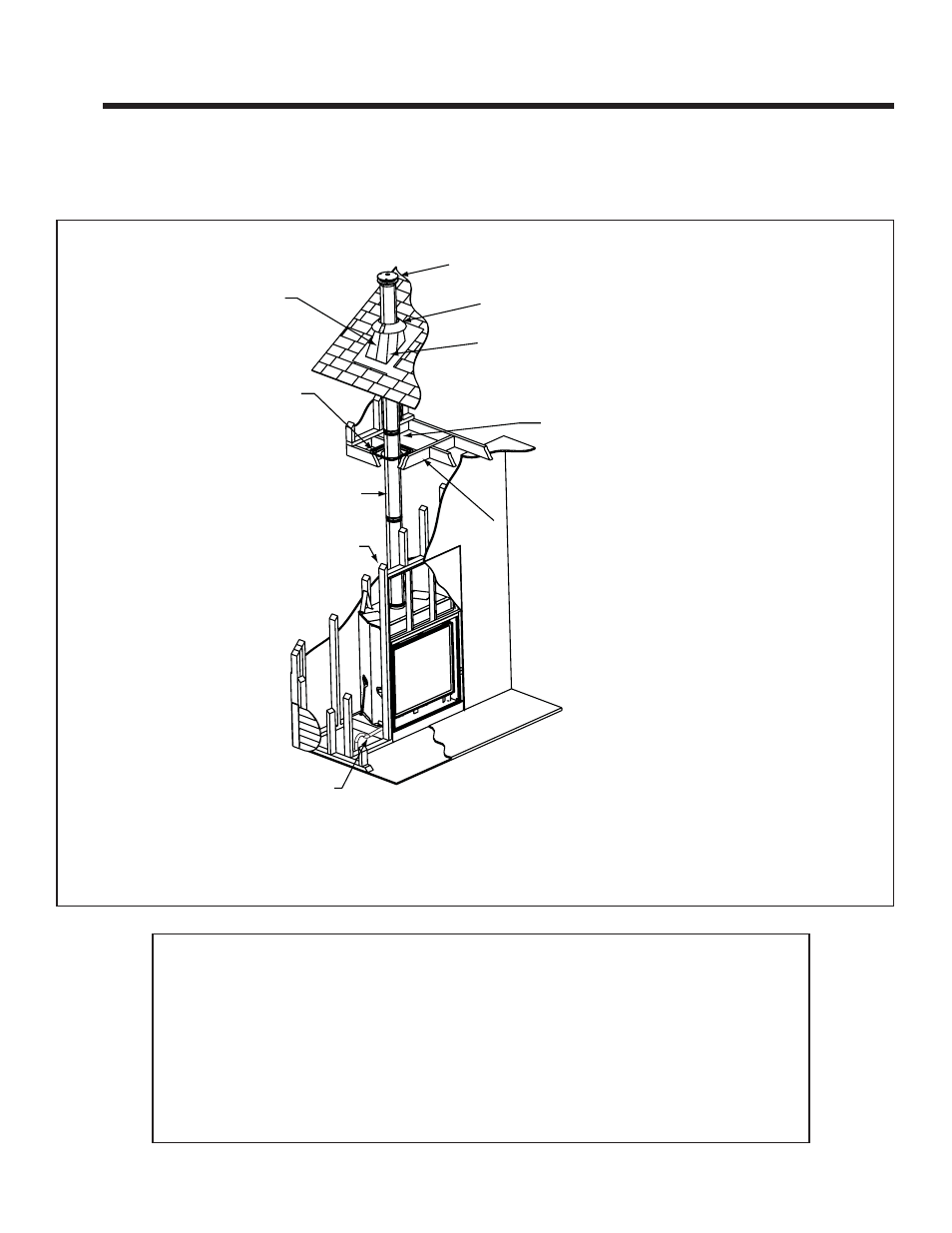

A. Typical Appliance System

NOTICE:

Illustrations and photos refl ect typical installations and are for design purposes only. Illustrations/diagrams are not

drawn to scale. Actual product may vary from pictures in manual

Figure 4.1

Typical System

4

4

Getting Started

Installer Guide

Hearth & Home Technologies disclaims any responsibility for, and the warranty will be voided by, the
following actions:

• Installation and use of any damaged appliance or vent system component.

• Modifi cation of the appliance or vent system.

• Installation other than as instructed by Hearth & Home Technologies.

• Improper positioning of the decorative steel log assembly or the glass door.

• Installation and/or use of any component part not approved by Hearth & Home

Technologies.

Any such action may cause a fi re hazard.
