Heat & Glo • LUX60 • 4062-116 • Rev. G • 4/11

31

No combustible
framing to be
located within
shaded area.

1-1/2 in. (13 mm)
minimum to
perpendicular
wall.

WA

L

L

Cement
Board

3 in.

(76 mm)

Steel Stud

Assembly

Air space clearance to
bottom and sides of
horizontal pipe must be
at least 1 in. (25 mm)

12 in.

(305 mm)

6 in.

(152 mm)

10 in.

(254 mm)

Vent Framing Hole

102 1/2 in.

(2604 mm)

from center of

pipe to bottom

of appliance

Framing should be

constructed of

2x4 lumber.

The center of the

framing hole is

1 in. (25 mm) above

the center of horizontal

vent pipe.

A. Pipe Clearances to Combustibles

Refer to Fiture 8.1.

WARNING! Risk of Fire!

Maintain air space clearance to

vent. DO NOT pack insulation or other combustibles:

• Between

ceiling

fi restops

• Between wall shield fi restops
• Around vent system

Failure to keep insulation or other material away from
vent pipe may cause over heating and fi re.

8

8

Vent Clearances and Framing

B. Wall Penetration Framing

Refer to Figure 8.2.

Combustible Wall Penetration

Whenever a combustible wall is penetrated, you must
frame a hole for the wall shield fi restop(s). The wall shield
fi restop maintains minimum clearances and prevents cold
air infi ltration.

• The opening must be framed on all four sides using the

same size framing materials as those used in the wall
construction.

• A wall shield fi restop is required on one side only on

interior walls. If your local inspector requires a wall shield
fi restop on both sides, then both wall shield fi restops
must have a heat shield attached to them.

• See Section 10.I. for information for regarding the

installation of a horizontal termination cap.

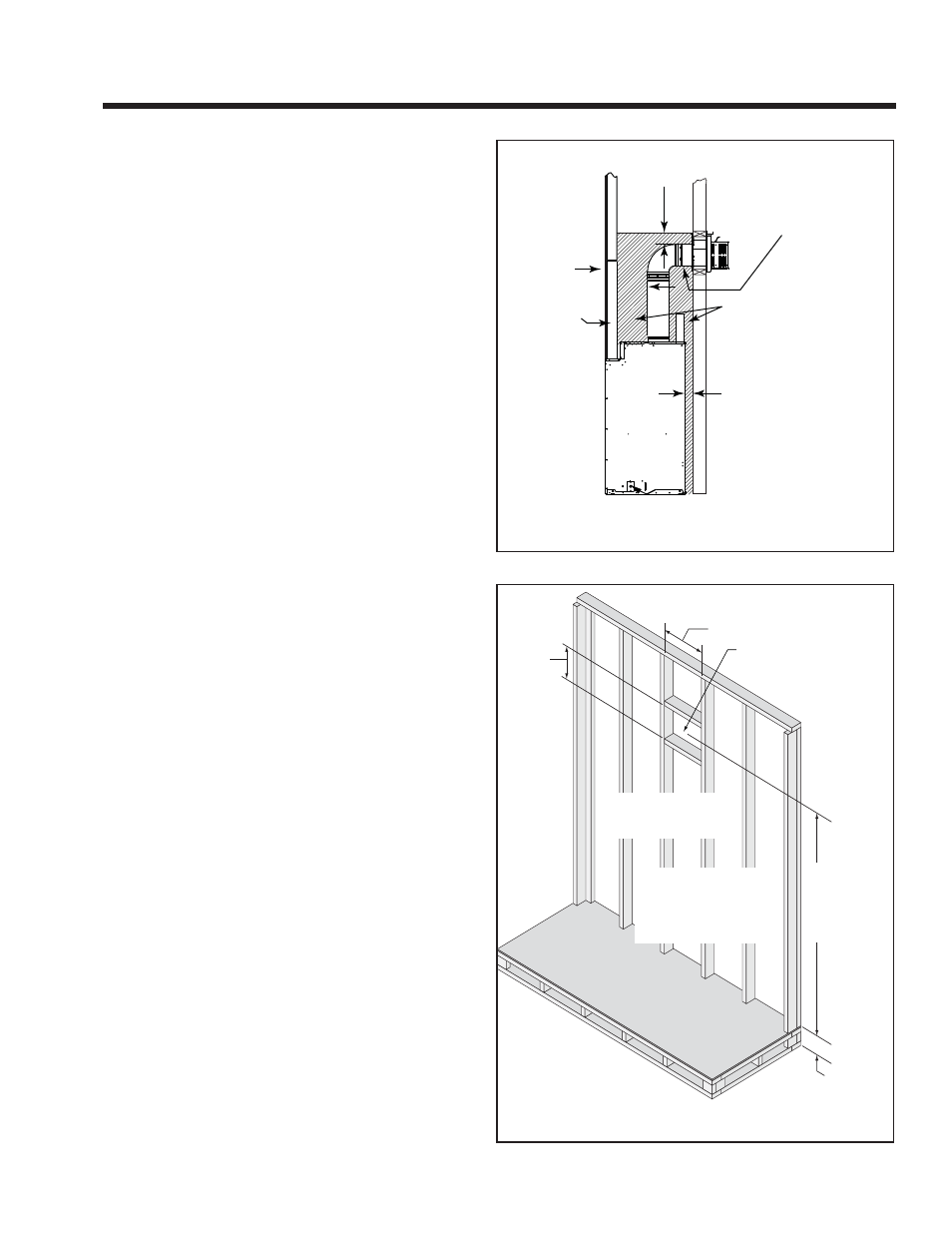

Figure 8.2 Wall Penetration

Figure 8.1 Horizontal Venting Clearances To Combustible Materi-
als

Noncombustible Wall Penetration

If the hole being penetrated is surrounded by noncombus-
tible materials such as concrete, a hole with diameter one
inch greater than the pipe is acceptable.

Whenever a noncombustible wall is penetrated, the wall
shield fi restop is only required on one side and no heat
shield is necessary.
