F. Assemble and Install Storm Collar

CAUTION! Risk of Cuts, Abrasions or Flying Debris.

Wear protective gloves and safety glasses during installa-
tion. Sheet metal edges are sharp.

• Connect the halves of the storm collar with two screws

(see Figure 10.13).

• Wrap the storm collar around the exposed pipe section

closest to the roof and align brackets. Insert a bolt
(provided) through the brackets and tighten the nut to
complete the storm collar assembly (Figure 10.14). Make
sure the collar is tight against the pipe section.

• Slide the assembled storm collar down the pipe section

until it rests on the roof fl ashing.

• Caulk around the top of the storm collar.

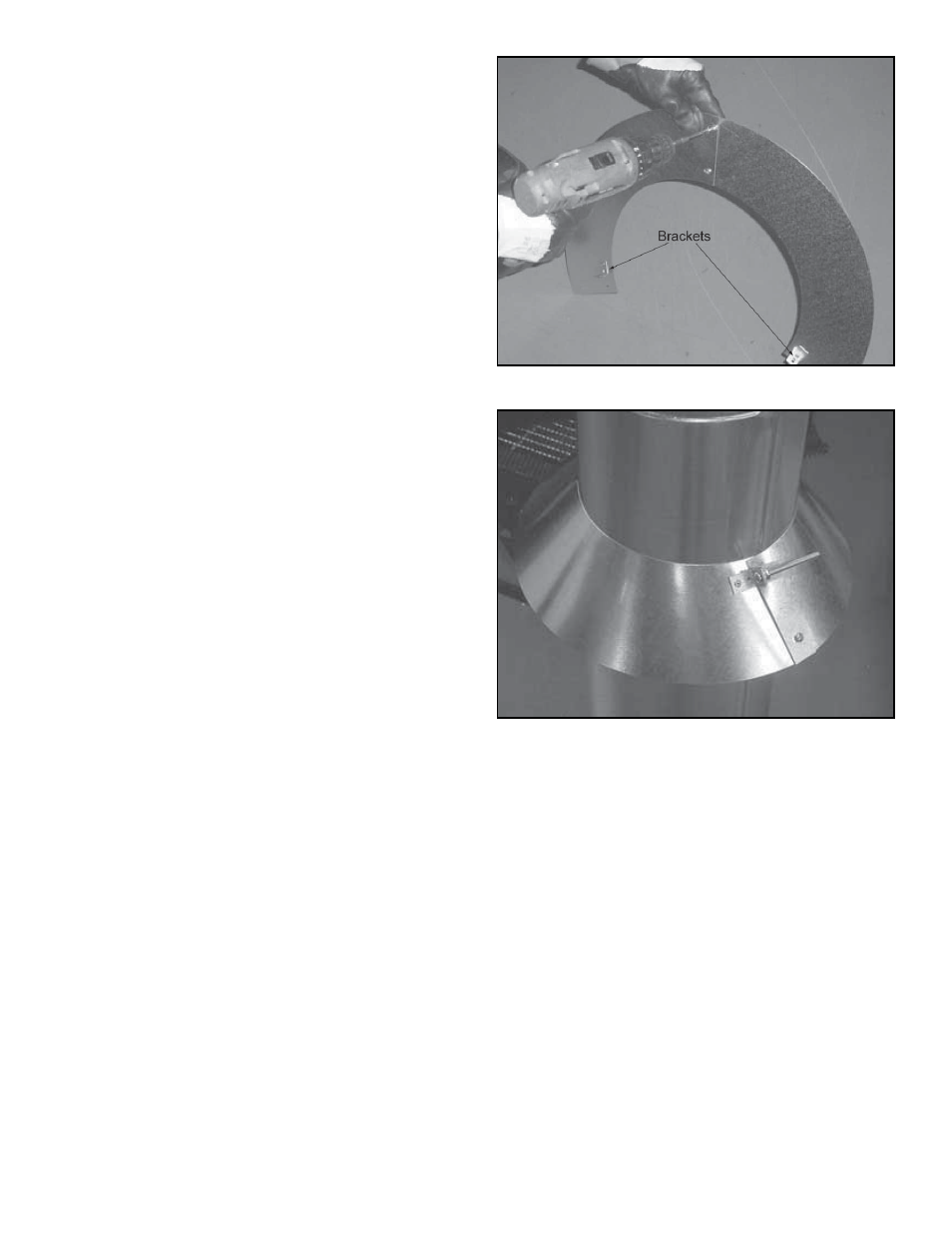

Figure 10.13 Assembling the Storm Collar

Figure 10.14 Assembling the Storm Collar Around the Pipe
