Home Dynamix ANEXX A - Manual (Page 118)

4 Ports 11g Wireless ADSL2/2+ Router 111
4.4.14 ADVANCED – Access Control
Access control allows you to open the access from the Internet (WAN) or LAN to the following management
ports of the 4 Ports 11g Wireless ADSL2/2+ Router:
„ Telnet
„ Web
„ FTP
„ TFTP
„ Secure Shell (SSH)
„ SNMP

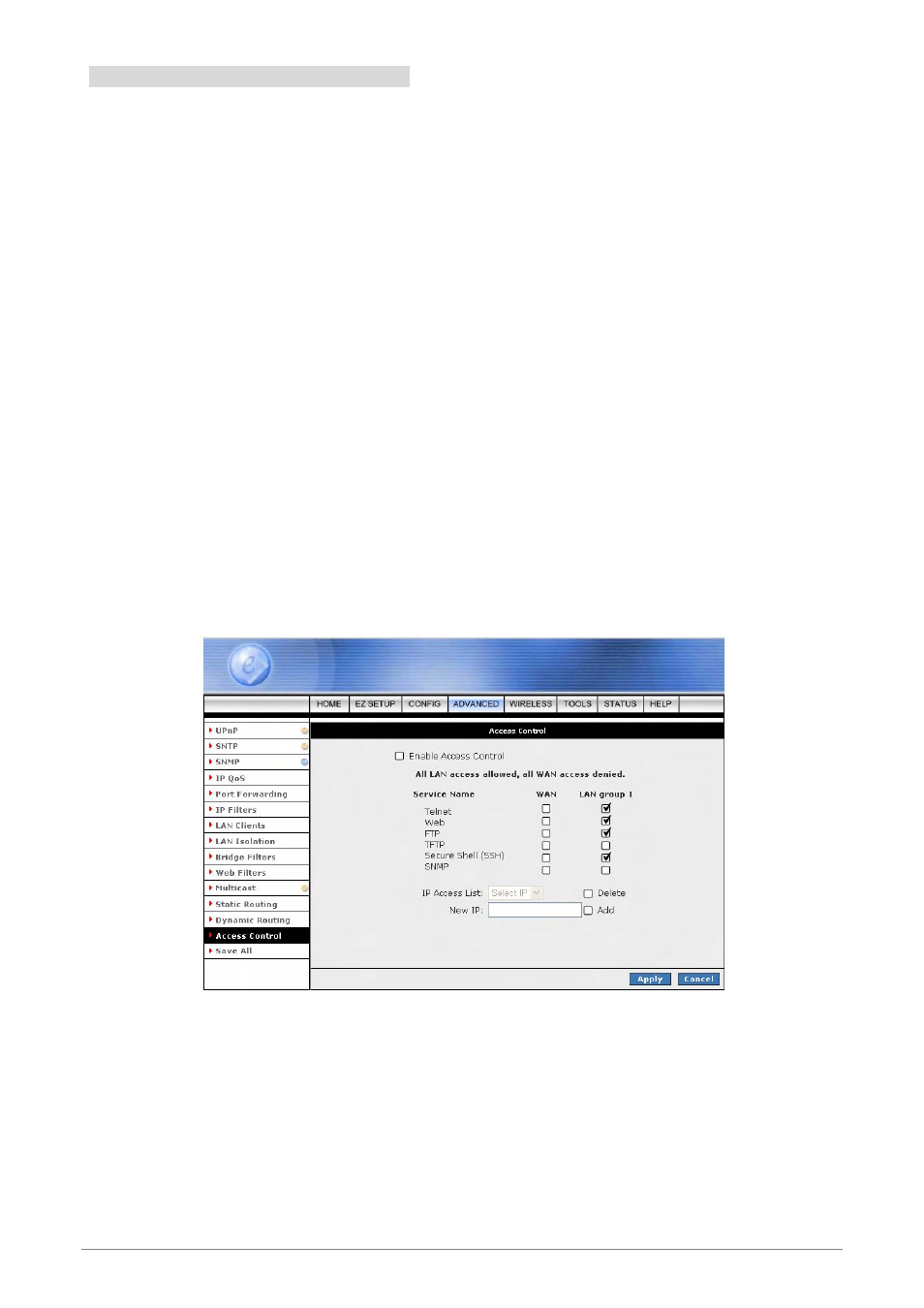

Figure below illustrates the default Access Control screen. The Access Control is disabled by default, remote
management from the WAN side IP addresses is denied, most services from the LAN side IP addresses are
enabled.
Access Control, when enabled, supports up to 16 IP addresses with controlled (allow/deny) WAN and/or LAN
access.
„ Enable Access Control: Check this box to enable selective access from the WAN to your LAN for
applications of the class indicated by the relevant check boxes. If Access Control is not enabled,
the individual check boxes cannot be checked.
The default configuration enables Telnet, Web, FTP and SSH access from LAN to WAN. If Access
Control is enabled, and an enable WAN checkbox is selected, then the WAN access to the
matching service is enabled.
