Scale Parameter
You can magnify or reduce image size using the Scale Parameter.
Default DMX Value: 128 (50%) = Normal Scale
The Scale parameter adjusts the size of the image up to approximately 10x its original size. At a
DMX value of zero, the image expands to the maximum size. At the midpoint of the DMX value
range, the image is normal size. When the DMX value is increased from the midpoint, the image
is reduced to its minimum size at a value of 255 (100%).
Note: At some scales, no image may be produced

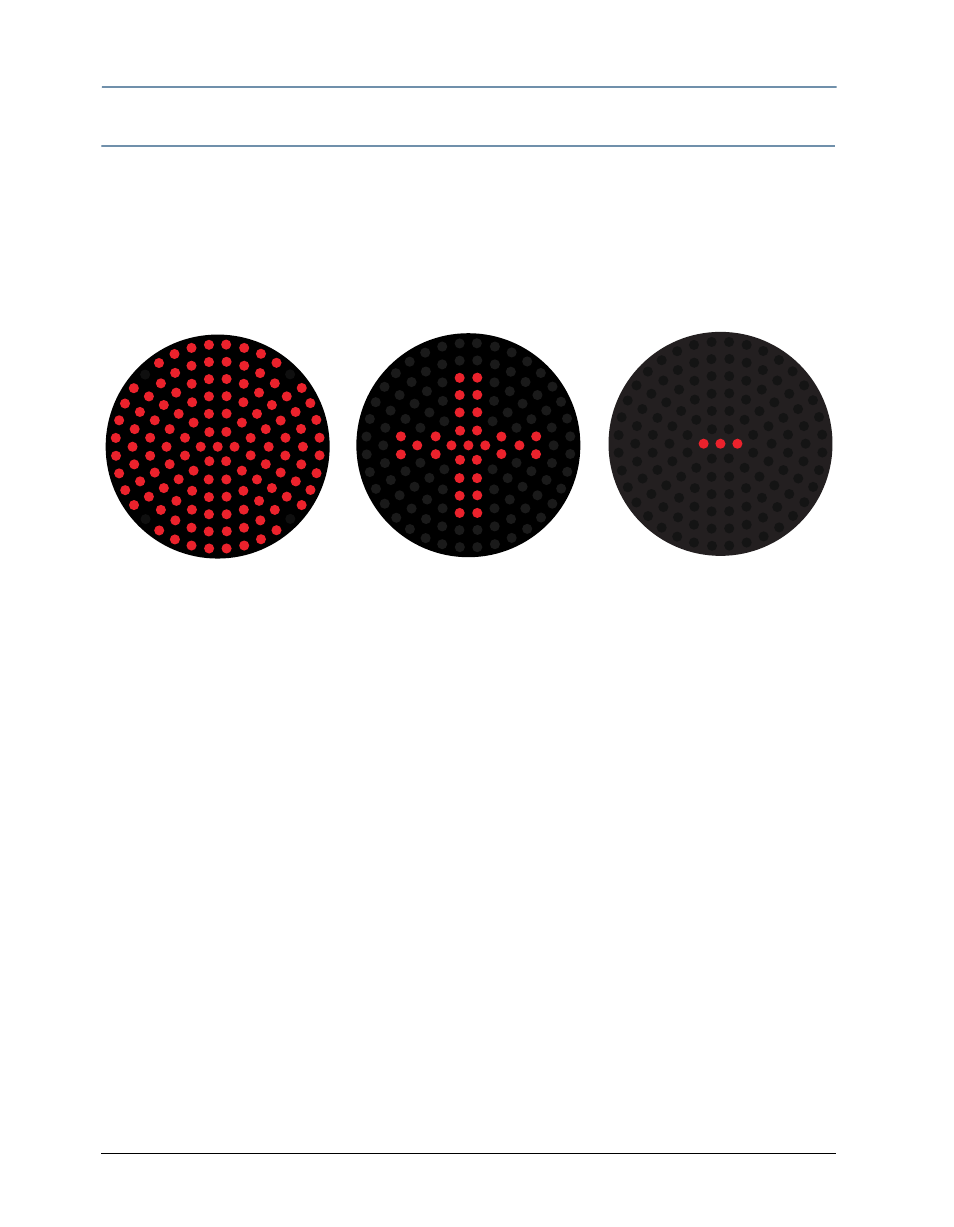

Scale DMX = 65 (25%) Scale DMX = 127 (50%) Scale DMX = 255 (100%)
