StudioPix™ Pixelation Luminaire User Manual 15
Chapter 3
The Menu System
You can use the fixture’s onboard menu system to configure and test the
StudioPix fixture.
The onboard StudioPix menu system allows you to:
• Assign a DMX start channel.
• Access fixture options such as homing the fixture, viewing fixture status, and performing
self tests.
• View all DMX values on the link.
Navigating the Menu System

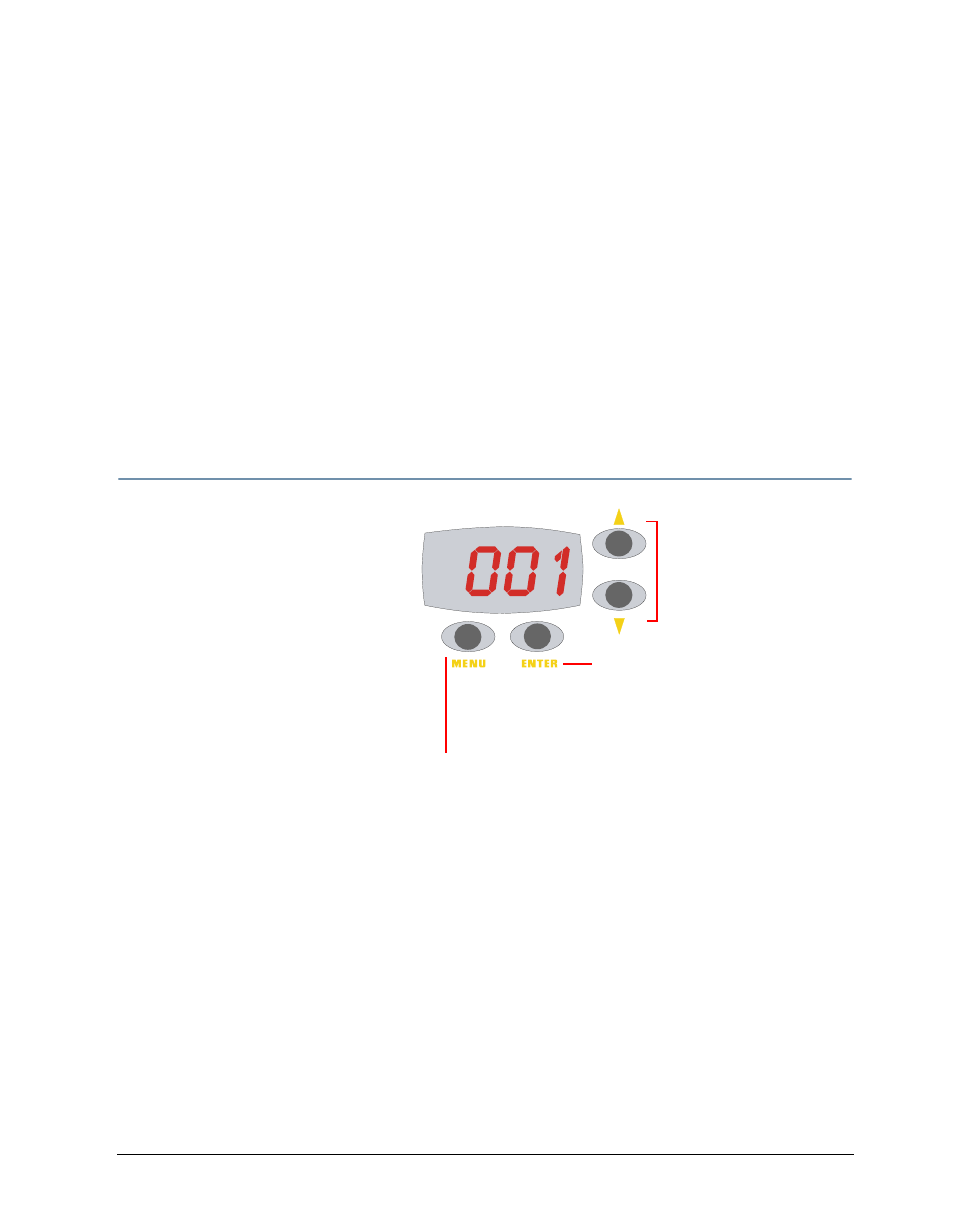

Access the menu system via the four
menu navigation buttons on the
fixture’s front panel.
The alphanumeric LED display shows
the menu items you select from the
menu map. When accessing fixture
options, the display will flash when a
new option is selected (by pressing
the or <Down> arrow buttons)
and stops flashing when a new option
is stored (by pressing the <Enter>
button).
To access the menu system: press and hold the
To return to the previous option or menu without changing the value: press the
<Menu> button.
Use and
arrow buttons to scroll
through menus
and options
Use the
Use the button to select
and store a menu or option
