Settings for monitoring through headphones
1. Start up the OCTA-CAPTURE control panel (p . 43) .

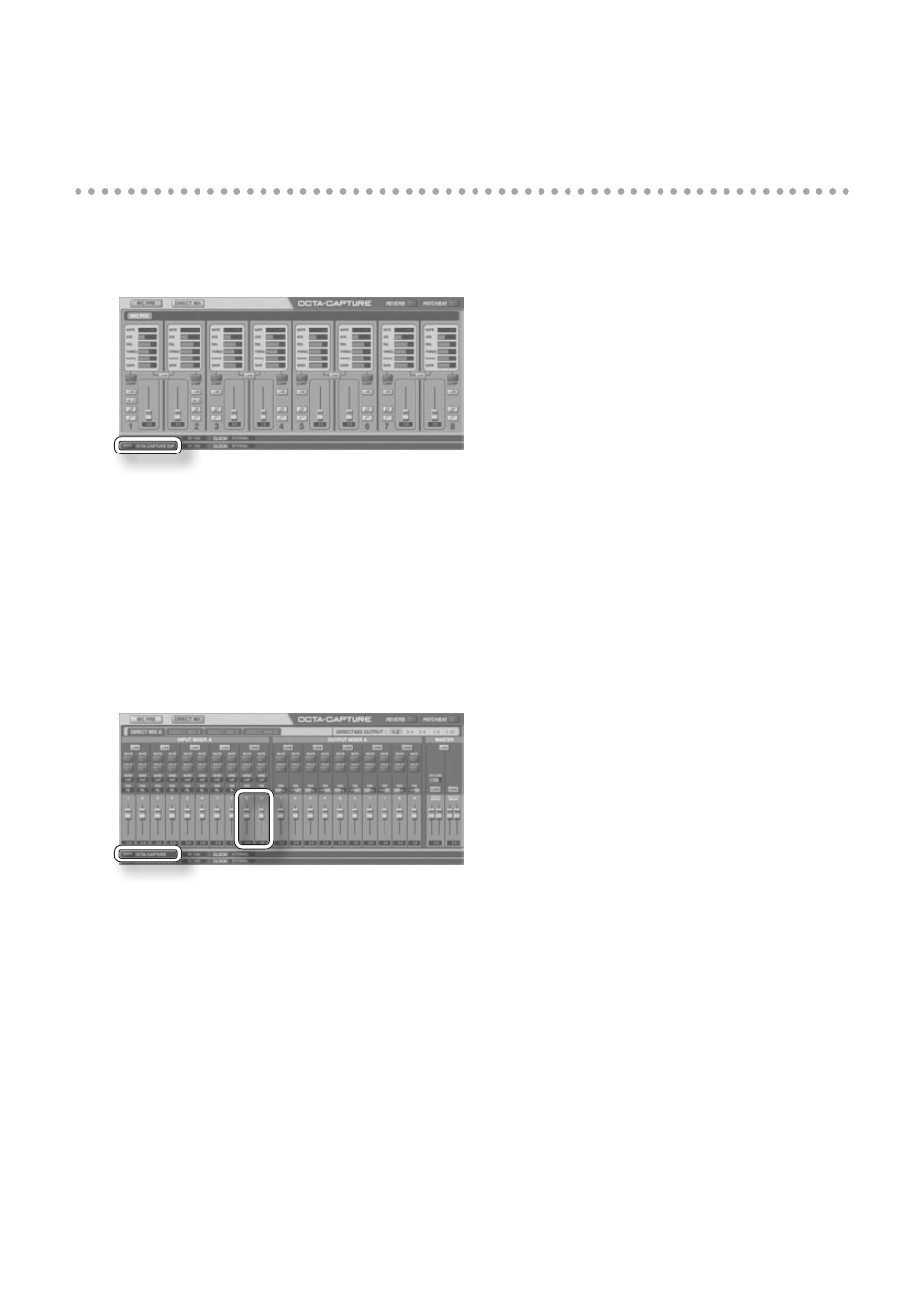

2. In the lower left of the OCTA-CAPTURE EDITOR screen, click the [OCTA-CAPTURE EXP]
button .
The state of the second OCTA-CAPTURE unit will be shown.
3. In the upper right of the screen, click the [PATCHBAY] button .
The patch bay screen will appear.
4. In the OUTPUT 9–10 field, choose “DIRECT MIX A .”
5. Click the [Close] button to close the screen .
6. In the lower left of the OCTA-CAPTURE EDITOR screen, click the [OCTA-CAPTURE]
button .
The state of the first OCTA-CAPTURE unit will be shown.
7. Switch to the direct mixer control screen, and check to make sure that the sliders for
channels 9-10 of INPUT MIXER A are sufficiently raised .
8. In order to monitor in stereo, set the channel 9 PAN to far left (100%L) and the channel
10 PAN to far right (100%R) .
9. In the upper right of the screen, click the [PATCHBAY] button .
The patch bay screen will appear.
10. Make sure that “DIRECT MIX A” is selected in the OUTPUT 1–2 field .
If something else is selected, change it to “DIRECT MIX A.”
All input signals of the second OCTA-CAPTURE unit will be output from the PHONES jack of the first
unit.
